Product Info
- Manufacturer:Eaton
- Sub-Category:Medium Voltage
Description
225-007-952

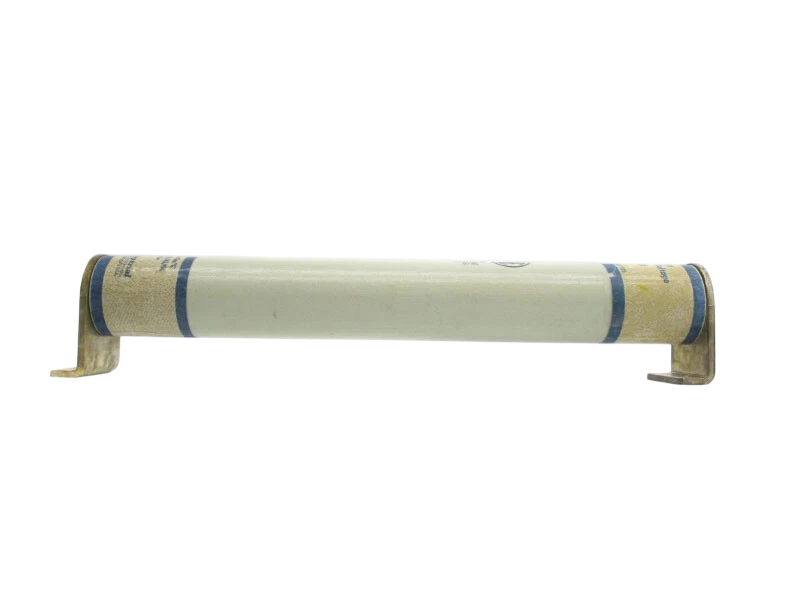

225-007-952 is an E-rated medium voltage current-limiting fuse designed for transformer and feeder protection applications. This fuse features a filament wound, glass epoxy tube construction with silica filler and silver-plated copper terminals, providing reliable performance in demanding electrical systems. The ECL055 series offers clip-lock and bolt-in style mounting options with double and triple barrel fuse designs for application flexibility.
- Voltage Rating: 5.5kV
- Amperage: 400A
- Interrupt Rating: 50kA Symmetrical
- Construction: Filament wound glass epoxy fuse tube with silica filler
- Terminals: Silver-plated copper with silver element in double concentric helical configuration
- Mounting Style: Clip-lock and bolt-in available
- Barrel Configuration: Double and triple barrel designs
- Open Fuse Indication: 16mm indicator travel distance
- Operating Frequency: 50/60 Hz
- Agency Compliance: Meets E requirements per ANSI C37.46 and full range requirements per ANSI C37.40
Specifications
- Part Number: 225-007-952
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Fuse
- Item Subcategory : Medium Voltage
- Family : Amp-Trap
- Voltage : 5500
- Amperage : 400
- AIC rating : [email protected]
- Connection : Clip-Lock
- Diameter : 3
- Class Rating : E
- Barrels : 1
- Clip Center : 21.25
Product Data
- Weight : 16
