Product Info
- Manufacturer:Eaton
- Sub-Category:Medium Voltage
Description
225-007-949

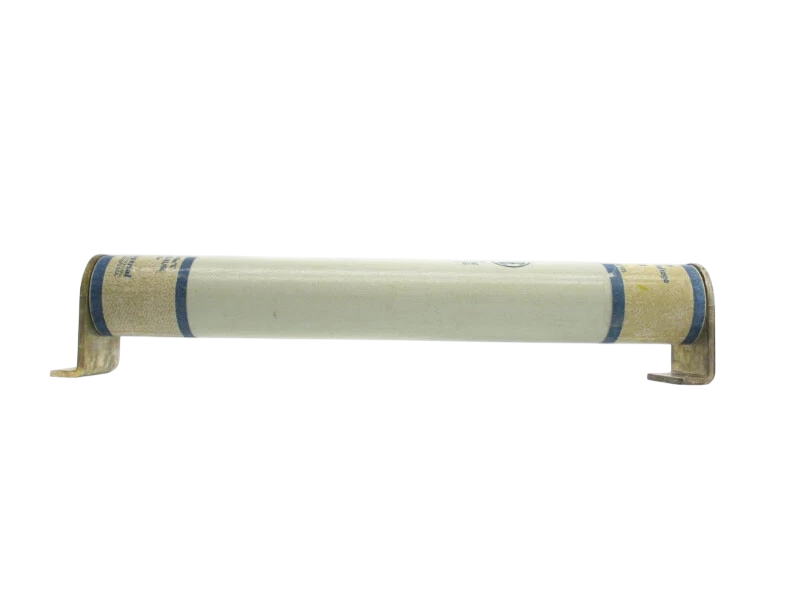

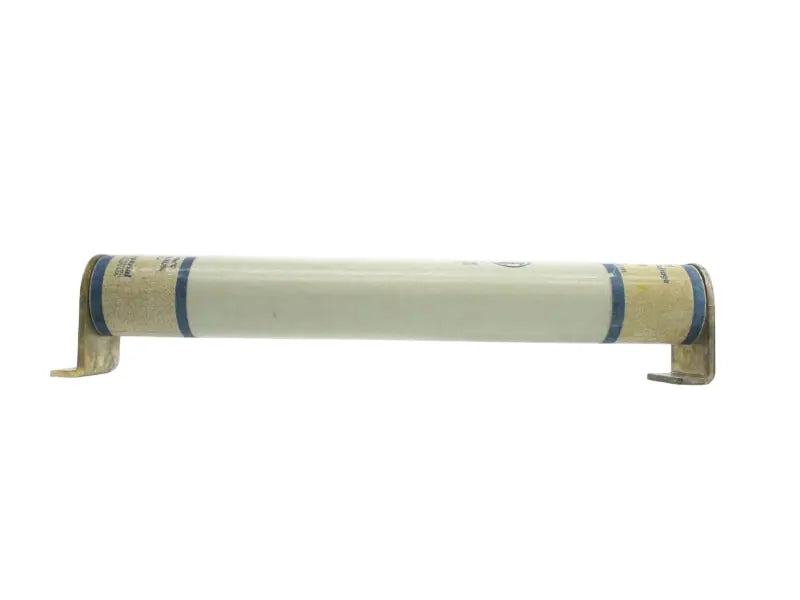

225-007-949 is an Eaton Amp-Trap Medium Voltage Fuse designed for reliable transformer and feeder protection in industrial and commercial power systems. This fuse features a 5.5kV voltage rating and 200A current rating, making it suitable for a wide range of medium voltage applications.Engineered with a durable filament wound glass epoxy fuse tube and silver-plated copper terminals, the 225-007-949 offers robust performance and long service life. The fuse is E-rated and features a clip-lock mounting style with a 1 barrel design. It provides clear open fuse indication with an indicator travel distance of 16mm and is compatible with standard medium voltage fuse holders.
- Part Number: 225-007-949
- Manufacturer: Eaton
- Series: Amp-Trap
- Rated Voltage: 5.5kV
- Rated Current: 200A
- Interrupt Rating: 50kA
- Mounting Type: Clip-Lock
- Barrel Type: 1 Barrel
- Agency Certification: E-Rated, ANSI C37.46, ANSI C37.40
- Construction: Filament wound glass epoxy tube, silver-plated copper terminals
- Open Fuse Indication: Yes, 16mm indicator travel
- Operating Frequency: 50/60 Hz
Specifications
- Part Number: 225-007-949
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Fuse
- Item Subcategory : Medium Voltage
- Family : Amp-Trap
- Voltage : 5500
- Amperage : 200
- AIC rating : [email protected]
- Connection : Clip-Lock
- Diameter : 3
- Class Rating : E
- Barrels : 1
- Clip Center : 21.25
Product Data
- Weight : 16
