Product Info
- Manufacturer:Eaton
- Sub-Category:Medium Voltage
Description
225-007-946

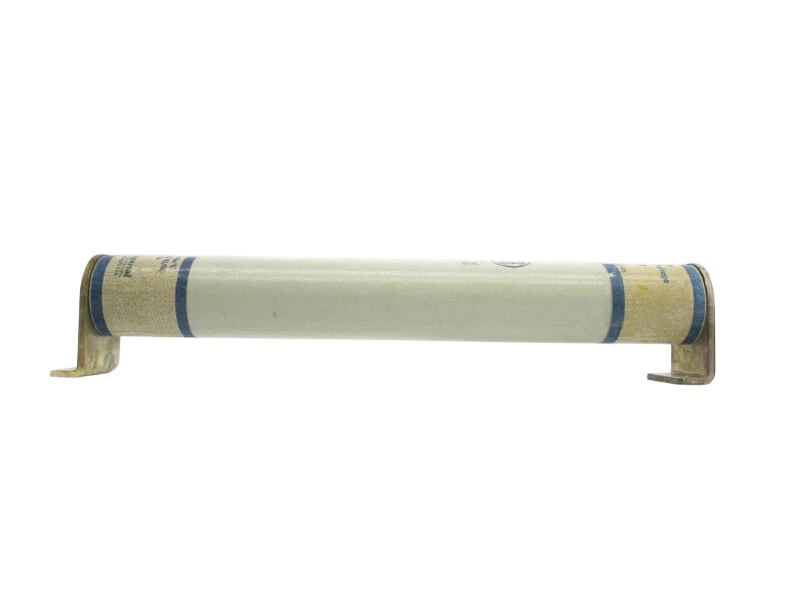

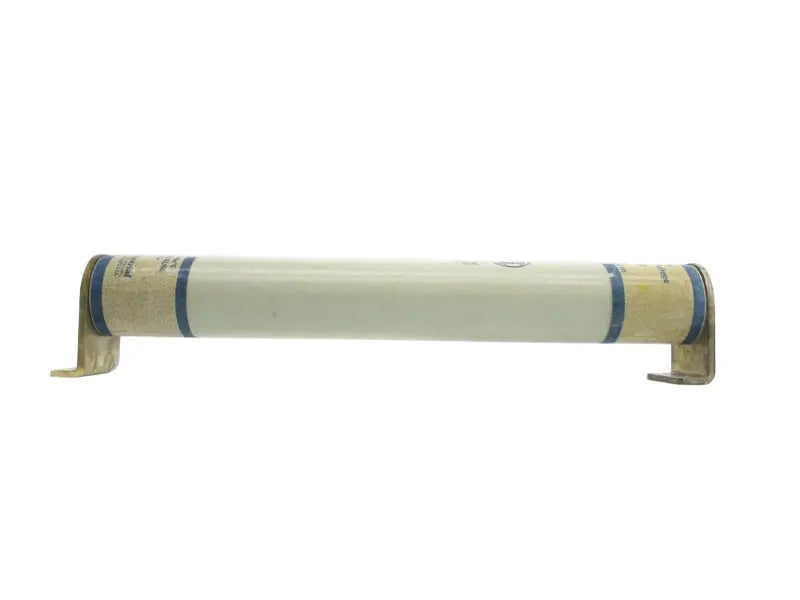

225-007-946 is an Eaton CL-14 series 100 ampere, 5.5 kV current limiting medium voltage fuse designed for transformer and feeder protection.225-007-946 features a filament wound, glass epoxy fuse tube construction with silica filler and silver-plated copper terminals and endcaps containing a silver element in a double concentric helical configuration. It provides open fuse indication with an indicator travel distance of 16mm for easy troubleshooting and is suitable for both indoor and outdoor applications due to its UV and moisture protection.
- Amperage: 100A
- Voltage Rating: 5.5 kV
- Interrupt Rating: 63kA Symmetrical Maximum
- Fuse Type: Current Limiting
- Series: CL-14 / ECL055
- Construction: Filament wound glass epoxy tube with silica filler
- Open Fuse Indication: Yes, 16mm indicator travel
- Application: Transformer and feeder protection
- Mounting: Clip-lock and bolt-in style available
- Agency Certifications: Meets ANSI C37.46 and ANSI C37.40 requirements
Specifications
- Part Number: 225-007-946
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Fuse
- Item Subcategory : Medium Voltage
- Family : Amp-Trap
- Voltage : 5500
- Amperage : 100
- AIC rating : [email protected]
- Connection : Clip-Lock
- Diameter : 3
- Class Rating : E
- Barrels : 1
- Clip Center : 15.25
Product Data
- Weight : 14
