Product Info
- Manufacturer:Eaton
- Sub-Category:Medium Voltage
Description
225-007-939

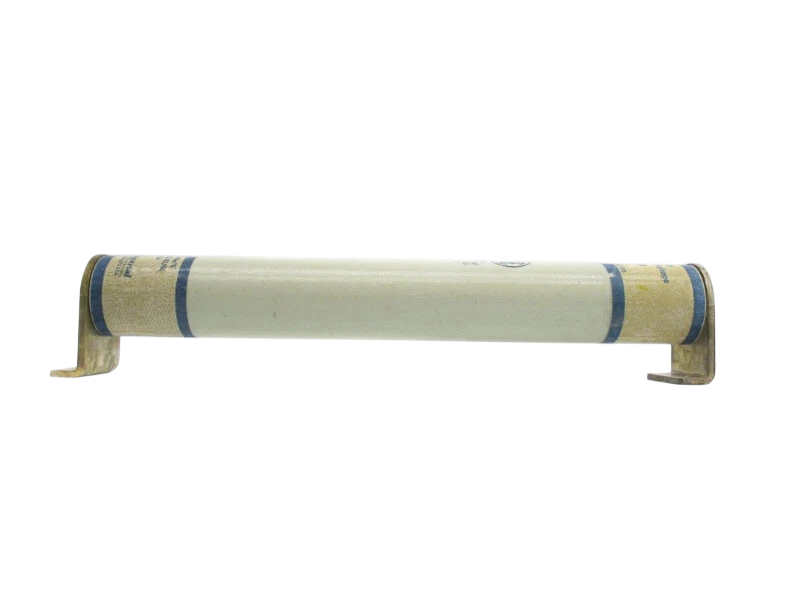

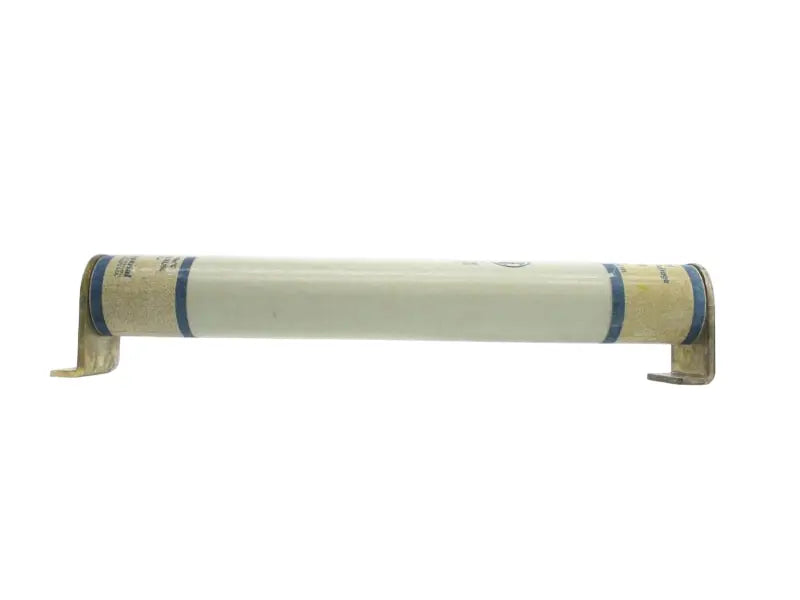

225-007-939 is a 20-ampere, 5.5kV E-rated medium voltage current-limiting fuse designed for transformer and feeder protection in power distribution systems. This clip-lock style fuse features a filament wound, glass epoxy fuse tube construction with silica filler and silver-plated copper terminals and endcaps containing a silver element in a double concentric helical configuration. The fuse provides reliable overcurrent protection with an interrupting rating of 50kA symmetrical maximum and meets ANSI C37.46 E-rated requirements and ANSI C37.40 full range requirements.
- Amperage Rating: 20A
- Voltage Rating: 5.5kV
- Interrupting Rating: 50kA Sym. Max
- Mounting Style: Clip-Lock
- Construction: Filament wound glass epoxy tube
- Terminals: Silver-plated copper with endcaps
- Agency Certification: ANSI C37.46 E-rated, ANSI C37.40
- Application: Transformer and feeder protection
Specifications
- Part Number: 225-007-939
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Fuse
- Item Subcategory : Medium Voltage
- Family : Amp-Trap
- Voltage : 5500
- Amperage : 20
- AIC rating : [email protected]
- Connection : Clip-Lock
- Diameter : 3
- Class Rating : E
- Barrels : 1
- Clip Center : 15.25
Product Data
- Weight : 14
