Product Info
- Manufacturer:Eaton
- Sub-Category:Medium Voltage
Description
225-007-938

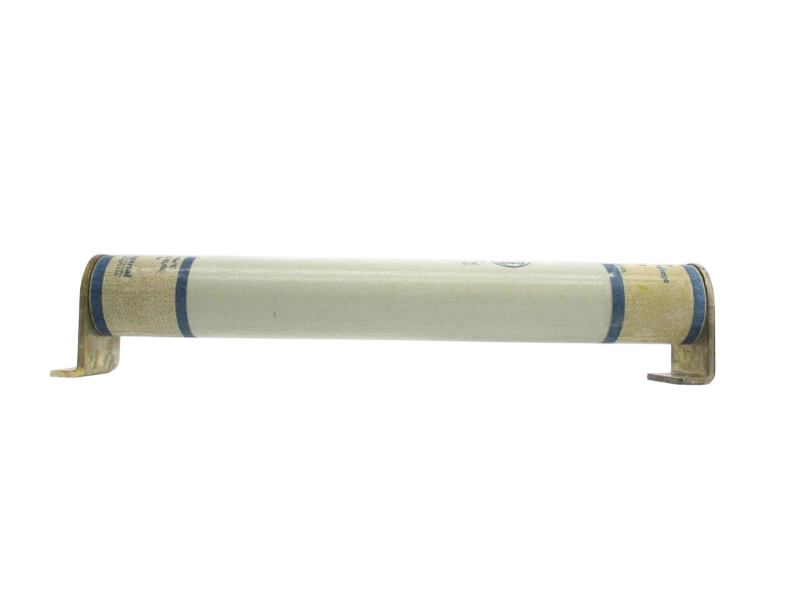

225-007-938 is an Eaton ECL055-20E E-rated medium voltage current-limiting fuse designed for transformer and feeder protection in electrical distribution systems. This fuse features a double barrel clip-lock design for secure installation and reliable operation. The ECL055-20E is constructed with a filament wound glass epoxy fuse tube, silica filler, and silver-plated copper terminals and endcaps. It provides full range protection with a visible open fuse indication for easy troubleshooting. The fuse is engineered for use in standard 12-inch clip center hardware, making it suitable for retrofitting in existing installations.
- Part Number: 225-007-938
- Manufacturer: Eaton
- Series: ECL055
- Amperage: 20A
- Voltage: 5.5kV
- Interrupting Rating: 50kA Sym. Max
- Mounting Type: Clip-lock, double barrel
- Agency Certification: Meets E requirements per ANSI C37.46
- Agency Certification: Meets General Purpose requirements per ANSI C37.40
- Construction: Filament wound glass epoxy tube, silica filler, silver-plated copper terminals
- Open Fuse Indication: Yes
- Application: Transformer and feeder protection
Specifications
- Part Number: 225-007-938
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Fuse
- Item Subcategory : Medium Voltage
- Family : Amp-Trap
- Voltage : 5500
- Amperage : 15
- AIC rating : [email protected]
- Connection : Clip-Lock
- Diameter : 3
- Class Rating : E
- Barrels : 1
- Clip Center : 15.25
Product Data
- Weight : 14
