Product Info
- Manufacturer:Mersen
- Sub-Category:Fuse Block
Description
21038

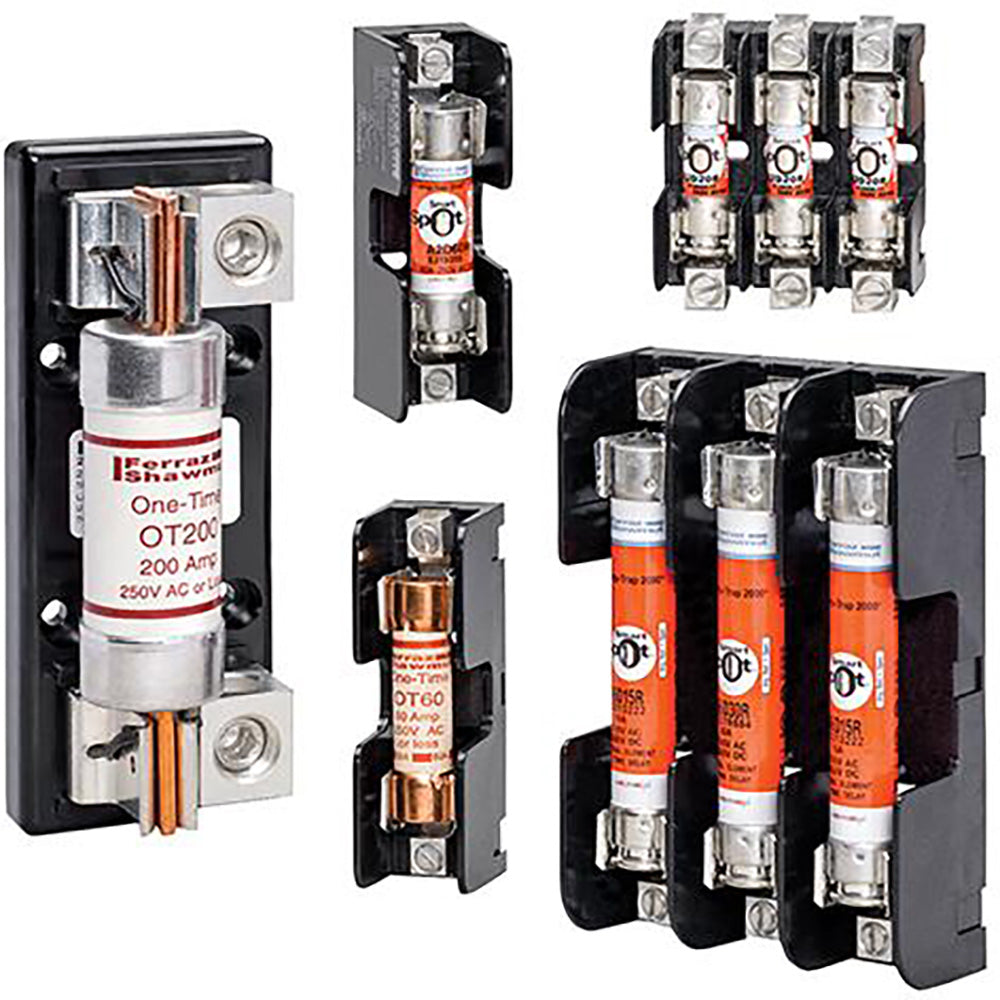

21038 is a Mersen Class H/K fuse block rated for 250VAC/250VDC at 100A with 3-pole configuration. This open style fuse holder accommodates Class H, K, and R fuses and features a molded glass-filled polycarbonate construction for durability and electrical performance. The unit is designed for industrial and commercial power distribution applications requiring reliable overcurrent protection.Technical Specifications: The 21038 delivers a 200 kA short circuit current rating and supports wire sizes from 6 AWG to 2/0 AWG. It features box lug connections with threaded mounting for secure installation. The fuse block measures 8.33 inches in length, 4.72 inches in width, and 2.28 inches in height, making it suitable for standard panel mounting configurations.
- Amperage Rating: 100A
- Voltage Rating: 250VAC/250VDC
- Number of Poles: 3
- Fuse Class: H, K, R
- Short Circuit Rating: 200 kA
- Wire Size Range: 6 AWG to 2/0 AWG
- Connection Type: Box Lug
- Mounting Type: Threaded
- Material: Glass-Filled Polycarbonate
- Style: Open
- Certifications: UL 4248-12, CSA C22.2, RoHS Compliant
Specifications
- Part Number: 21038
- Manufacturer : Mersen
- Brand : Mersen
- Category : Fuse
- Item Subcategory : Fuse Block
- Type : 210
- Amperage : 100
Product Data
- UPC : 7.82002E+11
- Country of Origin : Mexico
- Dimensions : 4.72 in x 8.33 in x 2.28 in
- Weight : 5
- Certification : CSA Certified, UL Listed
