Product Info
- Manufacturer:Mersen
- Sub-Category:Fuse Block
Description
21037

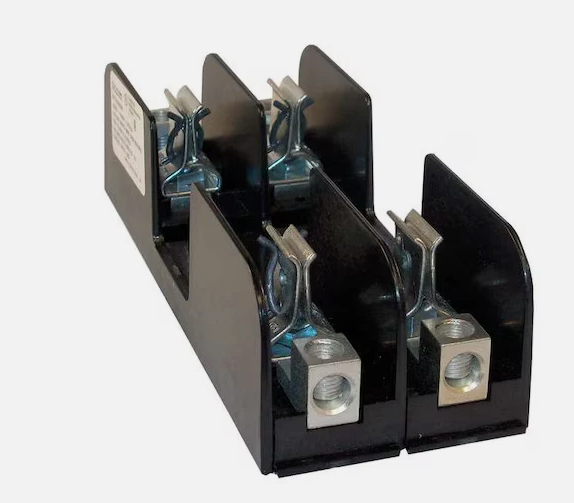

21037 is a Mersen 2 pole fuse block rated for 100 amps and 250 volts AC/DC, designed for Class H and K fuses.This fuse block features a spring reinforced design with box lugs suitable for aluminum and copper wiring from 2/0 to #6 AWG. It meets UL 4248 requirements and is UL listed (guide IZLT, file E52283) as well as CSA certified (class 6225, file 32169). The 21037 supports 50/60 Hz frequency and has a high interrupt rating suitable for industrial power distribution applications.
- Key Specifications
- Amperage: 100 Amps
- Voltage: 250 VAC / 250 VDC
- Poles: 2 Pole
- Fuse Class: UL Class H and K
- Mounting Type: Box Lug
- Wire Range: Aluminum/Copper 2/0 to #6 AWG
- Interrupt Rating: 50 kA
- Material: Molded Glass Filled Polycarbonate
- Certifications: UL Listed, CSA Certified
- Frequency: 50/60 Hz
- Part Number: 21037
- Manufacturer : Mersen
- Brand : Mersen
- Category : Fuse
- Item Subcategory : Fuse Block
- Type : 210
- Voltage : 250
- Amperage : 100
- Mounting : Box
- UPC : 782001664428
- Country of Origin : Mexico
- Dimensions : 3.20 in x 8.33 in x 2.28 in
- Weight : 1.25
- Certification : CSA Certified, UL Listed
