Product Info
- Manufacturer:Littelfuse
- Sub-Category:Medium Voltage Fuse
Description
20E1C2.75

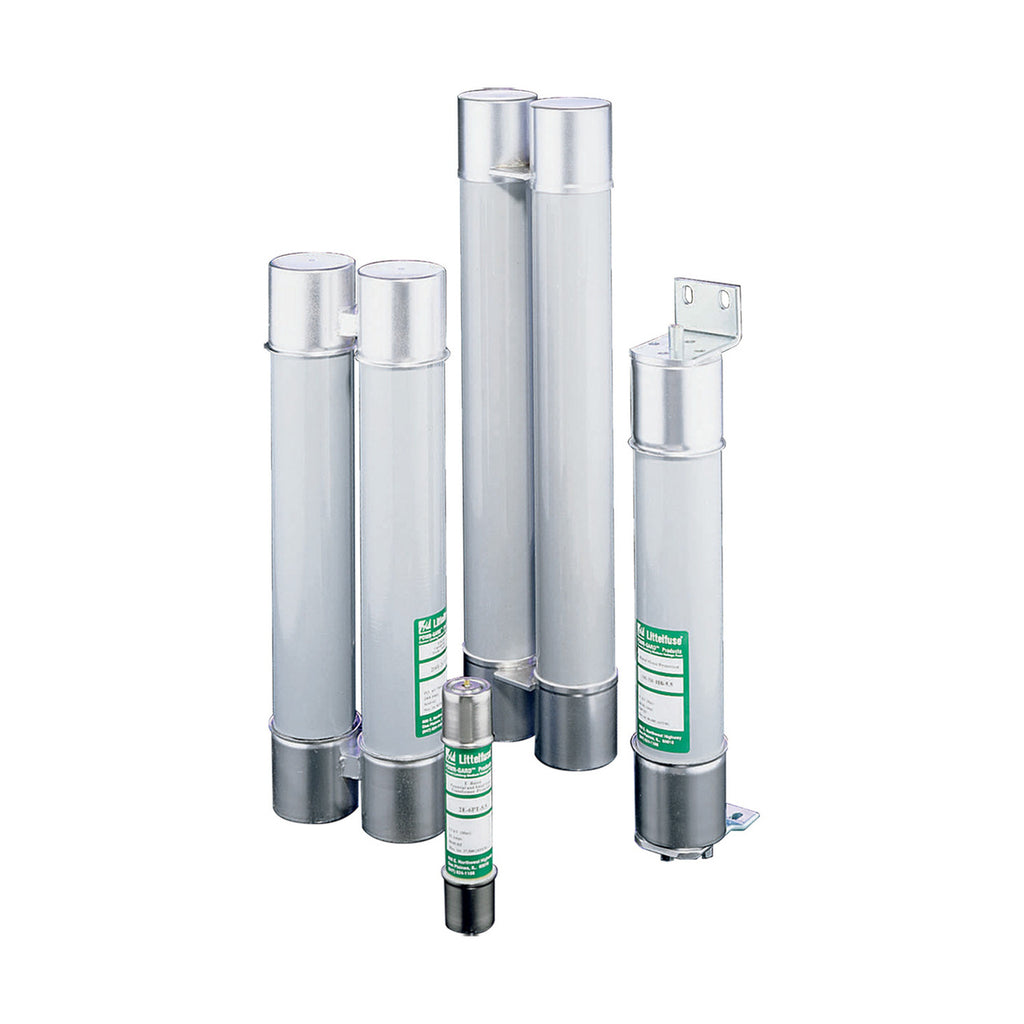

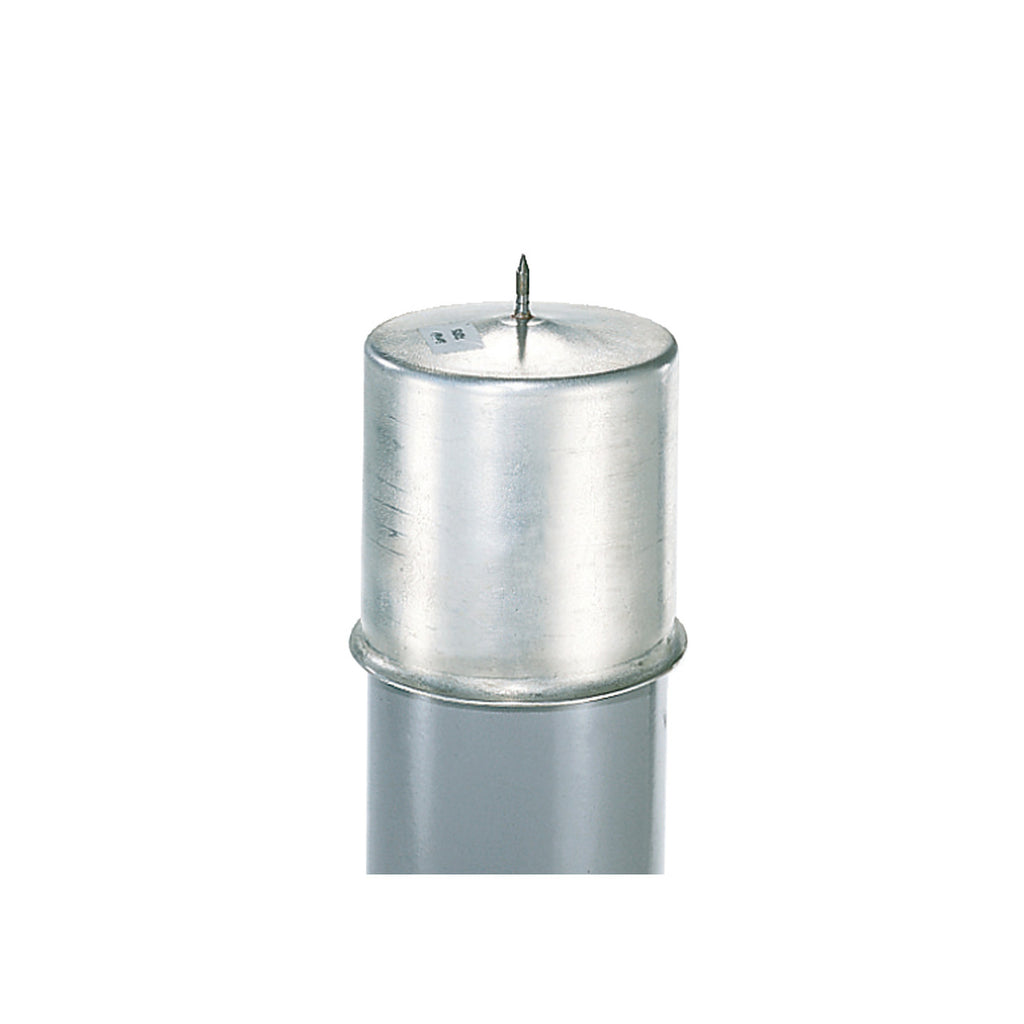

20E1C2.75 is a Littelfuse E-rated medium voltage fuse designed for current limiting protection in power distribution applications including transformers, potential transformers, power centers, and feeder centers. This cartridge-style fuse provides reliable overcurrent protection with time-current characteristics optimized for medium voltage systems. The fuse meets NEMA standards for E-rated medium voltage fuses and operates within specified time windows when subjected to fault currents. Key Specifications
- Part Number: 20E1C2.75
- Manufacturer: Littelfuse
- Series: E-Rated
- Amperage Rating: 20A
- Voltage Rating: 2750VAC (2.75kV)
- Interrupting Rating: 80000A RMS (Asymmetrical)
- Package Type: Cartridge, Non-Standard
- Application: Power transformers, potential transformers, power centers, feeder centers, unit substations
Specifications
- Part Number: 20E1C2.75
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Medium Voltage Fuse
- Family : E Rated
- Type : E Rated
- Voltage : 2750
- Amperage : 20
- AIC rating : [email protected]
- Diameter : 3
- Class Rating : E
- Barrels : 1
- Clip Center : 7
Product Data
- UPC : 079458040609
- GTIN : 00079458040609
- Weight : 7
