2090-XXNFMF-S30 Allen-Bradley Kinetix 2090 Motor Feedback Cable, 30m, Threaded DIN to Flying Leads

2090-XXNFMF-S30

2090-XXNFMF-S30 Allen-Bradley Kinetix 2090 Motor Feedback Cable, 30m, Threaded DIN to Flying Leads

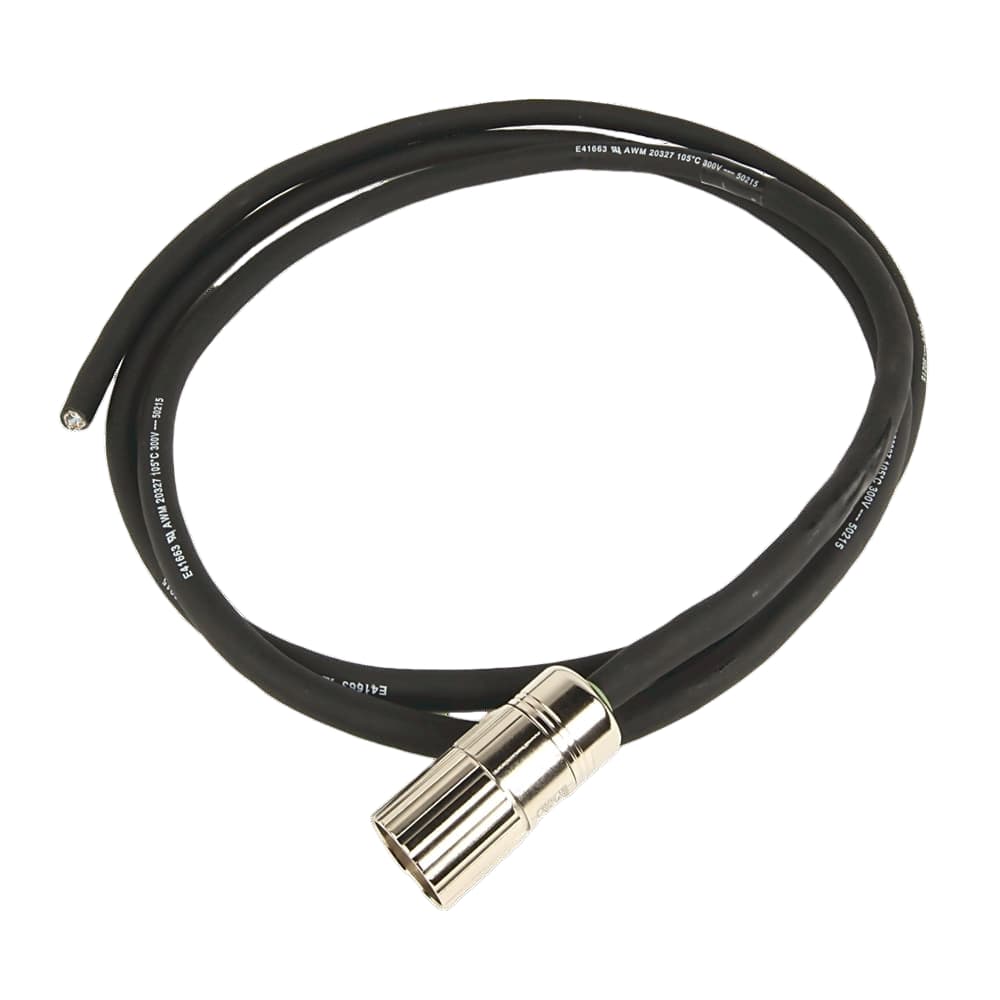

The 2090-XXNFMF-S30 is a standard (non-flex) Kinetix 2090 motor feedback cable with a threaded DIN (M4) connector at the motor end and flying leads at the drive end, supplied in a 30 m (98.4 ft) length. At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time. This cable is built for high-resolution or incremental encoder feedback applications and is part of Rockwell Automation's Kinetix Motion Accessories line, published under technical data KNX-TD004.

The M4 threaded DIN motor connector mates with both threaded DIN and SpeedTec-ready DIN motor connectors (an O-ring is required for the M4 connection), making this cable compatible with a broad range of Allen-Bradley servo motors and actuators. The flying-lead drive end requires a breakout component or connector kit for termination at the drive.

Common Applications

• Feedback wiring between Kinetix servo drives and Allen-Bradley servo motors or actuators
• High-resolution digital encoder feedback circuits
• Incremental encoder feedback circuits
• New installations and cable replacements on Kinetix-based motion control systems

Key Features

• Standard, non-flex construction: Designed for static installation routing, not continuous-flex applications.
• Threaded DIN (M4) motor connector: Attaches with 5 to 6 turns and mates only M4 cable plugs.
• Universal motor-connector compatibility: M4 cable plugs are also accepted by SpeedTec-ready DIN (M7) motor connectors.
• Flying-lead drive end: Bare-lead termination for use with a breakout connector kit at the drive.
• 30 m length: Supplied in a single 30 m (98.4 ft) run, eliminating the need for a field splice on longer machine layouts.

Specifications

• Catalog Number: 2090-XXNFMF-S30
• Manufacturer: Allen-Bradley (Rockwell Automation)
• Product Family: Kinetix 2090
• Cable Type: Standard, non-flex motor feedback cable
• Motor-end Connector: Threaded DIN, Type 4 (M4)
• Drive-end Termination: Flying leads
• Cable Length: 30 m (98.4 ft)
• Feedback Type: High-resolution or incremental encoder

Product Identification

• UPC: 820919134074

FAQ

What is the 2090-XXNFMF-S30 used for?
It is a Kinetix 2090 motor feedback cable that carries encoder signals between an Allen-Bradley servo motor or actuator and a Kinetix servo drive.

What connector does the 2090-XXNFMF-S30 have on the motor end?
A threaded DIN (M4) connector that attaches with 5 to 6 turns and mates only M4 cable plugs.

Is the 2090-XXNFMF-S30 compatible with SpeedTec-ready DIN motor connectors?
Yes. SpeedTec-ready DIN (M7) motor connectors accept M4 cable plugs, so this cable works with either connector type, with an O-ring required for the M4 connection.

Does the 2090-XXNFMF-S30 require a connector kit at the drive?
Yes. The flying-lead drive end requires a breakout component or connector kit for termination at the servo drive.

Is the 2090-XXNFMF-S30 rated for continuous-flex applications?
No. It is a standard, non-flex cable intended for static installation routing, not repeated flexing.

How long is the 2090-XXNFMF-S30?
It is supplied in a 30 m (98.4 ft) length.

Specifications

• Part Number: 2090-XXNFMF-S30

Product Data

• UPC : 820919134074
• Weight : 12.25 lb
