Product Info
- Manufacturer:Mersen
- Sub-Category:Fuse Block
Description
20606

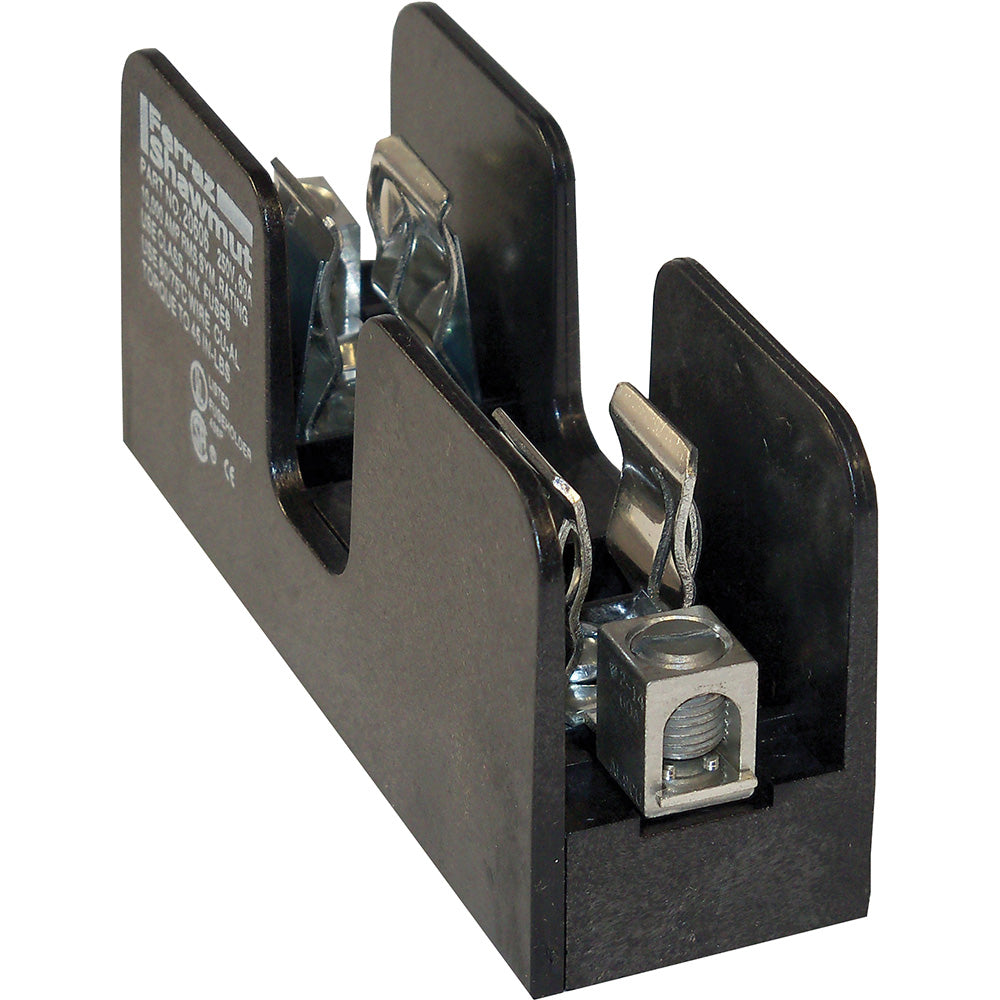

20606 is a Mersen 60 Amp, 250 Volt AC, 1-pole fuse block designed for Class H and K fuses with box lug connections.This fuse block features a spring reinforced clip and accommodates wire sizes from 14 to 2 AWG for aluminum or copper conductors. It meets UL 4248 requirements and is UL listed (guide IZLT, file E52283), UL recognized component (guide IZLT2), and CSA certified (class 6225, file 32169). The block is constructed with molded glass-filled polycarbonate material and supports Class H, K, and R fuses at 250 VAC/VDC with a 60 Amp interrupt rating.
- Key Specifications
- Amperage: 60 Amps
- Voltage: 250 VAC/VDC
- Number of Poles: 1
- Fuse Classes: H, K, and R
- Mounting Type: Box lug connections
- Wire Size: 14 to 2 AWG (Aluminum/Copper)
- Interrupt Rating: Suitable for Class H/K fuses
- Material: Molded glass-filled polycarbonate
- Certifications: UL Listed, UL Recognized, CSA Certified
- Spring Reinforced Clip for secure fuse retention
- Part Number: 20606
- Manufacturer : Mersen
- Brand : Mersen
- Category : Fuse
- Item Subcategory : Fuse Block
- Type : 206
- Voltage : 250
- Amperage : 30
- UPC : 078200175010
- GTIN : 00782001750107
- Country of Origin : Mexico
- Dimensions : 1.46 in x 4-3/4 in x 2.12 in
- Weight : 0.25
- Certification : CSA Certified, UL Listed
