20605R - Mersen 60A 250V 1 Pole Class R Adder Fuse Block, UL/CSA, Barrier Mount, 200kA Interrupt, RK1/RK5 Series

20605R

20605R is a Mersen 60A, 250V, 1 pole adder fuse block designed for UL Class RK1 and RK5 fuses, offering reliable circuit protection in power distribution applications.

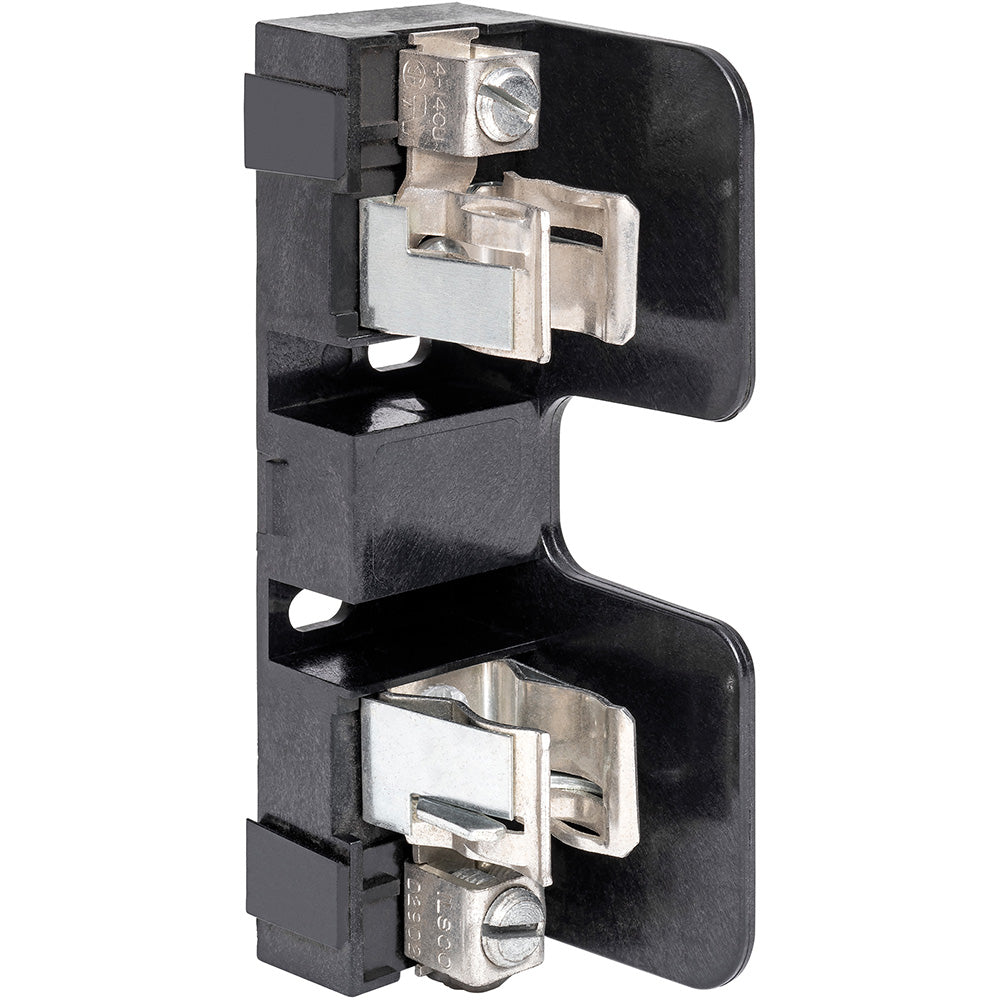

This barrier-type fuse block features a molded glass-filled polycarbonate construction, spring-reinforced clips for secure fuse retention, and accepts aluminum or copper conductors from #2 to 14 AWG. It is rated for both AC and DC applications up to 250V and meets rigorous safety and performance standards.

Key Specifications
• Amperage: 60A
• Voltage: 250V AC/DC
• Poles: 1 (Adder)
• Mounting Type: Barrier
• Interrupt Rating: 200,000 AIC RMS
• Series/Frame: Class R (RK1/RK5)
• Trip Unit: Not applicable (fuse block only)
• Certifications: UL listed (IZLT, File E52283), UL recognized component (IZLT2, File E52283), CSA certified (Class 6225, File 32169)
• Conductor Size: #2–14 AWG (Al/Cu)
• Material: Molded glass-filled polycarbonate
• Spring-reinforced clips
• Meets UL 4248 requirements

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: 20605R
• Manufacturer : Mersen
• Brand : Mersen
• Category : Fuse
• Item Subcategory : Fuse Block
• Type : 206
• Voltage : 250
• Amperage : 60

Product Data

• UPC : 78200175666
• GTIN : 00782001756666
• Weight : 5
