Product Info
- Manufacturer:Mersen
- Sub-Category:Fuse Block
Description
20356R

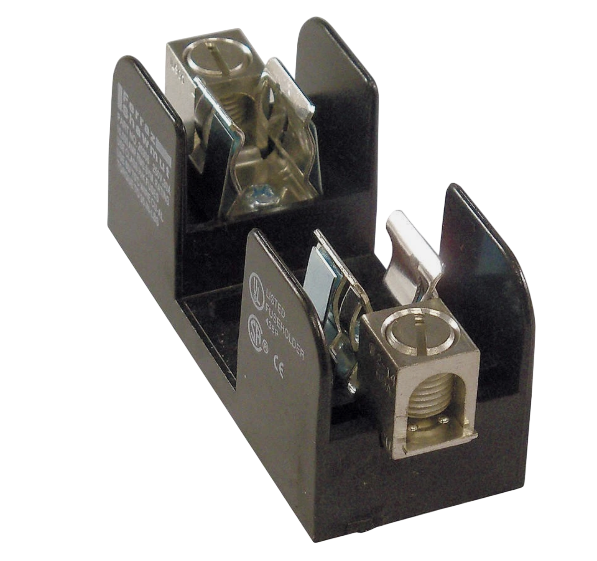

20356R is a 30 amp, 250 volt Class R fuse block designed for reliable fuse protection in electrical circuits.
This fuse block features a 1-pole configuration with direct screw mounting for secure installation. It supports both AC and DC applications and is constructed with high conductivity tin-plated copper fuse clips and molded glass-filled polycarbonate or phenolic insulators with dielectric strength exceeding 2500V. The fuse clips are spring reinforced for durability. It has a short circuit current rating (SCCR) of 200 kA and a torque rating of 35 lb-in, ensuring robust performance in demanding environments.
- Key Specifications
- Amperage Rating: 30 A
- Voltage Rating: 250 VAC/DC
- Fuse Class: Class R
- Number of Poles: 1
- Mounting Type: Direct Screw Mount
- Fuse Installation Method: Clip-in
- Short Circuit Current Rating (SCCR): 200 kA
- Torque Rating: 35 lb-in
- Material: Glass-filled polycarbonate or phenolic insulators
- Fuse Clips: Tin-plated copper, spring reinforced
- Frequency: 50/60 Hz
- RoHS Compliant: Yes
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: 20356R
- Manufacturer : Mersen
- Brand : Mersen
- Category : Fuse
- Item Subcategory : Fuse Block
- Type : 203
- Voltage : 250
- Amperage : 30
- Mounting : Box
Product Data
- UPC : 782001756697
- GTIN : 00782001756697
- Country of Origin : Mexico
- Dimensions : 1-1/4 in x 3 in x 1.38 in
- Weight : 0.14
- Certification : CSA Certified, UL Listed
