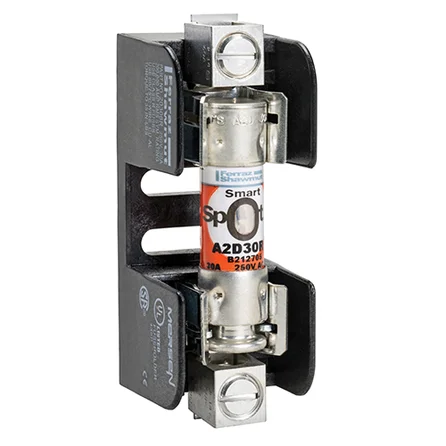

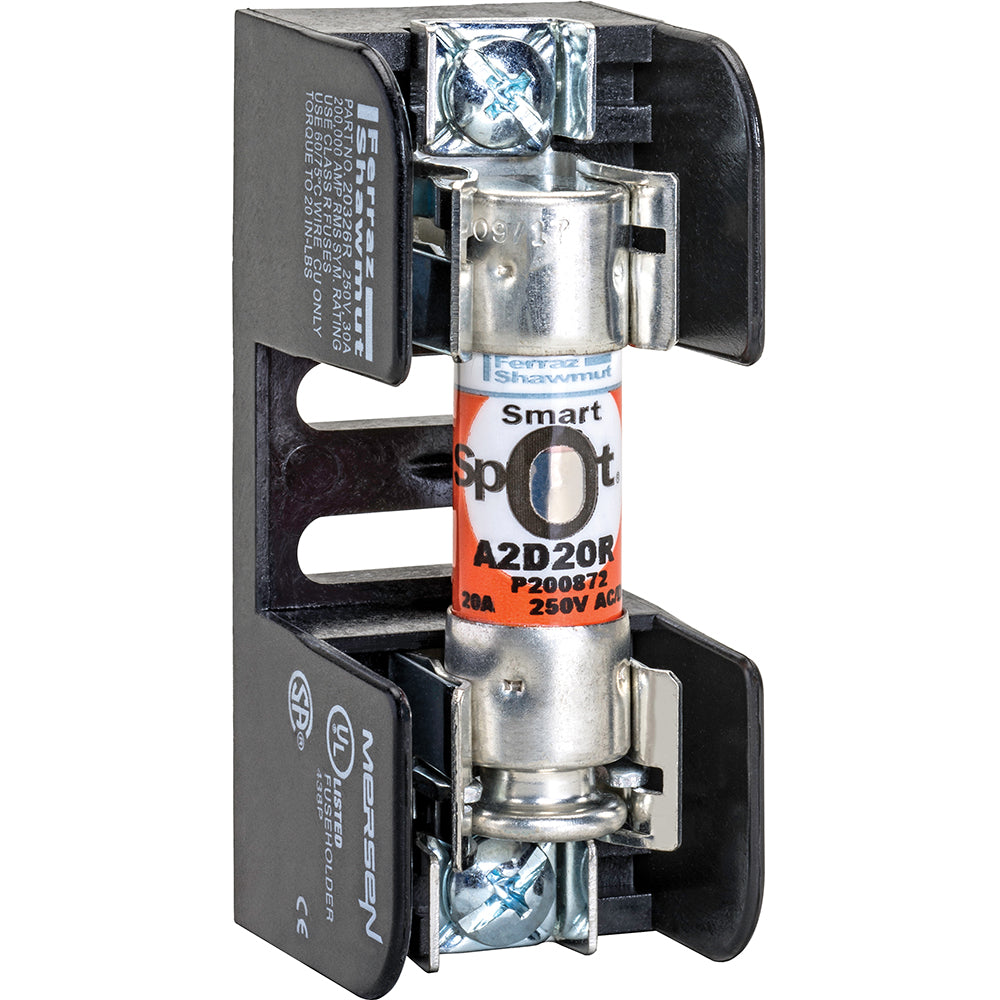

20326R - Mersen Class R Fuse Block 30A 250V 1-Pole Pressure Plate with Reinforced Clip

20326R

20326R is a Class R fuse block from Mersen rated for 30 amps and 250 volts AC/DC with a 1-pole pressure plate design and reinforced clip.This fuse block supports Class R fuses and features a clip-in installation method with direct screw mounting. It is constructed from glass-filled polycarbonate for durability and electrical insulation. The unit has a short circuit current rating of 200 kA and is suitable for both AC and DC applications up to 250 volts. The pressure plate connection accommodates copper wire sizes #10-14 AWG and ensures secure fuse retention.

Key Specifications
• Amperage Rating: 30 A
• Voltage Rating: 250 V AC/DC
• Number of Poles: 1
• Fuse Class: Class R
• Mounting Type: Direct Screw Mount
• Fuse Installation Method: Clip-in
• Interrupt Rating (SCCR): 200 kA
• Body Material: Glass Filled Polycarbonate
• Connection Type: Pressure Plate with Reinforced Clip
• Wire Size Compatibility: #10-14 AWG Copper
• Certifications: UL Listed, CSA Certified

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: 20326R
• Manufacturer : Mersen
• Brand : Mersen
• Category : Fuse
• Item Subcategory : Fuse Block
• Type : 203
• Amperage : 30

Product Data

• UPC : 78200175027
• GTIN : 00782001750275
• Country of Origin : Mexico
• Dimensions : 1-1/4 in x 3 in x 1.38 in
• Weight : 0.14 lb
• Certification : CSA Certified, UL Listed
