Product Info
- Manufacturer:Mersen
- Sub-Category:Fuse Block
Description
20311

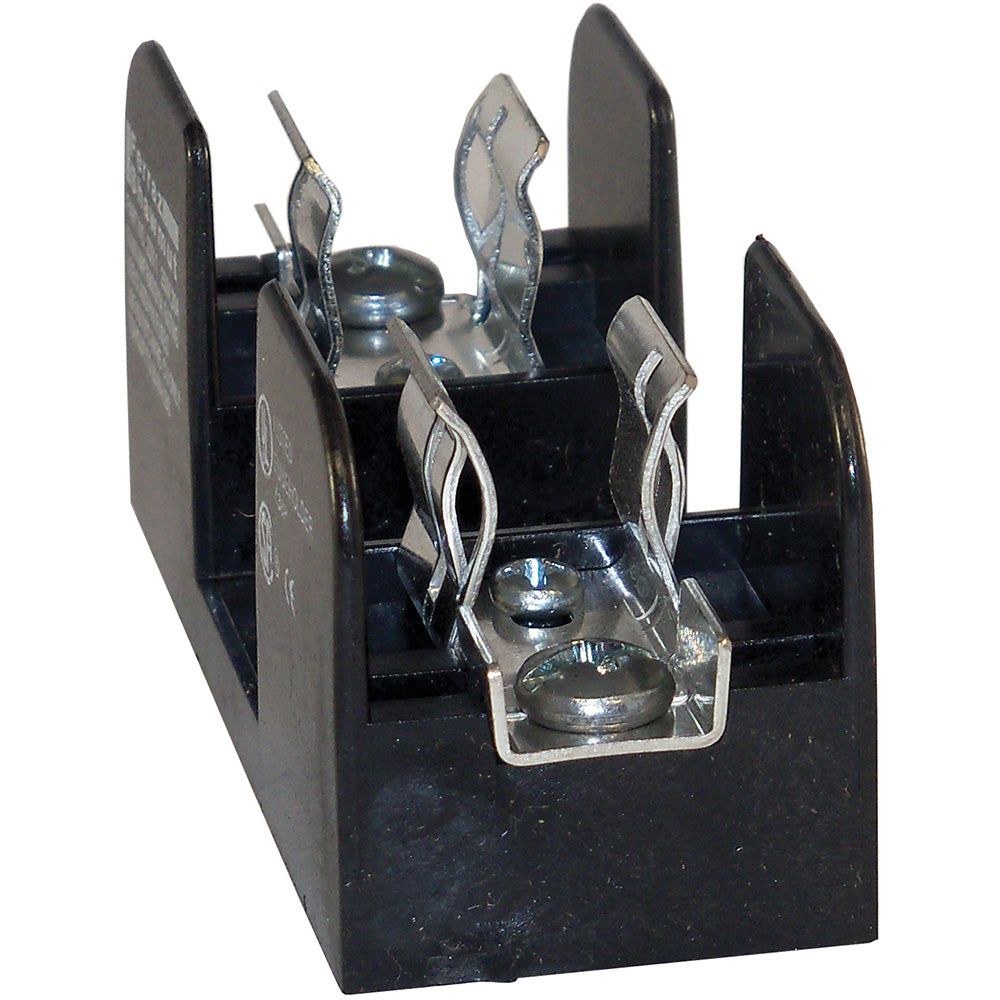

20311 is a Mersen Class H/K fuse block rated for 30 amps and 250 volts AC/DC with a single pole and screw terminal mounting.20311 fuse block features a molded glass-filled polycarbonate barrier construction designed for reliable fuse protection in industrial applications. It supports wire sizes from 14 to 10 AWG copper and includes a clip-in fuse installation method with tin-plated copper clips that are non-spring reinforced. This fuse block meets UL 4248 and CSA certification standards, ensuring safety and performance compliance.
- Key Specifications
- Amperage: 30 Amps
- Voltage Rating: 250 VAC / 250 VDC
- Number of Poles: 1
- Mounting Type: Screw Terminal
- Fuse Type: Class H and K
- Wire Size Compatibility: 14 to 10 AWG Copper
- Material: Molded Glass Filled Polycarbonate
- Clip Material: Tin Plated Copper
- Fuse Installation: Clip-in, Non-Spring Reinforced
- Certifications: UL 4248, CSA Certified
- Series: 20
Specifications
- Part Number: 20311
- Manufacturer : Mersen
- Brand : Mersen
- Category : Fuse
- Item Subcategory : Fuse Block
- Type : 203
- Voltage : 250
- Amperage : 30
- Mounting : Screw
Product Data
- UPC : 782001757496
- GTIN : 00782001757496
- Country of Origin : Mexico
- Dimensions : 1-1/4 in x 3 in x 1.38 in
- Weight : 0.14 lb
- Certification : CSA Certified, UL Listed
