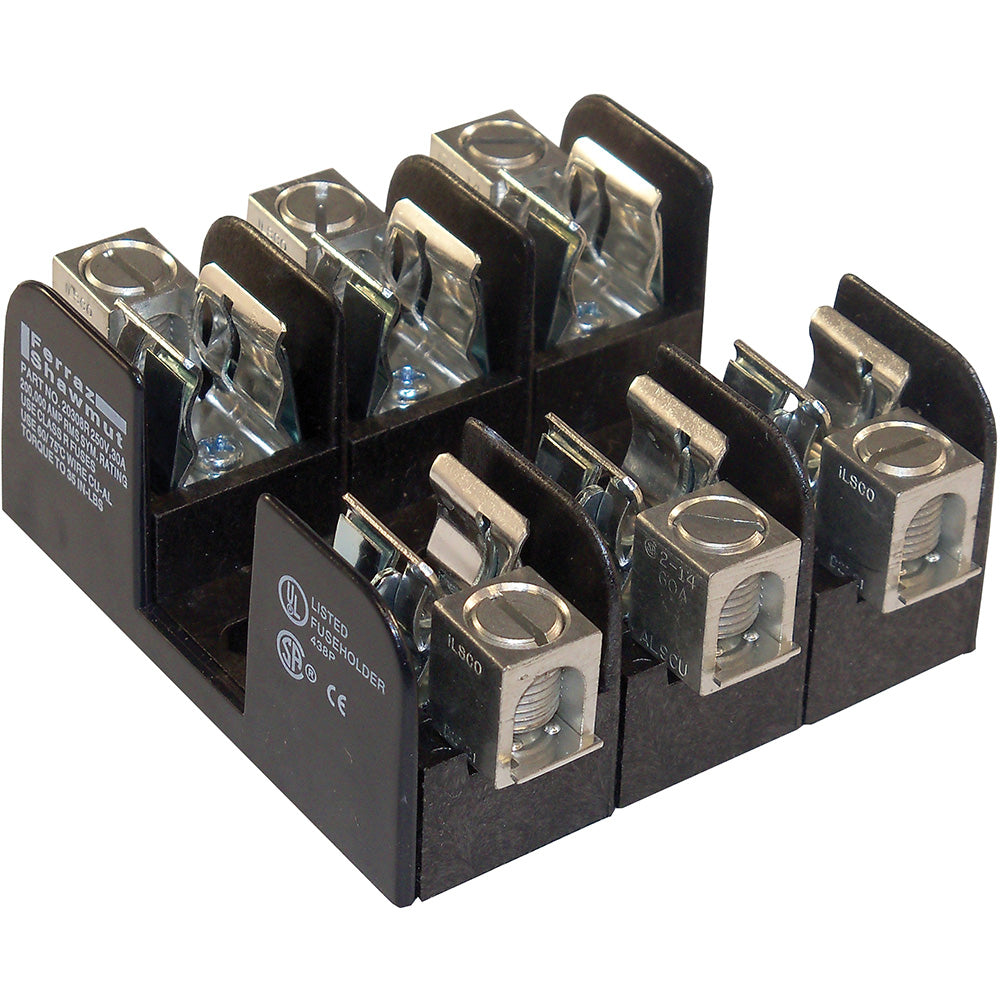

20308R - Mersen 30A 250V 3-Pole Class R Fuse Block with Spring Reinforced Clips

20308R

20308R is a 30 Amp, 250 Volt AC/DC 3-pole fuse block from Mersen designed for Class R fuses with spring reinforced clips.This fuse block features a box lug connection suitable for aluminum and copper wires (#2-14 AWG), direct screw mounting, and meets UL 4248 requirements. It has an interrupting rating of 200,000 AIC RMS and is UL listed (guide IZLT, file E52283), UL recognized (guide IZLT2, file E52283), and CSA certified (class 6225, file 32169). The insulator is molded glass-filled polycarbonate, providing high dielectric strength and durability.

• Amperage: 30 Amps
• Voltage Rating: 250 VAC / 250 VDC
• Poles: 3
• Mounting Type: Direct Screw Mount
• Interrupting Rating: 200,000 AIC RMS
• Fuse Class Compatibility: Class R (UL Class RK1 and RK5 compatible)
• Connection Type: Box Lugs for Al/Cu #2-14 AWG
• Clip Type: Spring Reinforced
• Material: Molded Glass-Filled Polycarbonate Insulator
• Certifications: UL Listed, UL Recognized, CSA Certified
• Dimensions: Approx. 3 in L x 3 in W x 1.38 in H

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: 20308R
• Manufacturer : Mersen
• Brand : Mersen
• Category : Fuse
• Item Subcategory : Fuse Block
• Type : 203
• Voltage : 250
• Amperage : 30
• Mounting : Box

Product Data

• UPC : 078200175042
• GTIN : 00782001750428
• Country of Origin : Mexico
• Dimensions : 3 in x 3 in x 1.38 in
• Weight : 0.24
• Certification : CSA Certified, UL Listed
