Product Info
- Manufacturer:Mersen
- Sub-Category:Fuse Block
Description
20308

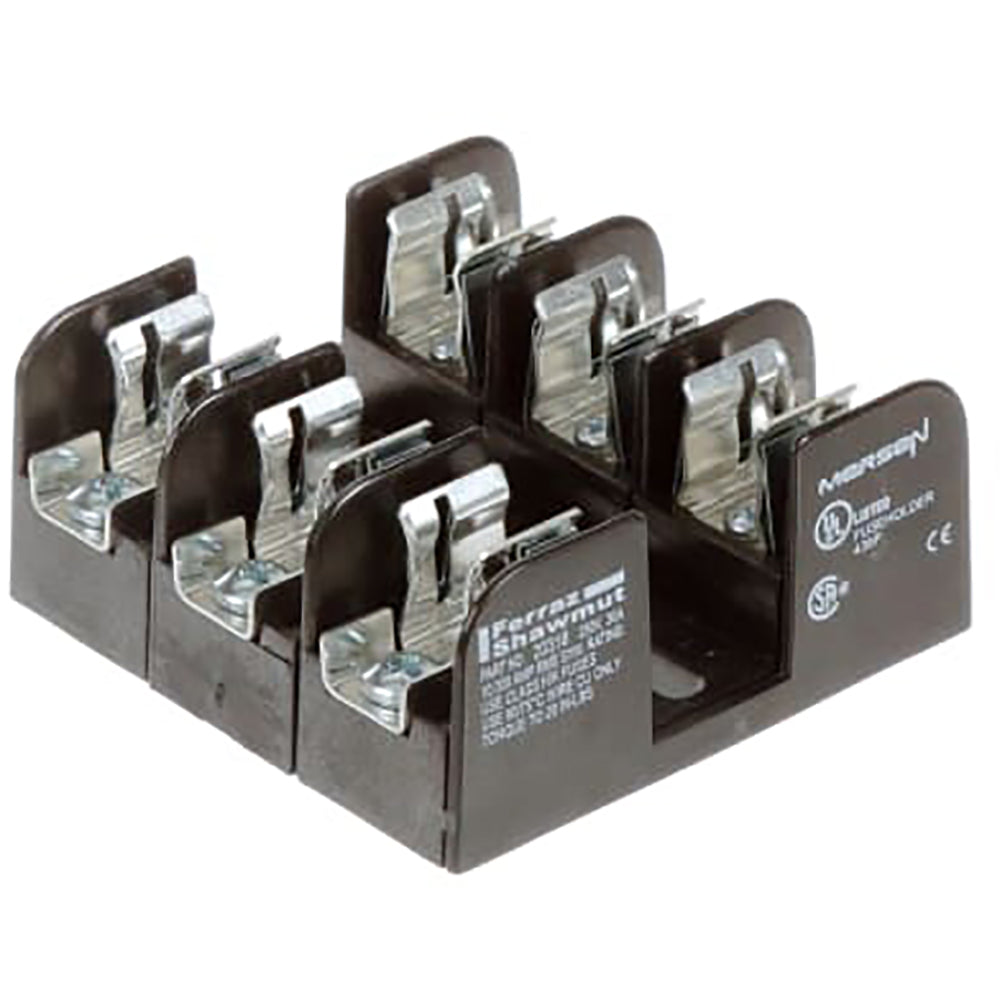

20308 is a Mersen 30 Amp, 250 Volt AC, 3-pole fuse block designed for Class H and K fuses with box lug mounting.This fuse block features a spring reinforced clip and is suitable for UL Class H and K fuses. It supports aluminum and copper conductors (#2-14 AWG) with box lugs, meeting UL 4248 requirements. The product is UL listed (guide IZLT, file E52283), UL recognized component (guide IZLT2), and CSA certified (class 6225, file 32169). It is designed for reliable power distribution and protection in industrial applications.
- Key Specifications
- Amperage: 30 Amps
- Voltage: 250 VAC / 250 VDC
- Poles: 3
- Mounting Type: Box Lugs (Al/Cu #2-14 AWG)
- Fuse Class: UL Class H and K
- Interrupt Rating: Meets UL 4248
- Certifications: UL Listed, UL Recognized, CSA Certified
- Spring Reinforced Clip
- Series/Frame: Class H/K Fuse Block
Specifications
- Part Number: 20308
- Manufacturer : Mersen
- Brand : Mersen
- Category : Fuse
- Item Subcategory : Fuse Block
- Type : 203
- Voltage : 250
- Amperage : 30
Product Data
- UPC : 782001758592
- GTIN : 00782001758592
- Country of Origin : Mexico
- Dimensions : 3 in x 3 in x 1.38 in
- Weight : 2
- Certification : CSA Certified, UL Listed
