Product Info
- Manufacturer:Mersen
- Sub-Category:Fuse Block
Description
20306R

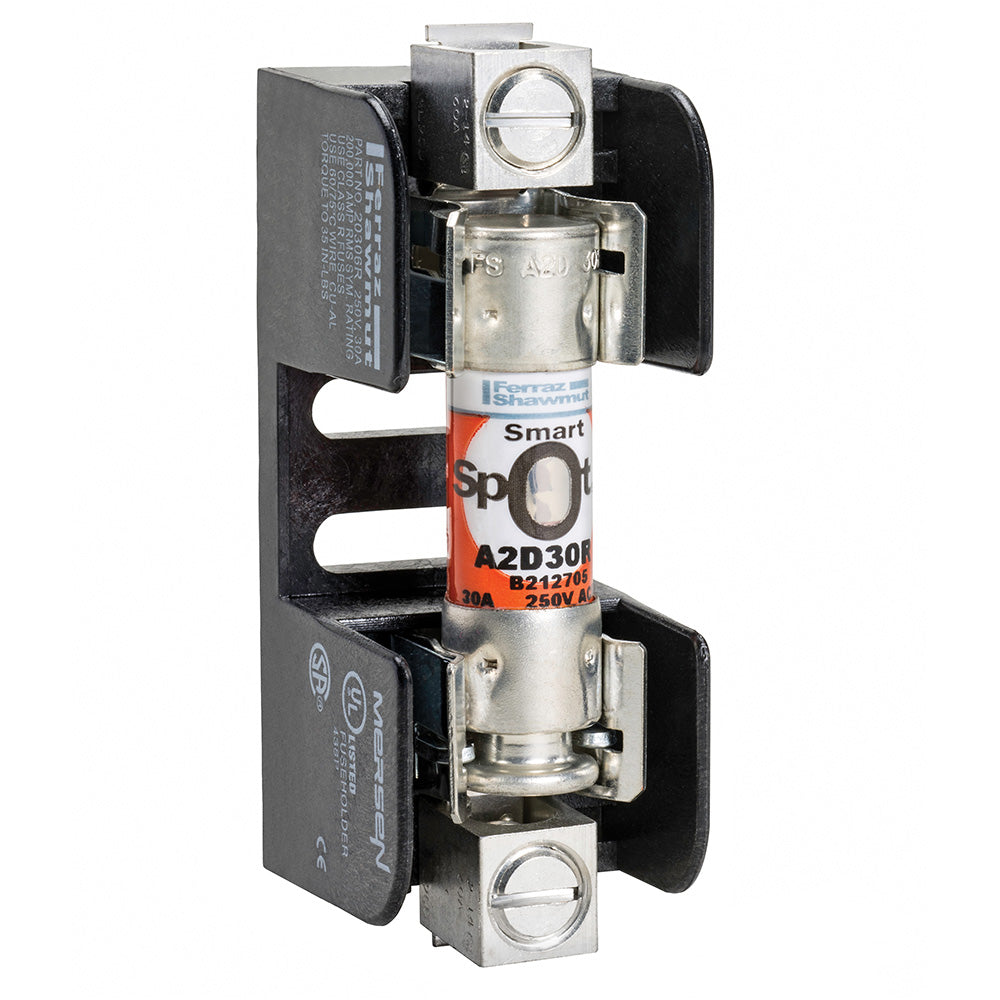

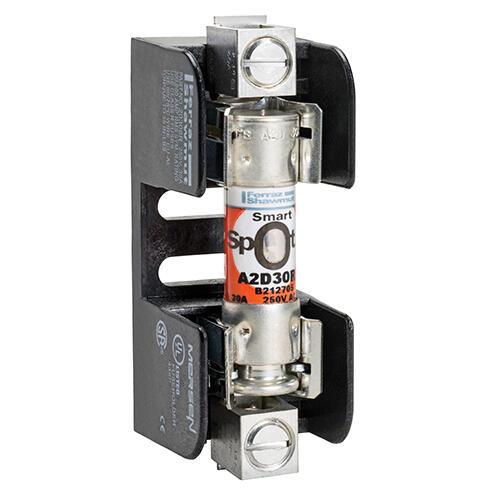

20306R is a Mersen 30A, 250V, 1-pole, Class R fuse block designed for reliable circuit protection in demanding applications.
This open-style fuse block features spring-reinforced clips for secure fuse retention, box lugs for easy wire termination (14–2 AWG Al/Cu), and a robust 200,000 AIC interrupting rating. It is UL listed, CSA certified, and meets the requirements of UL 4248, ensuring compliance with industry standards for safety and performance.
-
Key Specifications
- Amperage: 30A
- Voltage: 250V AC/DC
- Poles: 1
- Mounting Type: Screw mount, open style
- Interrupt Rating: 200,000 AIC RMS
- Series/Frame: Class R (RK1/RK5 compatible)
- Trip Unit: Not applicable (fuse block only)
- Connection: Box lug, accepts 14–2 AWG Al/Cu wire
- Fuse Installation: Clip-in, spring reinforced
- Certifications: UL listed (IZLT, File E52283), CSA certified (Class 6225, File 32169)
- Dimensions: 3" L x 1.25" W x 1.38" H
- Country of Origin: Mexico
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: 20306R
- Manufacturer : Mersen
- Brand : Mersen
- Category : Fuse
- Item Subcategory : Fuse Block
- Type : 203
- Voltage : 250
- Amperage : 30
Product Data
- UPC : 078200175037
- GTIN : 00782001750374
- Country of Origin : Mexico
- Dimensions : 1-1/4 in x 3 in x 1.38 in
- Weight : 10
- Certification : CSA Certified, UL Listed
