Product Info
- Manufacturer:Littelfuse
- Sub-Category:Medium Voltage Fuse
Description
200-9R-1C-5.5X

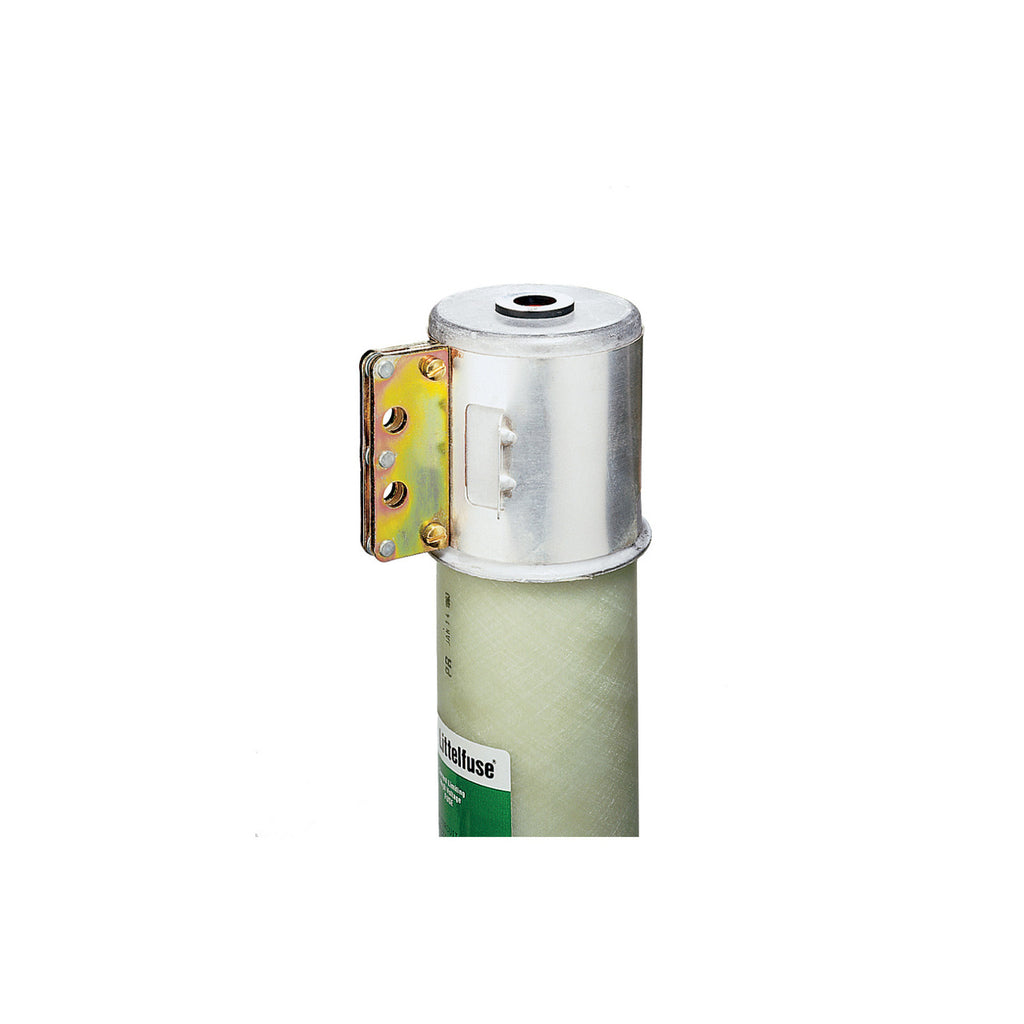

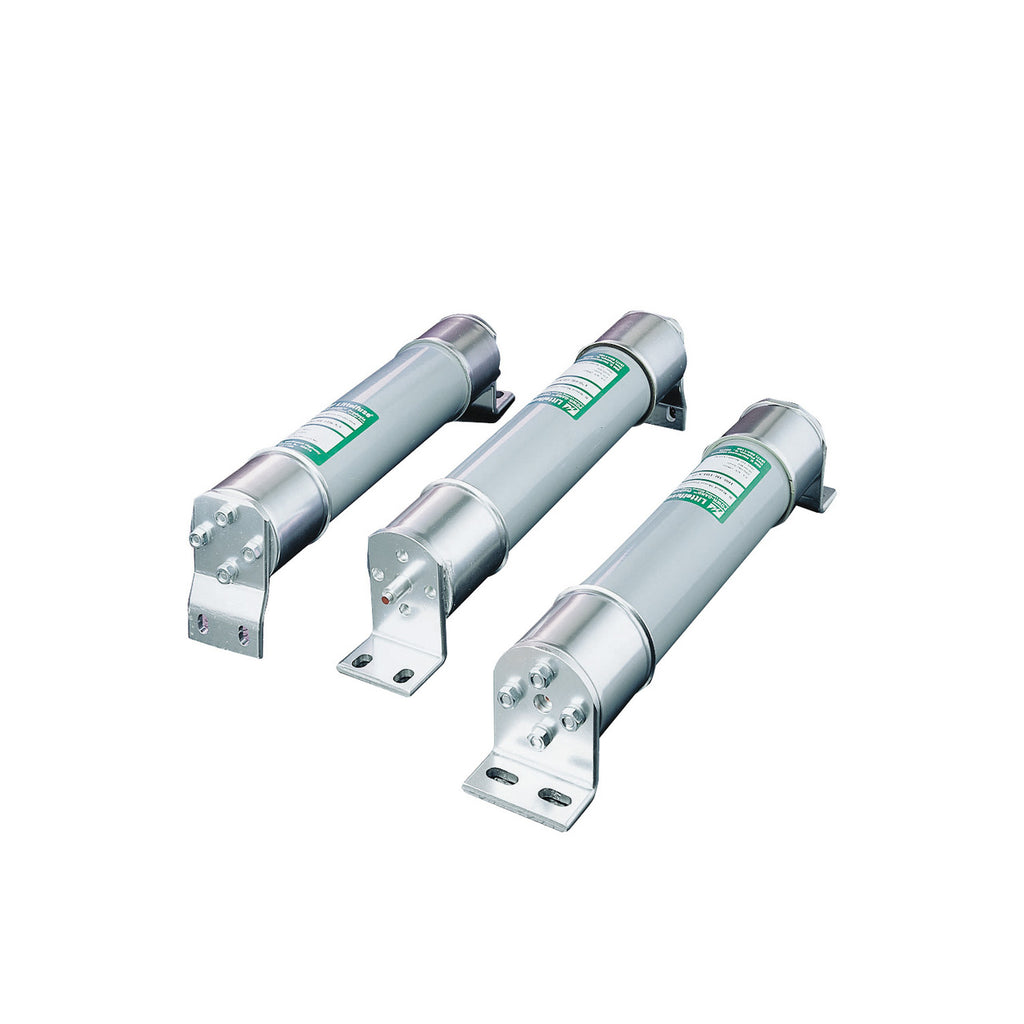

200-9R-1C-5.5X is a Littelfuse Powr-Gard R-Rated medium voltage fuse designed for reliable short-circuit protection in demanding electrical systems. This fuse features a 200A current rating and a 5500V voltage rating, making it suitable for a wide range of industrial and commercial applications. The 200-9R-1C-5.5X is a current-limiting, fast-acting fuse with a single barrel design and bolt-in mounting for secure installation. It is part of the Powr-Gard series and is rated for high interrupting capacity, providing robust protection for motors, transformers, and other critical equipment.
- Part Number: 200-9R-1C-5.5X
- Manufacturer: Littelfuse
- Series: Powr-Gard
- Amperage Rating: 200A
- Voltage Rating: 5500V
- Mounting Type: Bolt-In
- Interrupting Rating: 80,000A @ 5500VAC
- Number of Barrels: 1
- Frame Size: 9R
- Current-Limiting: Yes
- Fast-Acting: Yes
- R-Rated: Yes
Specifications
- Part Number: 200-9R-1C-5.5X
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Medium Voltage Fuse
- Family : Powr-Gard
- Type : 1C-5.5X
- Voltage : 5500
- Amperage : 200
- AIC rating : [email protected]
- Connection : Bolt-In
- Diameter : 3
- Class Rating : R
- Barrels : 1
- Clip Center : 14
Product Data
- UPC : 079458041989
- GTIN : 00079458041989
- Weight : 11
