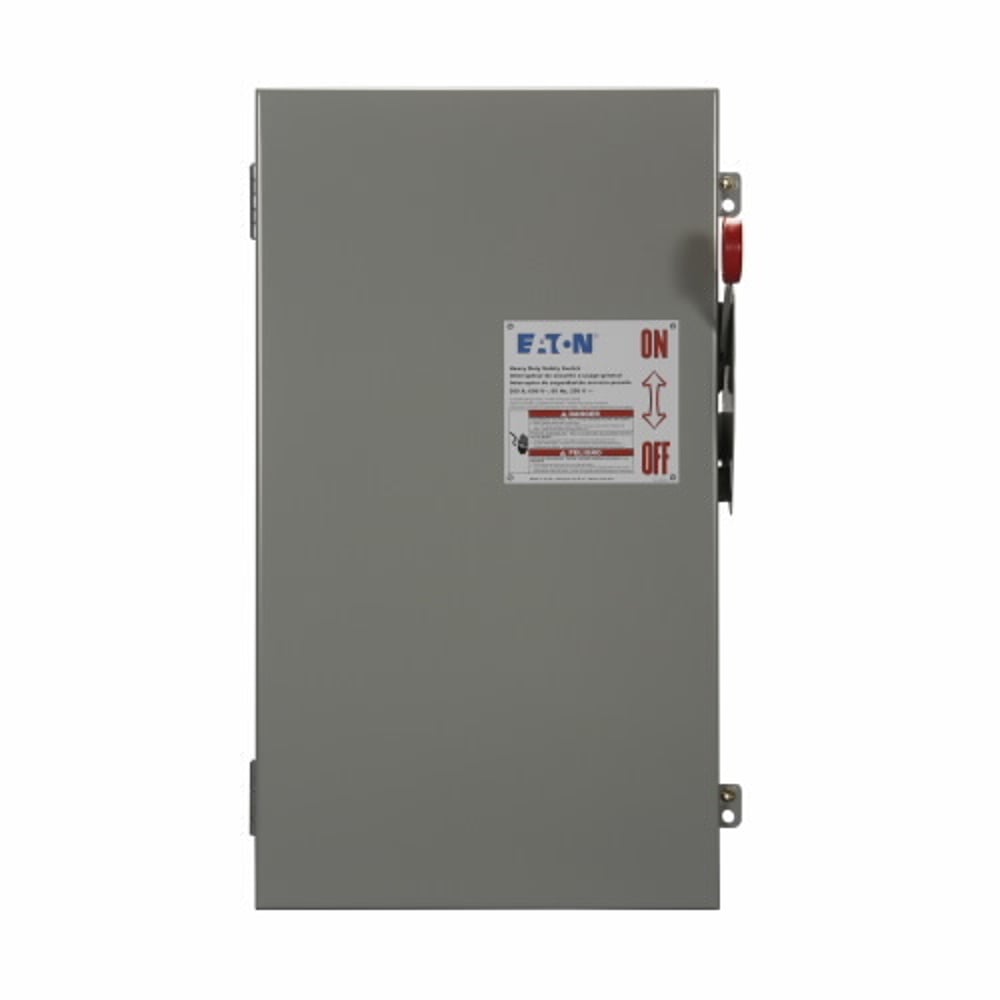

1HD364 - Eaton Heavy Duty Fusible Disconnect Switch 600V 200A 3-Pole

1HD364

1HD364 is a heavy-duty fusible disconnect switch designed for 3-phase, 4-wire operation at 600V with a 200A amperage rating. This single-throw safety switch accepts Class H fuses and is constructed with painted steel housing for durability in commercial, institutional, and industrial applications. The switch provides 100% load break capability and is rated for continuous duty at 80% of its amperage rating per CSA C22.2 No.4 standards.

• Amperage Rating: 200A
• Voltage Rating: 600 VAC, 250 VDC
• Number of Poles: 3
• Fuse Type: Class H
• Switch Type: Heavy Duty, Fusible, Single Throw
• Housing Material: Painted Steel
• NEMA Rating: NEMA 1 Indoor
• Load Rating: 50 hp at 480 VAC 1 Phase, 50 hp at 600 VAC 1 Phase, 125 hp at 480 VAC 3 Phase, 150 hp at 600 VAC 3 Phase
• Dimensions: 15.91 in W x 11.25 in D x 27.63 in H
• Padlockable Design

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: 1HD364
• Manufacturer : Eaton
• Brand : Cutler Hammer
• Category : Switch
• Item Subcategory : Disconnect
• Type : 1HD
• Voltage : 600
• Amperage : 200
• Phase : 3
• Poles : 3
• Fuse Class : H
• Configuration : Single
• Switch Style : Fusible
• Nema Rating : 1
• Compatible Frames : THFK

Product Data

• Weight : 52
