Product Info
- Manufacturer:Eaton
- Sub-Category:Fuse Block
Description
1BS103

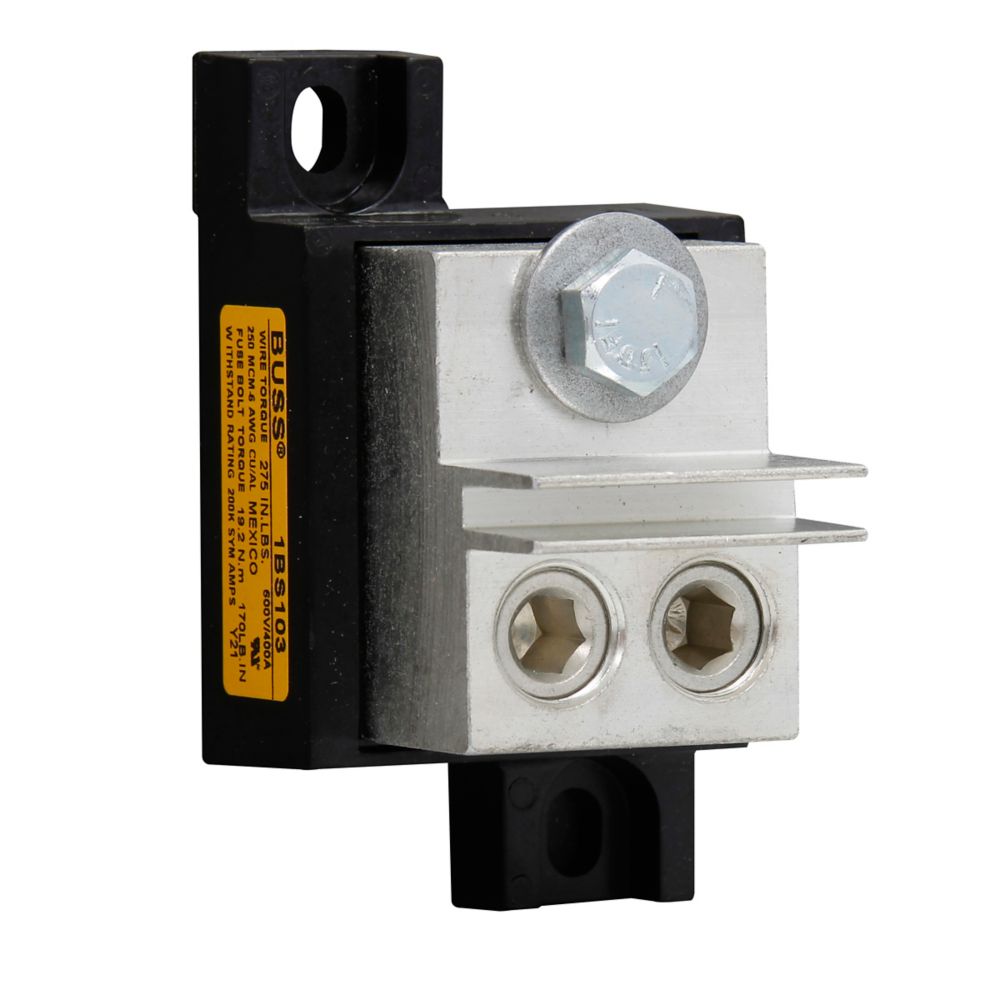

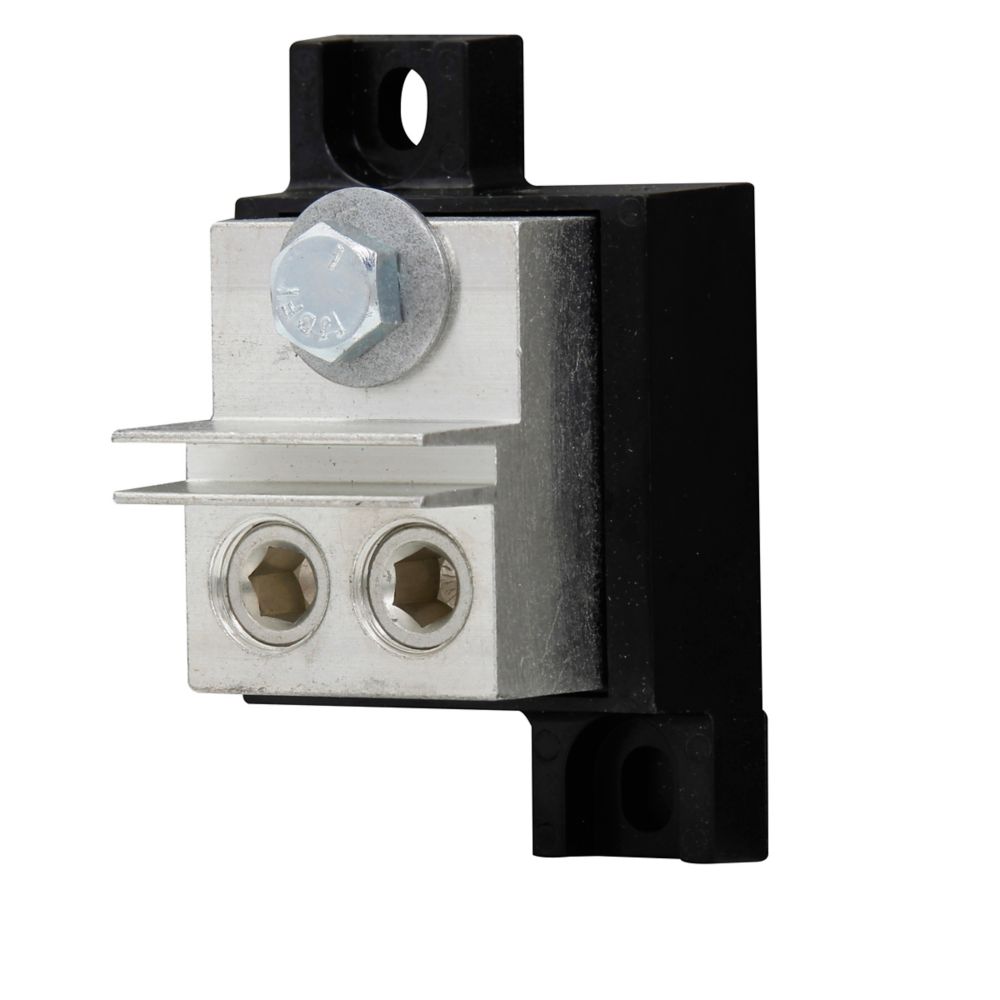

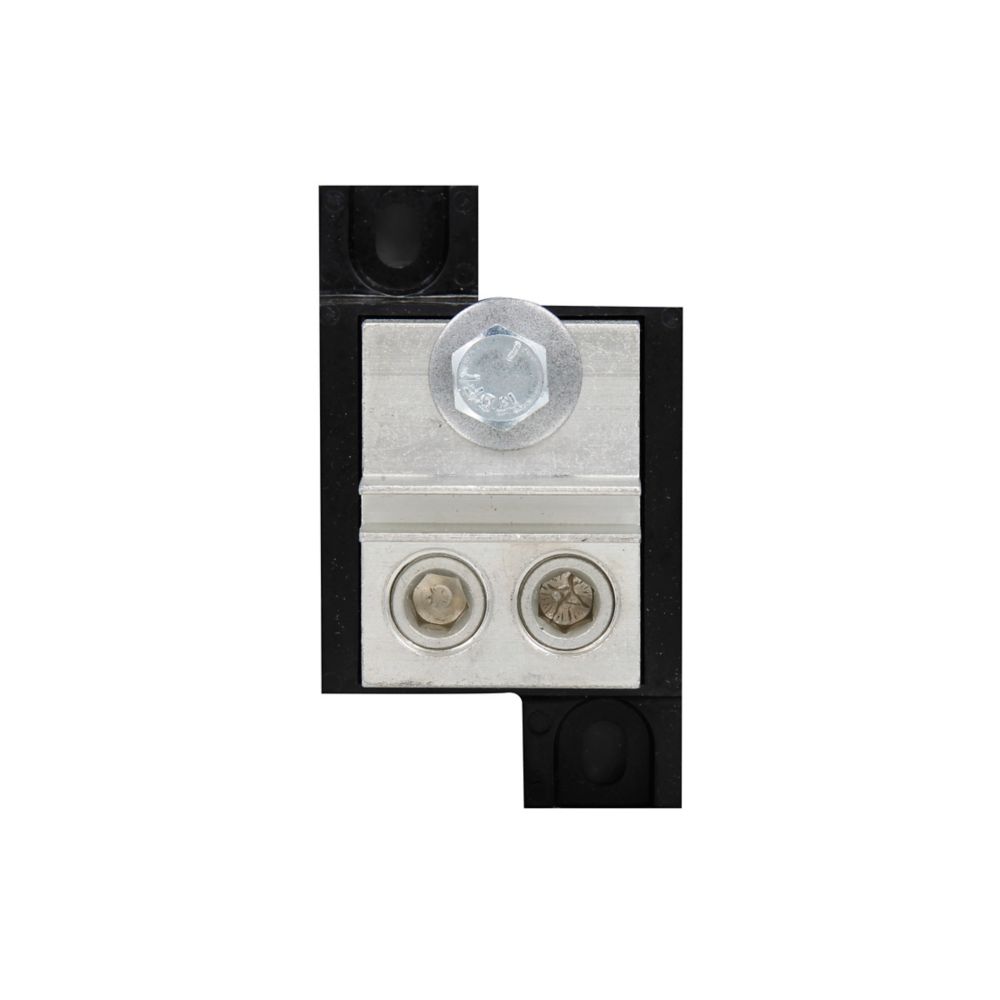

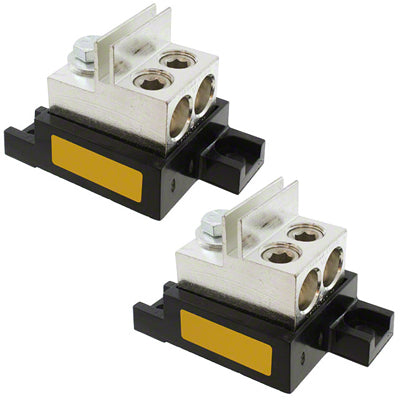

1BS103 is a modular fuse block from Eaton Bussmann designed for universal fuse applications with a 400 amp, 600 volt rating.1BS103 features a molded black phenolic base, stud mounting, and tin-plated aluminum connectors. It supports fuse sizes from 225 to 400 amps Class T and has a 200 kA interrupt rating. The fuse block accepts #6 to 250 kcmil copper or aluminum wire with set screw connections and operates up to 150°C. It is UL recognized, CSA certified, CE marked, and RoHS compliant.
- Key Specifications
- Amperage: 400 A
- Voltage: 600 V
- Interrupt Rating: 200 kA RMS Symmetrical
- Mounting Type: Stud mount
- Material: Molded black phenolic base, tin-plated aluminum connector, zinc-plated steel hardware
- Wire Size Range: #6 to 250 kcmil Cu/Al
- Operating Temperature: 150°C max
- Connection Type: Set screw
- Certifications: UL Recognized, CSA Certified, CE, RoHS compliant
- Fuse Compatibility: High speed and Class T fuses (225-400 A)
Specifications
- Part Number: 1BS103
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Fuse Block
- Family : Bussmannn Series
- Type : 1BS
- Voltage : 600
- Amperage : 400
Product Data
- UPC : 05171213501
- GTIN : 00051712135016
- Country of Origin : Mexico
- Dimensions : 2 in x 1 in x 1 in (Length/Depth x Height x Width)
- Weight : 0.023
