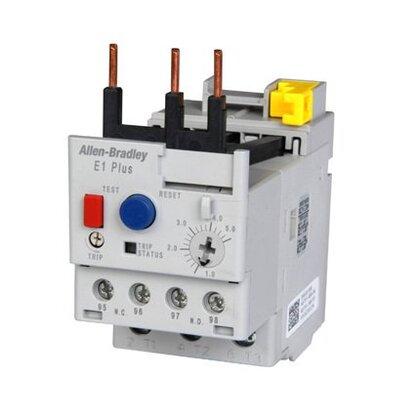

193-EEEB - Allen-Bradley Electronic Overload Relay 5.4-27A Adjustable, 3 Pole, 690V AC, E1 Plus Series

193-EEEB

193-EEEB is an Allen-Bradley electronic overload relay designed for motor protection with a wide adjustable current range from 5.4 to 27 amps.

This E1 Plus series overload relay features a 5:1 current adjustment ratio, reducing inventory needs and enabling flexible installation. It operates at a rated voltage of up to 690V AC and is compatible with 3-pole contactors such as the 100-C09 to 100-C23 series. The device includes advanced phase failure detection, selectable trip classes (10, 15, 20, 30), and both manual and automatic reset options. It is self-powered, requiring no separate power supply, and provides low-voltage compatible contacts ideal for PLC integration. The relay offers 1 normally closed trip contact and 1 normally open alarm contact with screw terminals and an IP20 rating.

• Adjustable current range: 5.4 to 27 A
• Rated operational voltage: 690 V AC
• Trip class selectable: 10, 15, 20, 30
• Reset type: Manual and automatic
• Phase loss protection included
• Contact configuration: 1 normally closed (trip), 1 normally open (alarm)
• Mounting style: DIN rail or base mount
• Compatible with Allen-Bradley 100-C09 to 100-C23 contactors
• Self-powered, no external power supply needed
• IP20 enclosure rating

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: 193-EEEB
• Manufacturer : Allen-Bradley
• Brand : Allen-Bradley
• Category : Motor Control
• Item Subcategory : Overload Relay
• Family : Bulletin 193
• Type : 193-EE
• Relay Style : Solid State
• Amperage Maximum : 27
• Amperage Minimum : 5.4
• Compatible Frames : CLD

Product Data

• UPC : 781180129483
• GTIN : 10781180129480
• Weight : 1
