Product Info
- Manufacturer:Allen-Bradley
- Sub-Category:Overload Relay
Description

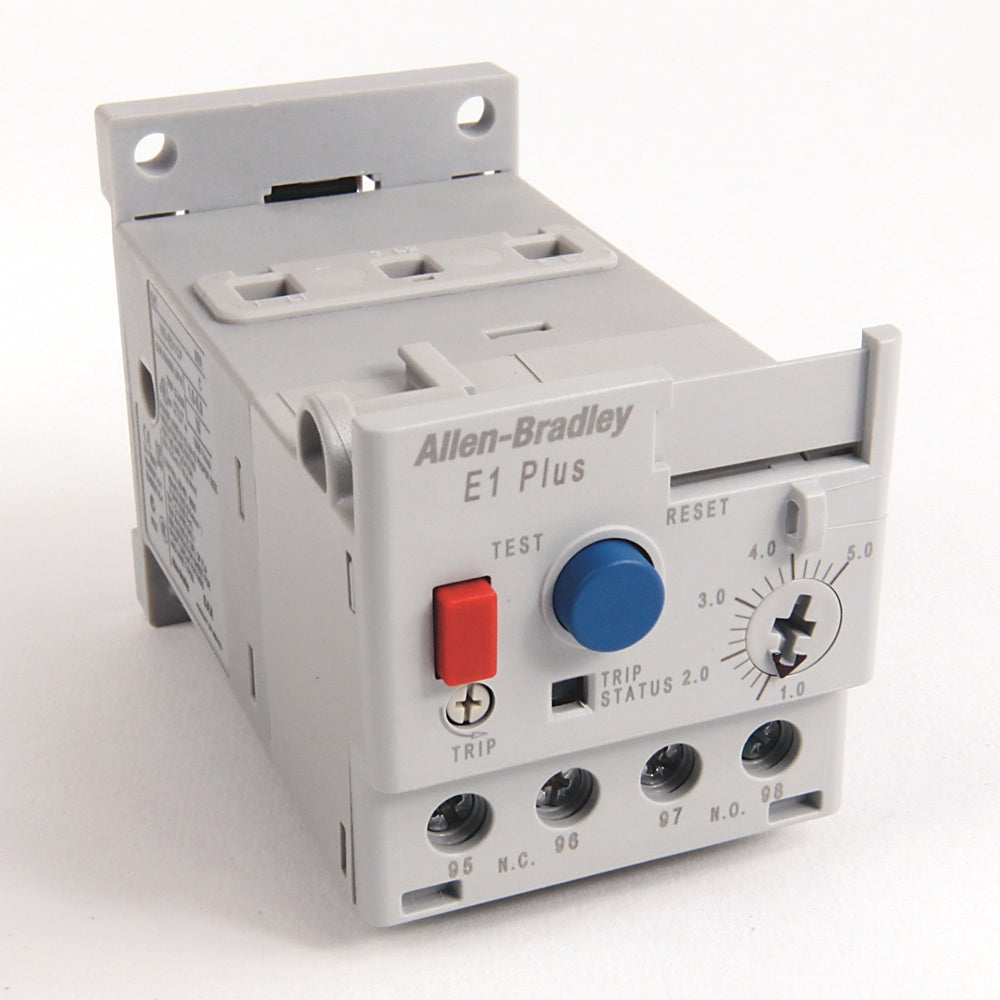

193-ED1CB
193-ED1CB is an Allen-Bradley E1 Plus solid state IEC overload relay designed for motor control applications with a 1-5 Amp adjustable current range.193-ED1CB features a 3-phase design, manual reset, and trip class 10 protection. It operates at 600-690 VAC and mounts directly to Allen-Bradley 100-C09 to 100-C23 contactors. This relay includes 1 normally open (N.O.) and 1 normally closed (N.C.) contact, phase loss protection, and screw-type terminals for secure wiring. The device is self-powered, minimizing heat generation and simplifying installation without the need for an external power supply.
- Amperage: 1-5 A adjustable
- Voltage: 600-690 VAC, 50/60 Hz
- Phases: 3-phase
- Trip Class: 10 (trips within 10 seconds)
- Reset Type: Manual reset
- Mounting: Fits 100-C09 to 100-C23 contactors
- Contact Configuration: 1 N.O., 1 N.C.
- Terminal Type: Screw terminals
- Self-powered design
- Phase loss protection included
- Standards: C-TICK, CCC, CE, CSA, KC, Marine, UL certified
- IP20 rated enclosure
Specifications
- Part Number: 193-ED1CB
- Manufacturer : Allen-Bradley
- Brand : Allen-Bradley
- Category : Motor Control
- Item Subcategory : Overload Relay
- Relay Style : Solid State
- Amperage Maximum : 5
- Amperage Minimum : 1
- Compatible Frames : CHND
Product Data
- Weight : 5.19
