Product Info
- Manufacturer:Allen-Bradley
- Sub-Category:Overload Relay
Description
193-1EFFG

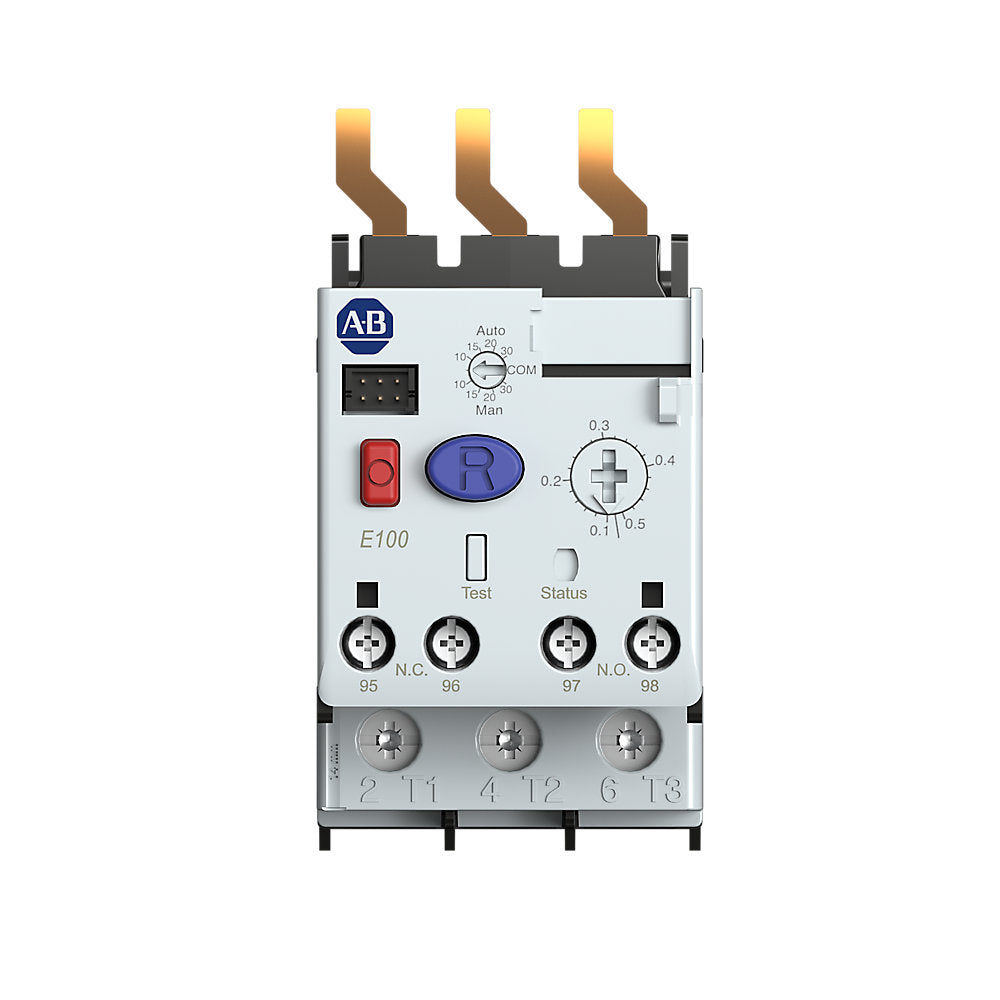

193-1EFFG is an Allen-Bradley E100 series electronic overload relay with adjustable current range from 11 to 55 amps, designed for advanced motor protection.193-1EFFG features manual or automatic reset, adjustable trip classes from 10 to 30, and mounts directly to 3-pole IEC 100-E26 through 100-E38 contactors. It includes phase loss protection, two auxiliary contacts (one normally open alarm and one normally closed trip), and provides precise current load measurement to prevent motor damage.
- Adjustable current range: 11 to 55 Amps
- Trip classes: 10, 15, 20, 30 selectable
- Reset: Manual or automatic
- Mounting: Direct mount to IEC 100-E26 to 100-E38 3-pole contactors
- Auxiliary contacts: 1 NO alarm, 1 NC trip
- Phase loss (single phase) protection
- Advanced electronic overload technology
- Compatible with E100 series motor control
- Voltage rating: up to 690 V
- Contact configuration: 3 poles
- Certifications: Compliant with industry standards
Specifications
- Part Number: 193-1EFFG
- Manufacturer : Allen-Bradley
- Brand : Allen-Bradley
- Category : Motor Control
- Item Subcategory : Overload Relay
Product Data
- Weight : 5.19
