Product Info
- Manufacturer:Allen-Bradley
- Sub-Category:Overload Relay
Description

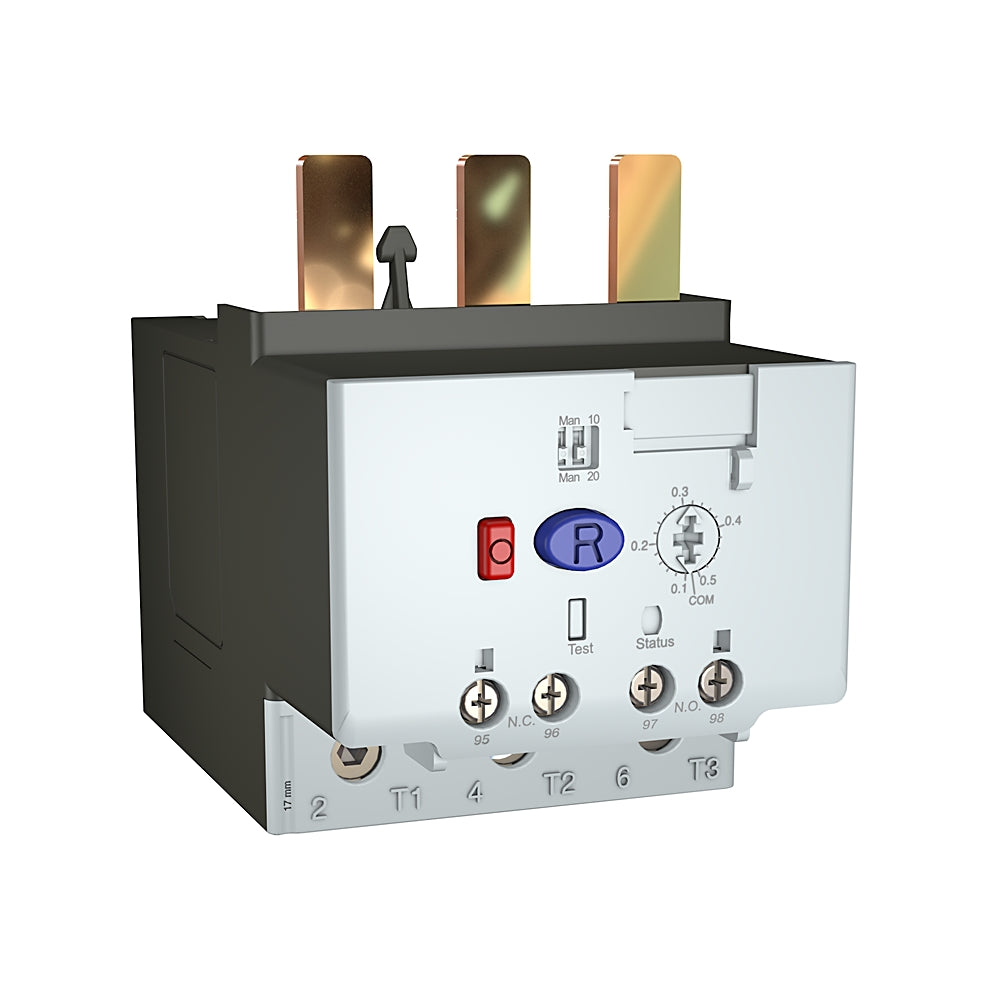

193-1EFEB
193-1EFEB is an Allen-Bradley IEC rated electronic overload relay designed for three-phase motor protection with adjustable trip current from 5.4 to 27 amps.193-1EFEB features selectable trip classes 10, 15, 20, and 30 with manual or automatic reset options, and mounts directly to 100-C09 to 100-C23 IEC contactors. It includes one normally open and one normally closed auxiliary contact for control circuit integration.
- Amperage range: 5.4 - 27 A
- Voltage: IEC rated for three-phase motors
- Poles: 3-phase motor protection
- Mounting type: Direct mount to 100-C IEC contactors
- Interrupt rating: Compatible with IEC contactors up to 100 A
- Trip class: Selectable 10, 15, 20, 30
- Reset type: Manual or automatic reset selectable
- Auxiliary contacts: 1 normally open, 1 normally closed
- Certifications: cULus Listed, CE Marked, RCM, ABS, RINA, DNV/GL, CCC, KC, EAC
- Self-powered design with low heat dissipation
- Test and reset buttons included
- Compatible with external current transformers and accessories
Specifications
- Part Number: 193-1EFEB
- Manufacturer : Allen-Bradley
- Brand : Allen-Bradley
- Category : Motor Control
- Item Subcategory : Overload Relay
Product Data
- UPC : 889508722375
- GTIN : 0889508722375
- Weight : 0.551155 lb
