Product Info
- Manufacturer:Allen-Bradley
- Sub-Category:Overload Relay
Description
193-1EEGE

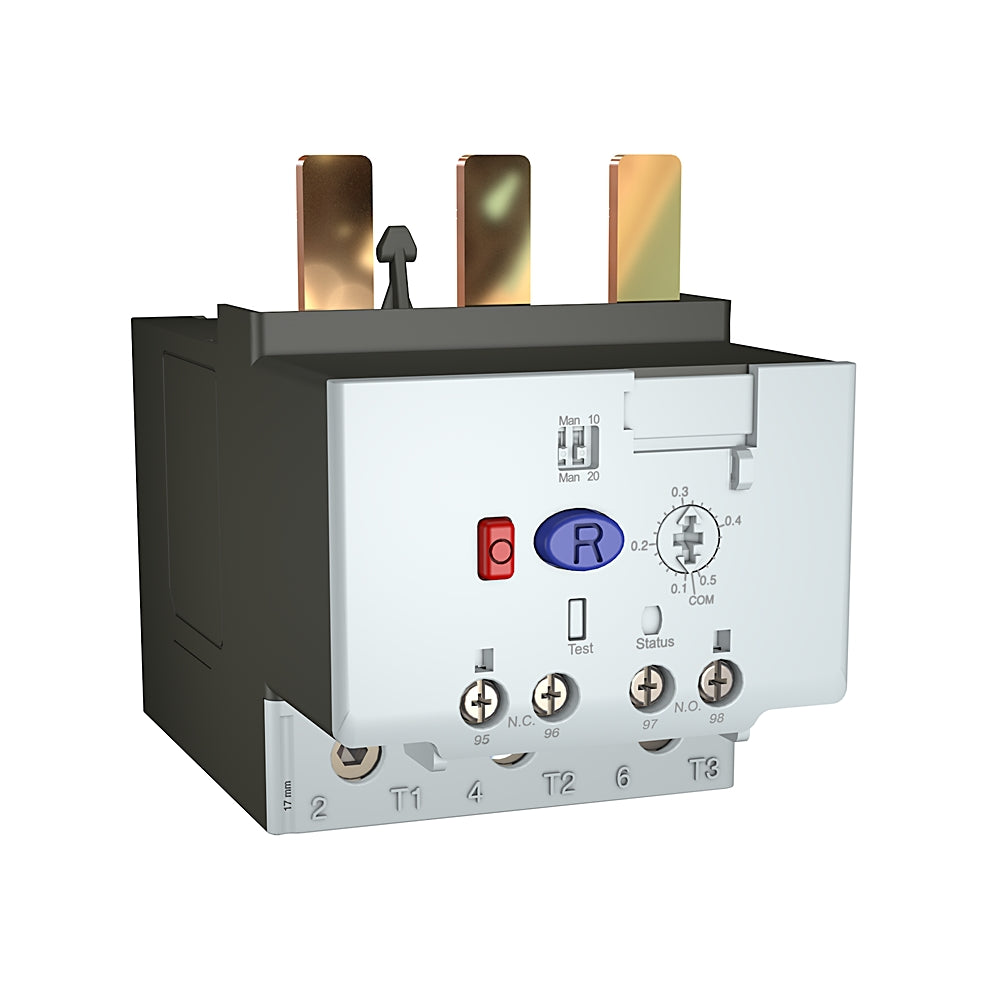

193-1EEGE is an Allen-Bradley E100 series electronic overload relay designed for reliable three-phase motor protection.
This solid-state relay offers adjustable trip current from 20 to 100 amps, manual reset, and selectable Class 10 or Class 20 tripping. It mounts directly to Bulletin 100-C60 through 100-C97 IEC contactors and features phase loss protection, two auxiliary contacts (1 NO alarm, 1 NC trip), and precise motor current monitoring to prevent equipment damage. The 193-1EEGE is a direct replacement for the 193-EEGE, providing enhanced motor protection with advanced electronic sensing.
-
Key Specifications
- Amperage: 20–100A adjustable
- Voltage: 690V AC rated insulation voltage (IEC), 600V AC rated operating voltage (UL)
- Poles: 3
- Mounting Type: Direct mount to Bulletin 100-C60 through 100-C97 IEC contactors
- Interrupt Rating: Not specified in available data
- Series/Frame: E100, Bulletin 193
- Trip Unit: Electronic, selectable Class 10 or Class 20, manual reset only
- Certifications: IEC rated
- Contact Configuration: 1 normally open (alarm), 1 normally closed (trip)
- Phase Loss Protection: Yes (single phase sensitivity)
- Terminal Type: Screw
- Rated Frequency: 50/60 Hz
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: 193-1EEGE
- Manufacturer : Allen-Bradley
- Brand : Allen-Bradley
- Category : Motor Control
- Item Subcategory : Overload Relay
Product Data
- UPC : 889508722290
- GTIN : 889508722290
- Weight : 0.99 lb
