Product Info
- Manufacturer:Mersen
- Sub-Category:Medium Voltage
Description
177L109G14

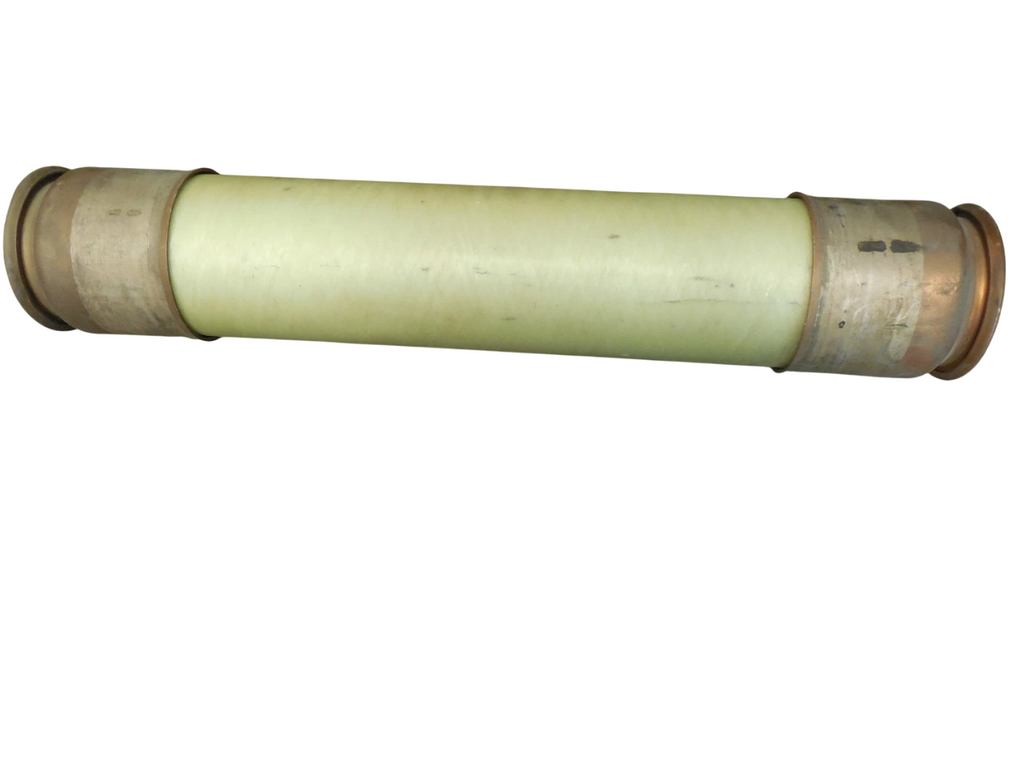

177L109G14 is a medium voltage fuse designed for reliable protection in industrial and commercial power distribution systems. This R-class fuse features a single barrel construction with ferrule connections for secure mounting and high performance in demanding applications. Engineered for use in medium voltage circuits, the 177L109G14 offers an interrupting rating of 80kA at 5.08kV and is rated for 2A. It is suitable for applications requiring robust protection against overcurrent and short circuit events.
- Part Number: 177L109G14
- Manufacturer: Mersen / General Electric
- Amperage: 2A
- Voltage: 5.08kV
- Poles: 1
- Mounting Type: Ferrule Connection
- Interrupt Rating: 80kA at 5.08kV
- Series/Frame: R-Class
- Application: Medium Voltage Protection
- Standards: UL Listed
- Connection Type: Single Barrel
- Operating Environment: Indoor/Outdoor
Specifications
- Part Number: 177L109G14
- Manufacturer : Mersen
- Brand : Mersen
- Category : Fuse
- Item Subcategory : Medium Voltage
- Voltage : 5080
- Amperage : 2
- AIC rating : [email protected]
- Connection : Ferrule
- Diameter : 3
- Class Rating : R
- Barrels : 1
- Clip Center : 12
Product Data
- Weight : 9
