Product Info
- Manufacturer:Eaton
- Sub-Category:Medium Voltage Fuse
Description

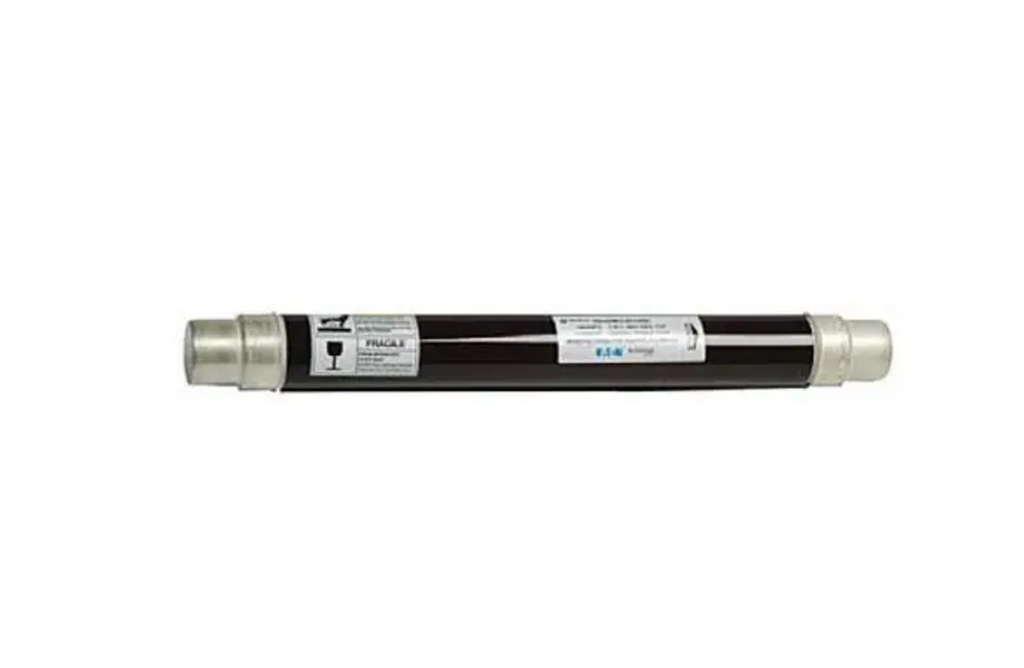

175GDMSJ25E
175GDMSJ25E is a medium voltage fuse designed for reliable circuit protection in industrial and commercial applications. This Eaton Bussmann series fuse features a 25A current rating and a 17.5kVAC voltage rating, suitable for use in medium voltage systems requiring DIN rail mounting. The fuse is constructed with a ceramic body and is classified as a medium/normal blow type, providing dependable protection against overcurrent events. This fuse is engineered for use in demanding environments and is compatible with standard DIN rail mounting systems. It is designed to meet the requirements of medium voltage distribution systems, offering a robust solution for critical circuit protection needs.
- Part Number: 175GDMSJ25E
- Manufacturer: Eaton
- Series: Bussmann
- Current Rating: 25A
- Voltage Rating AC: 17.5kVAC
- Interrupt Rating: 65kA
- Mounting Style: DIN
- Fuse Type: Medium / Normal Blow
- Body Material: Ceramic
- Requires Holder: Yes
- Application: Medium Voltage Circuit Protection
- Standards: ANSI C37.40
Specifications
- Part Number: 175GDMSJ25E
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Medium Voltage Fuse
- Type : DIN
- Voltage : 17500
- Amperage : 25
- AIC rating : [email protected]
- Connection : DIN
- Diameter : 51
- Class Rating : E
- Barrels : 1
- Clip Center : 442
Product Data
- UPC : 05171269182
- GTIN : 00051712691826
- Dimensions : 20.078 in x 2.106 in x 2.007 in (Length/Depth x Height x Width)
- Weight : 14.79
