1746-IA16 - Allen-Bradley SLC 500 16-Channel 120V AC Digital Input Module, 12mA per Point, Chassis Mount, 85-132V AC, 16 Inputs, 0.085A Backplane Current

SKU: 1746-IA16-New
Condition: New
Price:
Call For Price
Stock:
Low inventory, please call for stock check

Same-Day Shipping

Most items ship same-day if ordered by 1:30 PM PST.

2 Year Warranty Guaranteed

All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.

Product Questions? Contact Us

Product Info

1746-IA16 - Allen-Bradley SLC 500 16-Channel 120V AC Digital Input Module, 12mA per Point, Chassis Mount, 85-132V AC, 16 Inputs, 0.085A Backplane Current - Essential Electric Supply

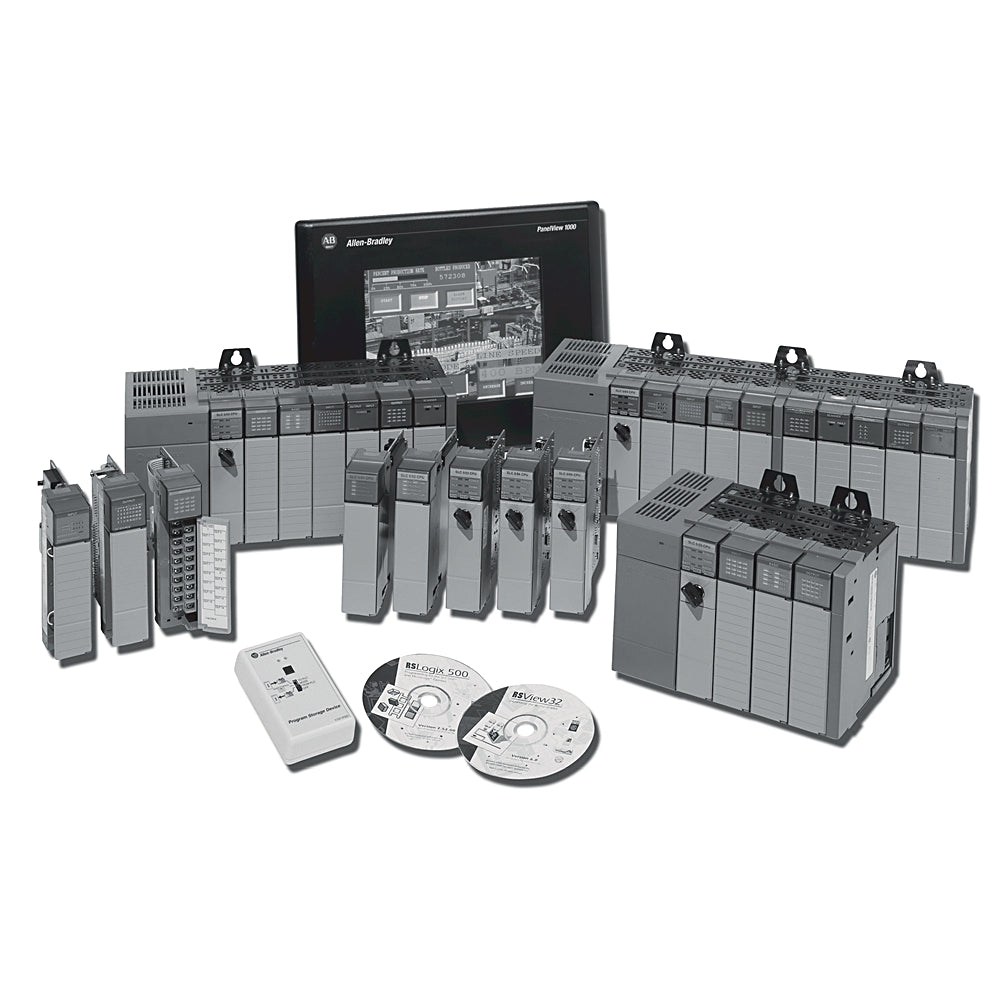

Roll over image to zoom in Click on image to zoom Images are for reference only
1746-IA16 - Allen-Bradley SLC 500 16-Channel 120V AC Digital Input Module, 12mA per Point, Chassis Mount, 85-132V AC, 16 Inputs, 0.085A Backplane Current - Essential Electric Supply

Description

1746-IA16


1746-IA16 is a 16-channel digital AC input module for Allen-Bradley SLC 500 series programmable controllers, designed for high-density discrete signal acquisition.

This module provides 16 individually isolated input circuits, each capable of receiving 100-120V AC signals within an 85-132V AC operating range at 47-63 Hz. It features chassis mounting, a removable terminal block, and 16 status LEDs for easy monitoring. The 1746-IA16 is ideal for general-purpose industrial automation applications requiring reliable AC input interfacing.

    Key Specifications
  • Part Number: 1746-IA16
  • Manufacturer: Allen-Bradley
  • Series/Frame: SLC 500
  • Input Voltage: 85-132V AC (nominal 120V AC)
  • Input Current: 12mA nominal per point at 120V AC
  • Number of Inputs: 16 (single group)
  • Backplane Current: 0.085A at 5V DC
  • Mounting Type: Chassis
  • Operating Frequency: 47-63 Hz
  • On-State Delay: 35ms max
  • Off-State Delay: 45ms max
  • Isolation Voltage: 250V AC (group-to-group & field-to-logic)
  • Surge Immunity: 2.5kV ANSI/IEEE C37.90.1

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

  • Part Number: 1746-IA16
  • Manufacturer : Allen-Bradley
  • Brand : Allen-Bradley
  • Category : Automation
  • Item Subcategory : PLC Module

Product Data

  • UPC : 1.06625E+13
  • Weight : 2 lb
