170M7084 - Eaton 3000A 690V Class aR High Speed Square Body Fuse Size 4 Type K Indicator

170M7084

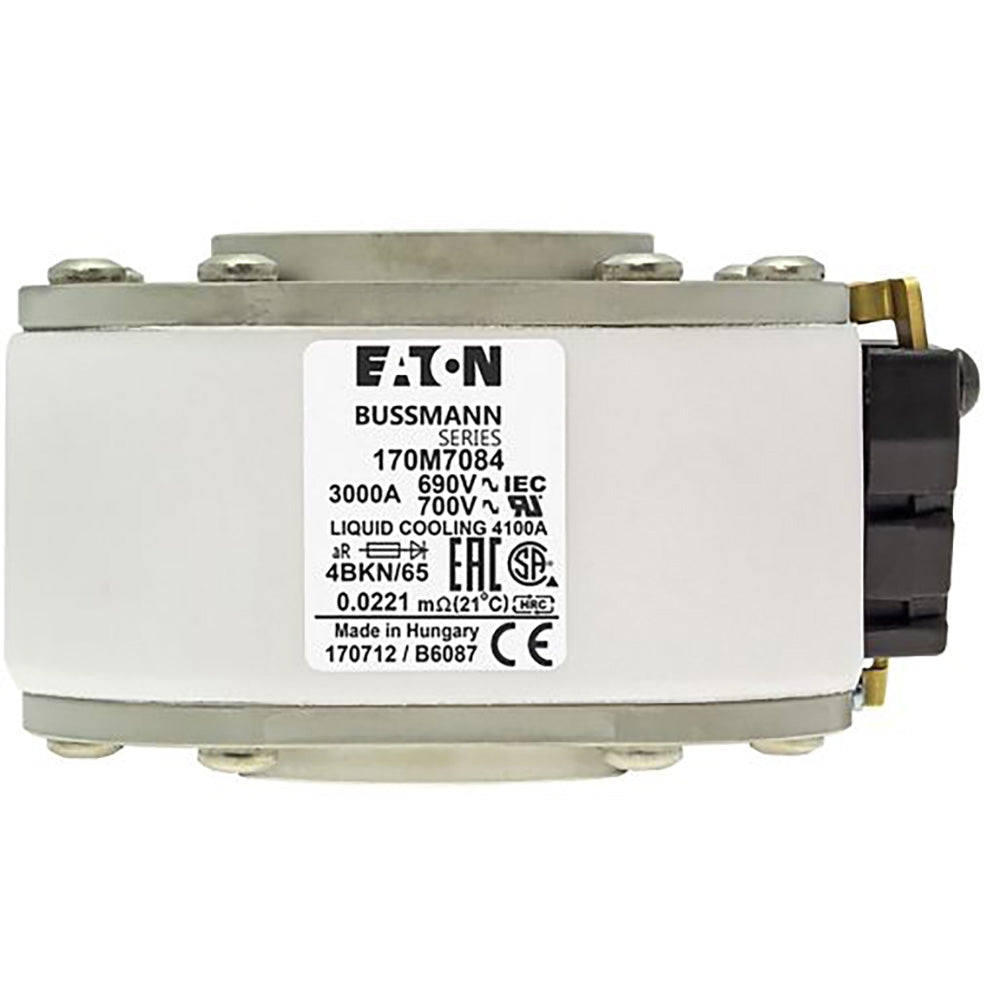

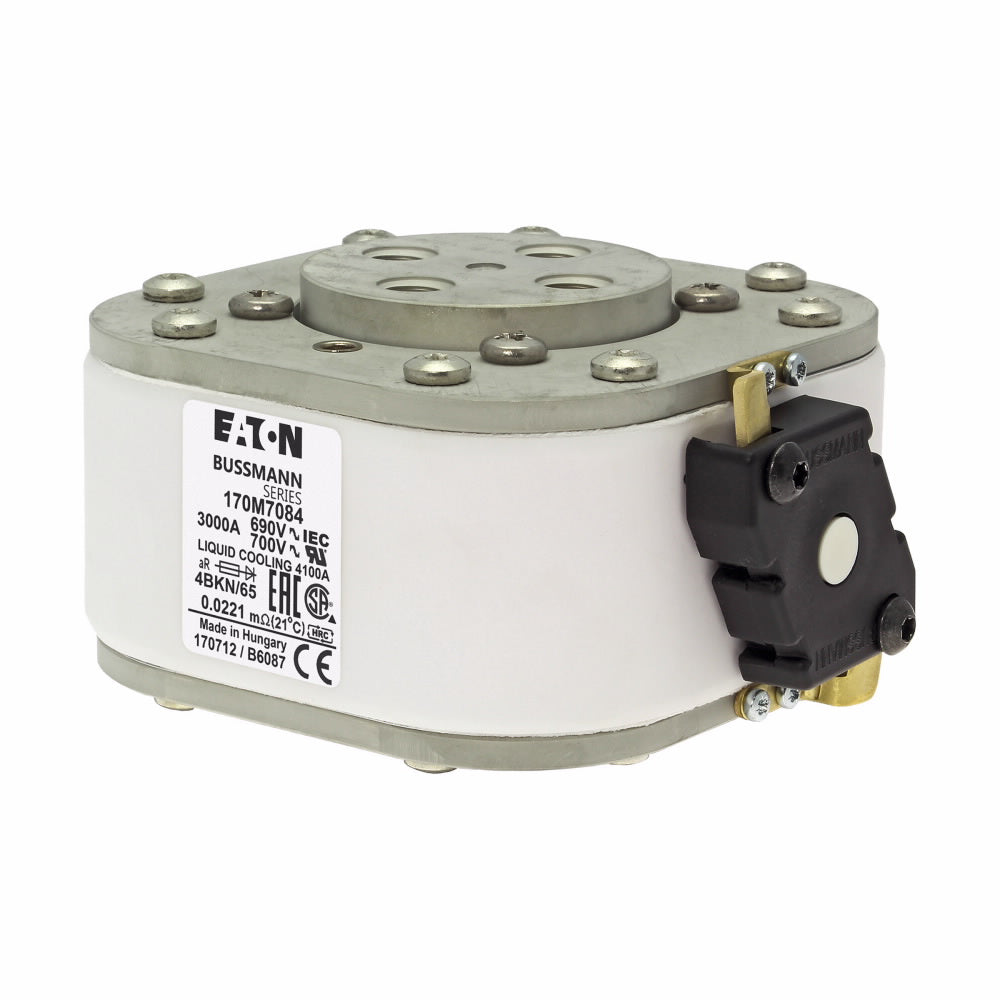

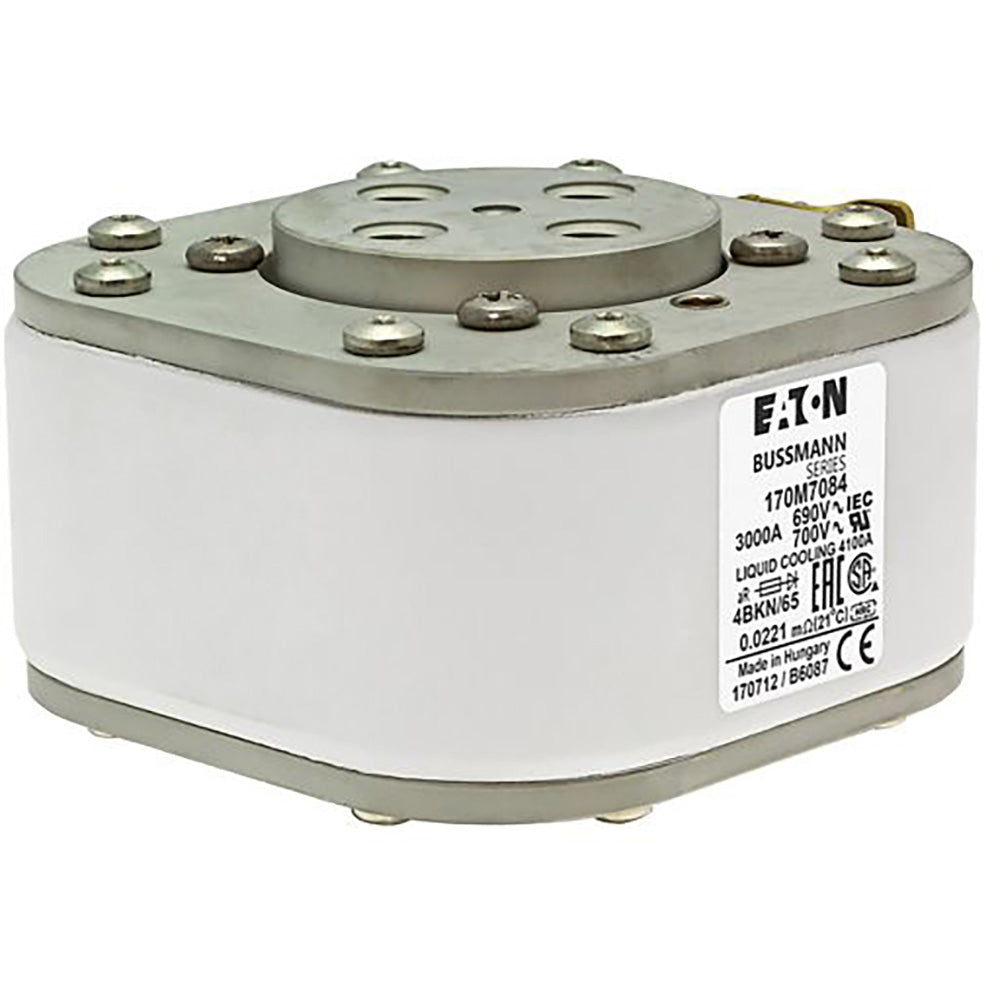

170M7084 is a high speed square body fuse from Eaton's Bussmann series designed for semiconductor and power converter protection.170M7084 features a 3000 ampere rating, 690 volt AC rating, and a 200 kA interrupt rating. It is a Class aR fuse with a size 4 frame and includes a center fuse status indicator (Type K). The fuse is IEC and UL recognized, CE marked, and RoHS compliant. It has a compact dimension of 105 x 120 x 67 mm and is flush mounted with M10 mounting dimensions.

• Amperage Rating: 3000 A
• Voltage Rating: 690 V AC
• Interrupt Rating: 200 kA
• Fuse Size: 4
• Class: aR (semiconductor protection)
• Fuse Indicator: Center fuse status indicator (Type K)
• Mounting Method: Flush, M10 mounting dimension
• Certifications: UL Recognized, IEC Rated, CE Marked, RoHS Compliant
• Dimensions (WxHxD): 105 x 120 x 67 mm
• Application: Semiconductor, DC common bus, DC drives, power converters/rectifiers
• Watt Losses: 305 W

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: 170M7084
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : 170M Series
• Type : 170M
• Voltage : 690
• Amperage : 3000
• AIC rating : 200kA@690V

Product Data

• UPC : 051712266574
• GTIN : 00051712266574
• Dimensions : 67 mm x 120 mm x 105 mm (Length/Depth x Height x Width)
• Weight : 5.55105
