Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description

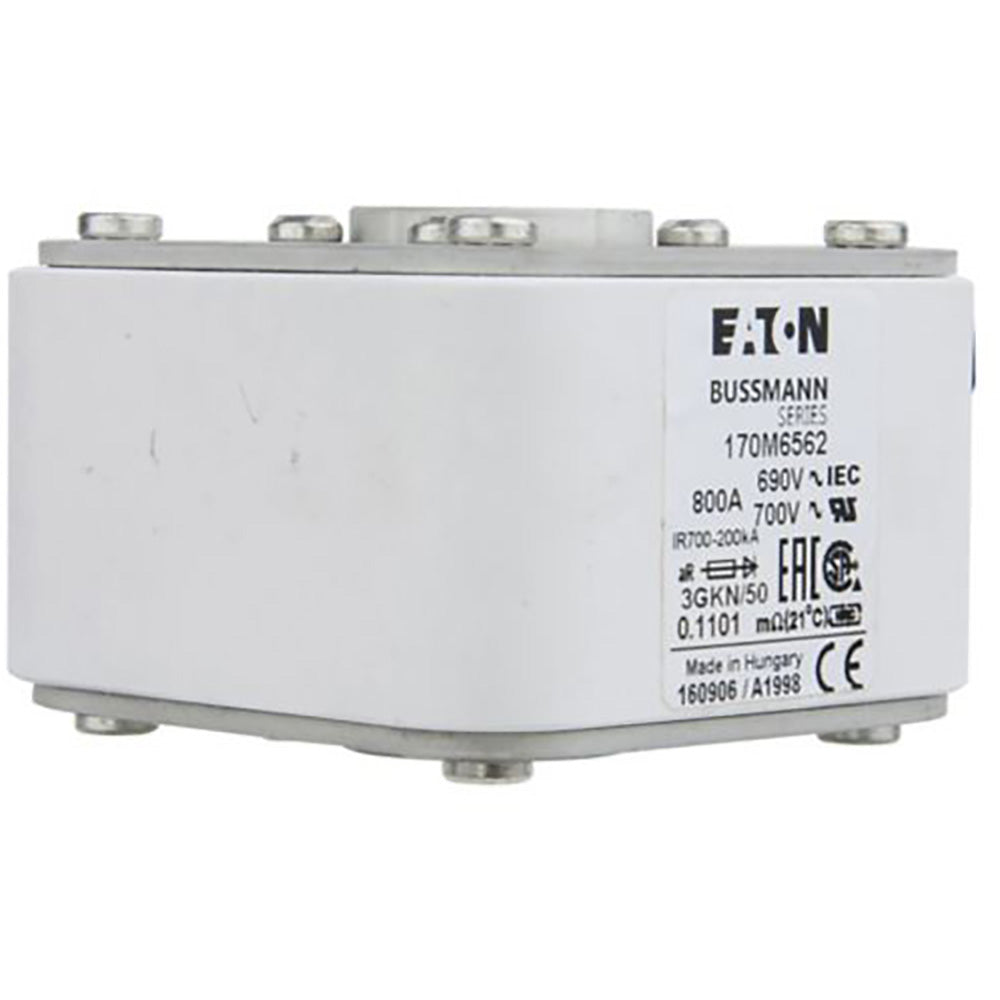

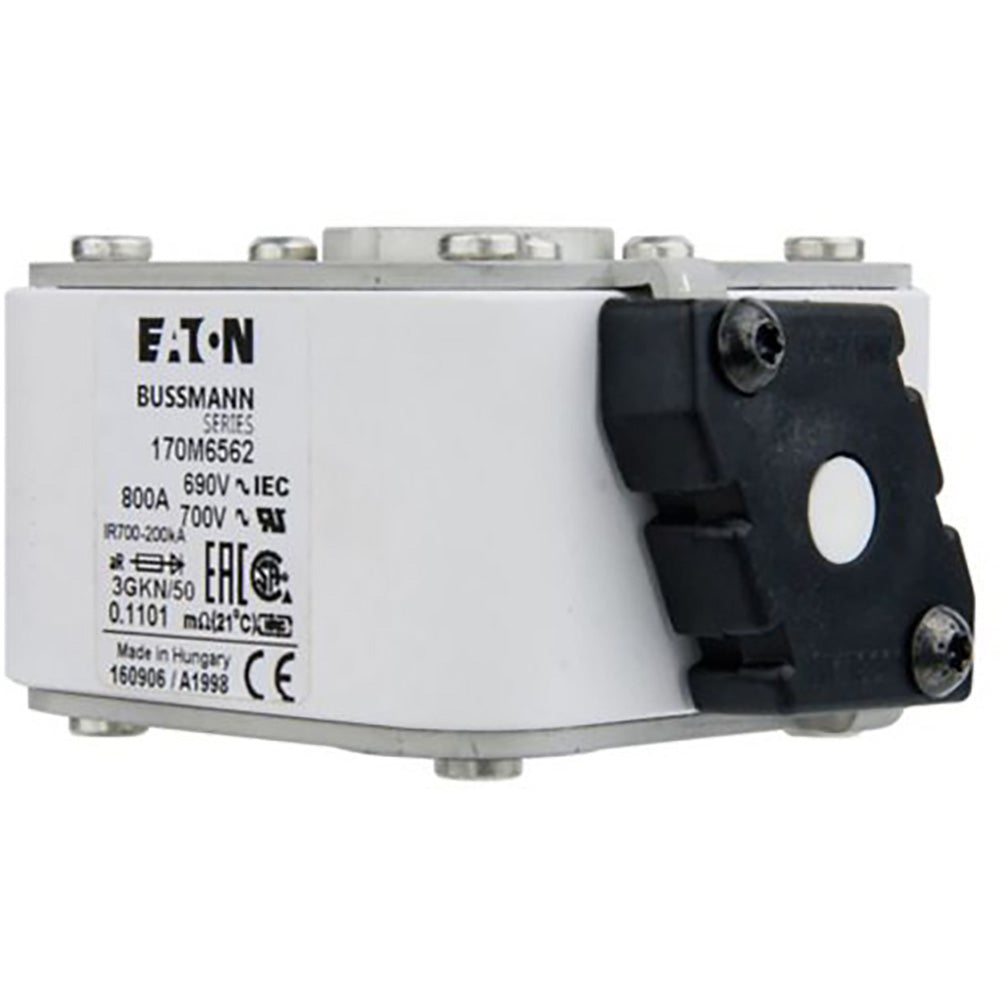

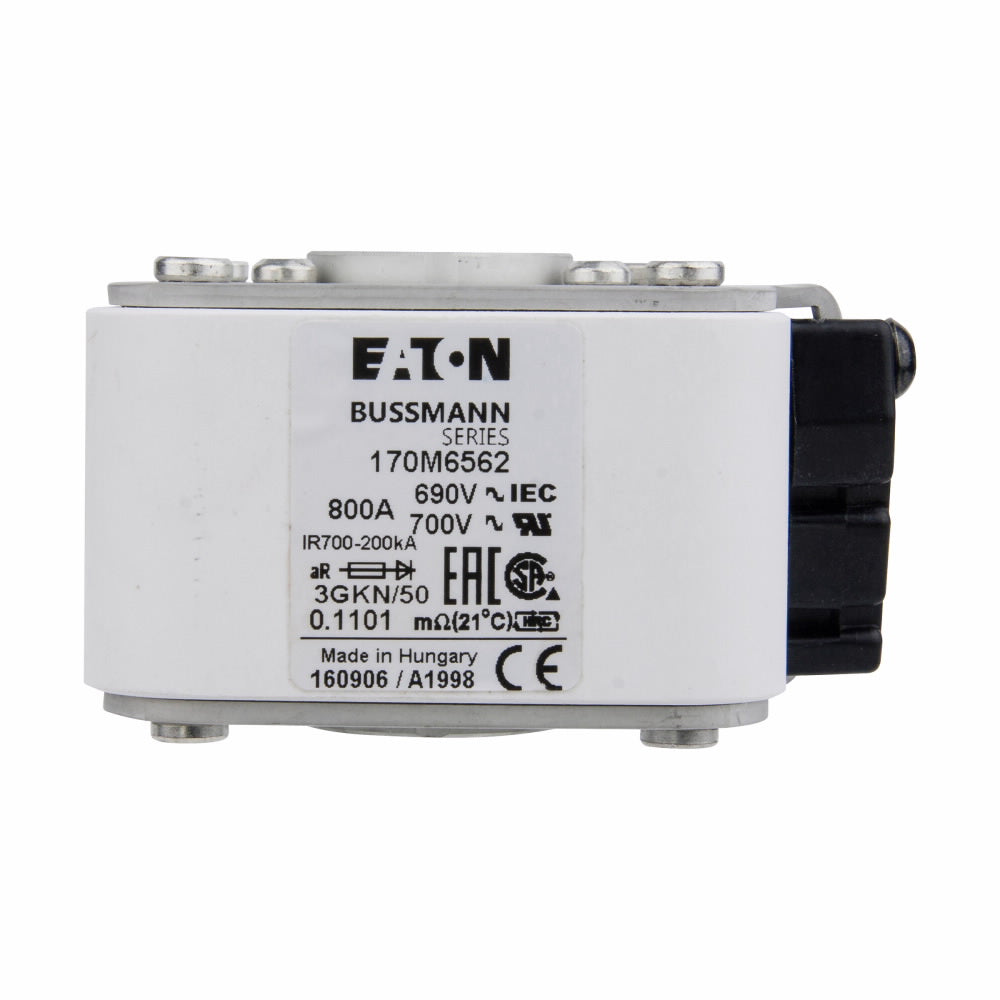

170M6562
170M6562 is a high speed square body fuse from the Eaton Bussmann series, designed for reliable circuit protection in demanding electrical environments. This fuse features a robust construction and a center fuse status indicator for easy monitoring.Engineered for high performance, the 170M6562 offers a current rating of 800A and a voltage rating of 690VAC. It is rated for an interrupt capacity of 200kAIC, making it suitable for applications requiring high fault current protection. The fuse is designed with flush end contacts and a threaded socket termination for secure mounting. It is recognized for both IEC and UL standards, ensuring compliance with international safety requirements.
- Part Number: 170M6562
- Manufacturer: Eaton
- Series: Bussmann Series
- Amperage Rating: 800A
- Voltage Rating AC: 690VAC
- Interrupt Rating: 200kAIC
- Mounting Type: Flush End Contact
- Termination Style: Threaded Socket
- Fuse Indicator: Center Fuse Status Indicator
- Class: aR
- Certifications: IEC Rated, UL Recognized
Specifications
- Part Number: 170M6562
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Type : SEMICONDUCTOR
- Voltage : 700
- Amperage : 800
- AIC rating : 200kA@700V
- Connection : Tapped US
- Class Rating : aR
Product Data
- UPC : 051712264587
- GTIN : 00051712264587
- Dimensions : 168 mm x 76 mm x 95 mm (Length/Depth x Height x Width)
- Weight : 0.63326667
