170M5813D - Eaton Bussmann Series High Speed Square Body Fuse 700A 690V AC 200kA Interrupt Rating

170M5813D

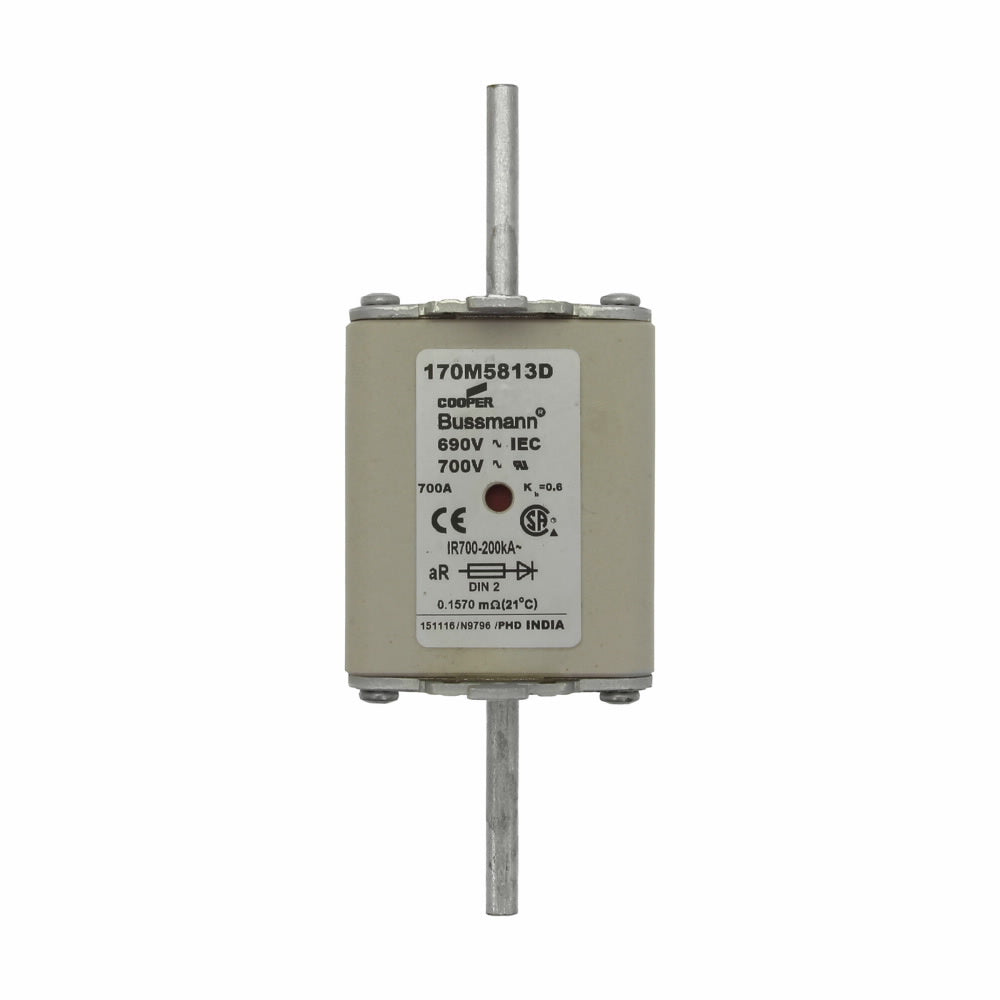

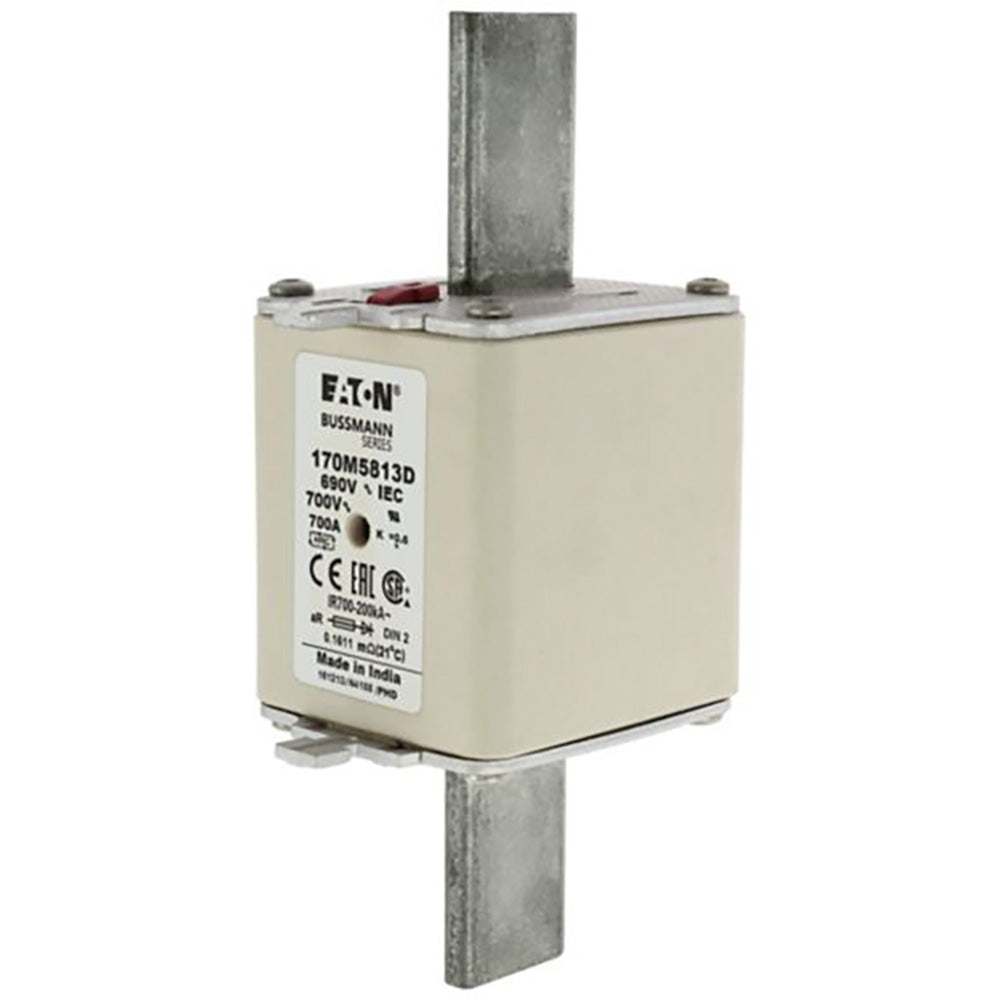

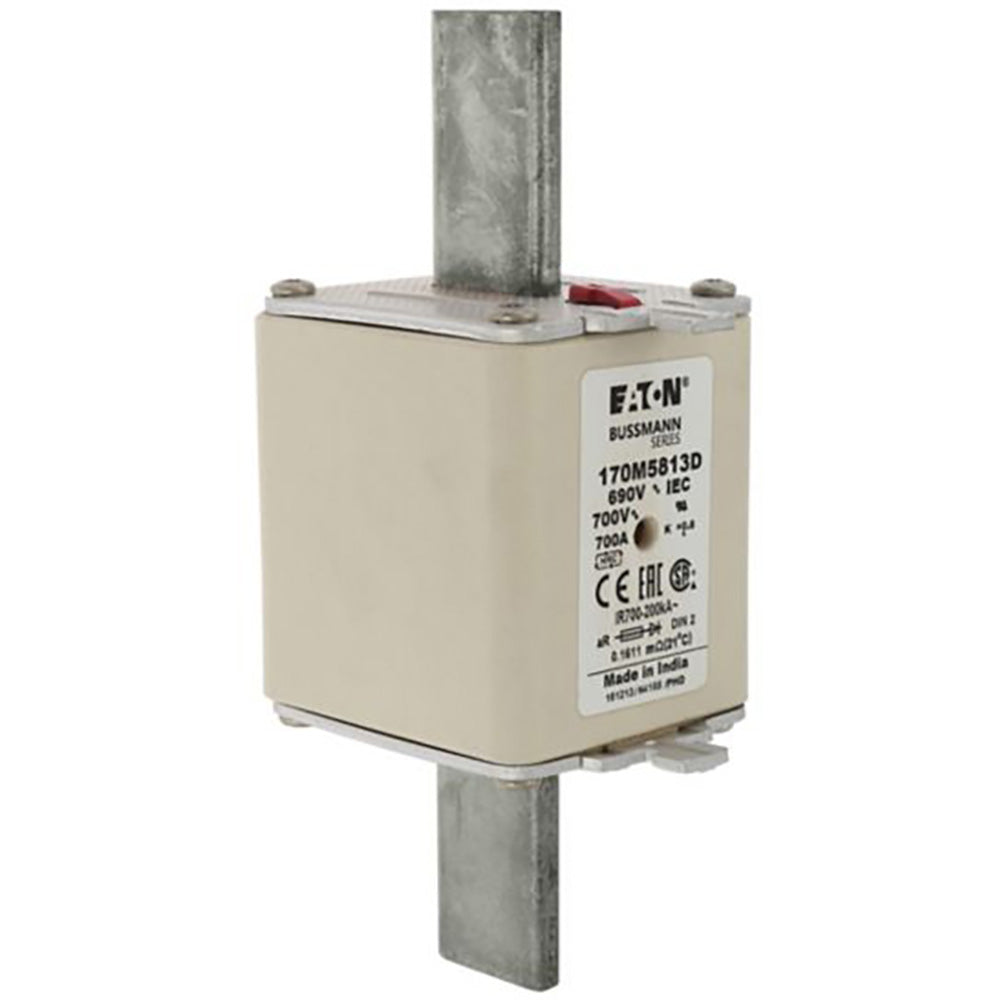

170M5813D is a high speed square body fuse from Eaton's Bussmann series designed for reliable circuit protection.

This fuse features a 700 ampere rating and is rated for 690 volts AC (IEC) and 700 volts AC (UL). It has a high interrupting capacity of 200,000 amperes (200 kA) ensuring robust protection in demanding electrical environments. The fuse includes a combination fuse status indicator and complies with UL Recognized and IEC standards. It is a Class aR fuse with a fuse size of 2 and a clearing I2T of 430000 at 660 V.

Key Specifications
• Amperage Rating: 700 A
• Voltage Rating: 690 V AC (IEC), 700 V AC (UL)
• Interrupt Rating: 200 kA
• Fuse Type: High Speed Square Body
• Fuse Size: 2
• Class: aR
• Current Type: AC
• Fuse Status Indicator: Combination
• Certifications: UL Recognized, IEC Rated
• Clearing (I2T): 430000 at 660 V

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: 170M5813D
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Type : DINTYPET
• Voltage : 690
• Amperage : 700
• AIC rating : 200kA@690V
• Connection : Knife Blade
• Class Rating : aR

Product Data

• UPC : 051712334983
• GTIN : 00051712334983
• Dimensions : 150 mm x 72 mm x 54 mm (Length/Depth x Height x Width)
• Weight : 1.5548
