Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description

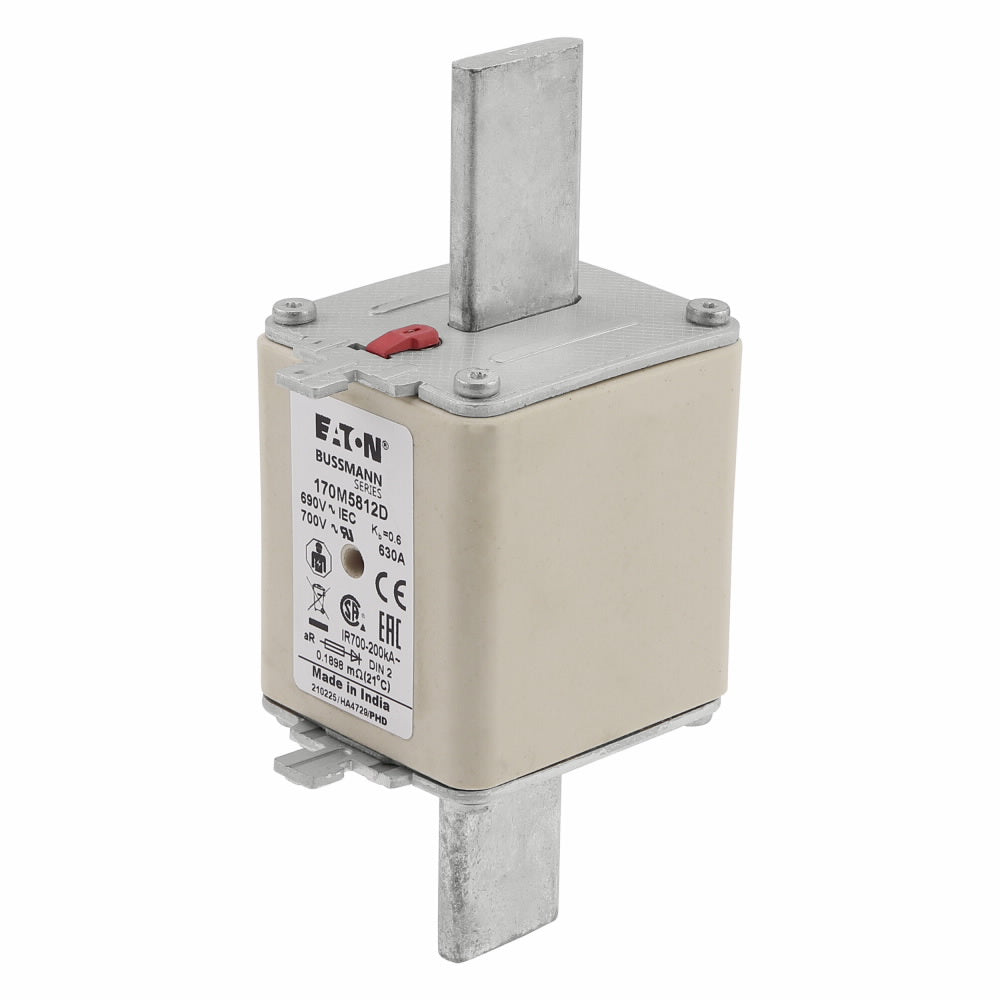

170M5812D
170M5812D is an Eaton Bussmann series high speed square body fuse designed for semiconductor and power converter protection.170M5812D features a 630 ampere rating, 690 volt AC rating (700V UL), and a 200 kA interrupt rating with a combination fuse status indicator. It has a Class aR utilization category with DIN 43-620 blade end connections and a square body knife blade contact design.
- Amperage Rating: 630 A
- Voltage Rating: 690 V AC (700 V UL)
- Interrupt Rating: 200 kAIC
- Fuse Class: aR (semiconductor protection)
- Fuse Size: 2
- Fuse Shape: Square body with knife blade contacts
- Connection Type: DIN 43-620 blade end x DIN 43-620 blade end
- Fuse Indicator: Combination fuse status indicator
- Certifications: UL Recognized, IEC Rated, CE Marked, RoHS Compliant
- Watt Losses: 42 W
- Application: Semiconductor, DC common bus, DC drives, power converters/rectifiers
Specifications
- Part Number: 170M5812D
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Type : DINTYPET
- Voltage : 690
- Amperage : 630
- AIC rating : 200kA@690V
- Connection : Knife Blade
- Class Rating : aR
Product Data
- UPC : 05171233452
- GTIN : 00051712334525
- Dimensions : 150 mm x 72 mm x 54 mm (Length/Depth x Height x Width)
- Weight : 1.5617
