170M5566 - Eaton Bussmann High Speed Square Body Fuse 1000A 690V AC aR Class

170M5566

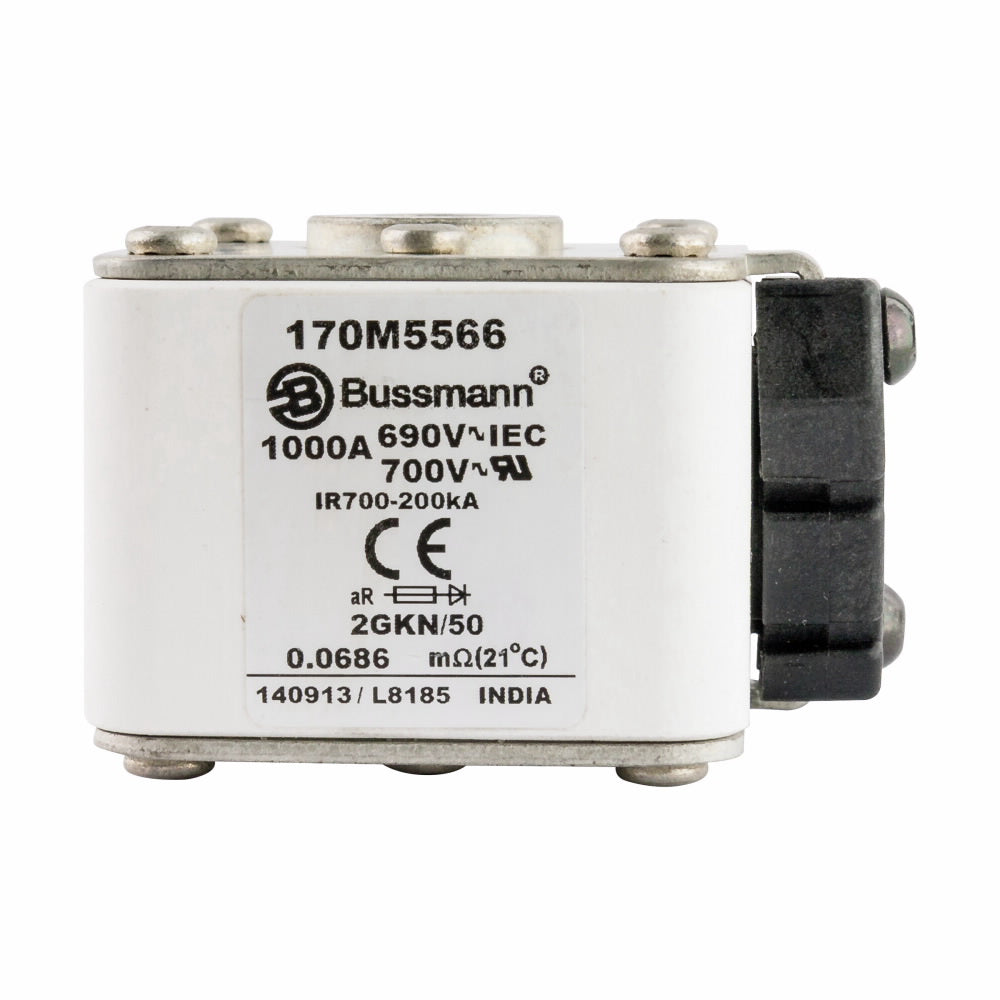

170M5566 is a high speed square body fuse from Eaton's Bussmann series designed for low voltage circuit protection.

This fuse features a 1000 ampere rating and is rated for 690 volts AC (IEC) and 700 volts AC (UL). It has a high interrupt rating of 200 kAIC, ensuring reliable protection in industrial and electrical applications. The fuse is classified as aR (Class aR) with a size 2 form factor and includes a type K indicator and US thread mounting. Its compact dimensions are approximately 61 x 77 x 51 mm.

Key Specifications
• Amperage: 1000 A
• Voltage Rating: 690 V AC (IEC), 700 V AC (UL)
• Interrupt Rating: 200 kAIC
• Fuse Type: High Speed Square Body
• Class: aR (Class aR)
• Size: 2
• Dimensions: 61 x 77 x 51 mm
• Indicator: Type K
• Mounting: US Thread
• Certifications: IEC, UL

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: 170M5566
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Type : GKN
• Voltage : 700
• Amperage : 1000
• AIC rating : 200kA@700V
• Connection : Tapped US
• Class Rating : aR

Product Data

• UPC : 051712261678
• GTIN : 00051712261678
• Dimensions : 168 mm x 80 mm x 124 mm (Length/Depth x Height x Width)
• Weight : 1.288
