Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage
Description

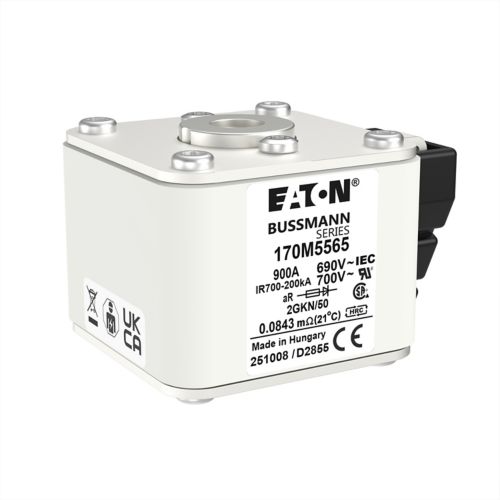

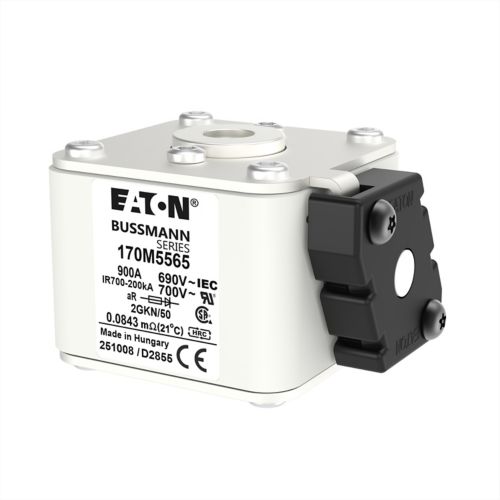

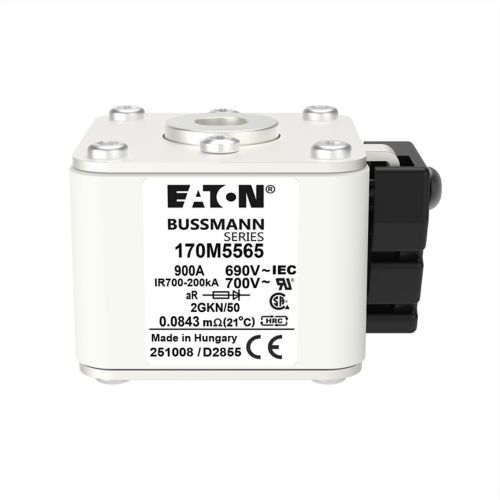

170M5565
170M5565 is a high speed square body fuse from Eaton's Bussmann series designed for reliable circuit protection.170M5565 features a 900 ampere rating and 690 volt AC capacity with a size 2 frame and aR (partial range) classification. It includes a center fuse status indicator and requires a holder for mounting. This fuse is IEC rated, UL recognized, CE marked, and RoHS compliant, ensuring international safety and quality standards. It has a breaking capacity of 200 kA and uses US thread design.
- Key Specifications
- Amperage: 900 A
- Voltage Rating: 690 V AC
- Fuse Type: High Speed Square Body
- Size: 2 (61 x 77 x 51 mm)
- Interrupt Rating: 200 kA
- Mounting Type: Requires Holder
- Fuse Indicator: Center Fuse Status Indicator
- Standards: IEC Rated, UL Recognized, CE Marked, RoHS Compliant
- Thread Type: US Thread
- Classification: aR (Partial Range)
Specifications
- Part Number: 170M5565
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage
- Section : High speed square body fuse
- Type : GKN
- Voltage : 700
- Amperage : 900
- AIC rating : 200kA@700V
- Connection : Tapped US
- Class Rating : aR
Product Data
- UPC : 051712261661
- Dimensions : 168 mm x 80 mm x 124 mm (Length/Depth x Height x Width)
- Weight : 1.288
