Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description
170M4610

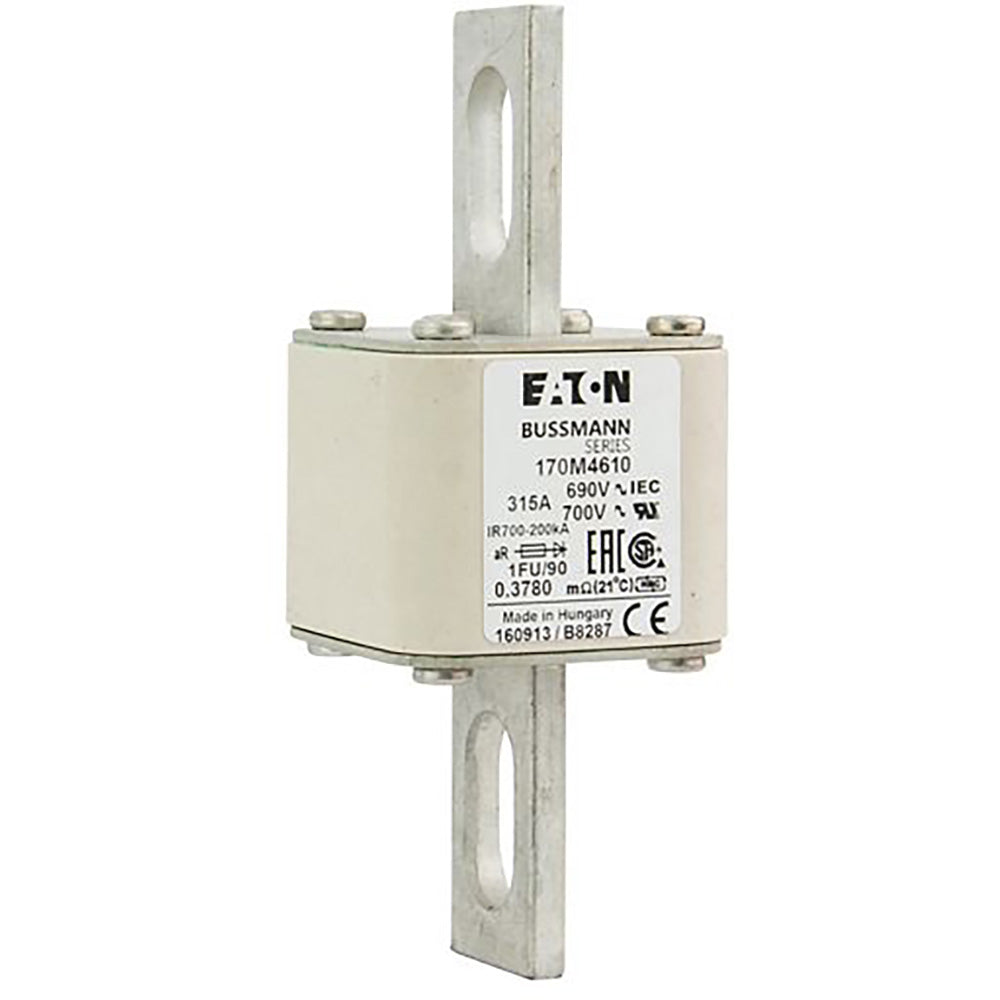

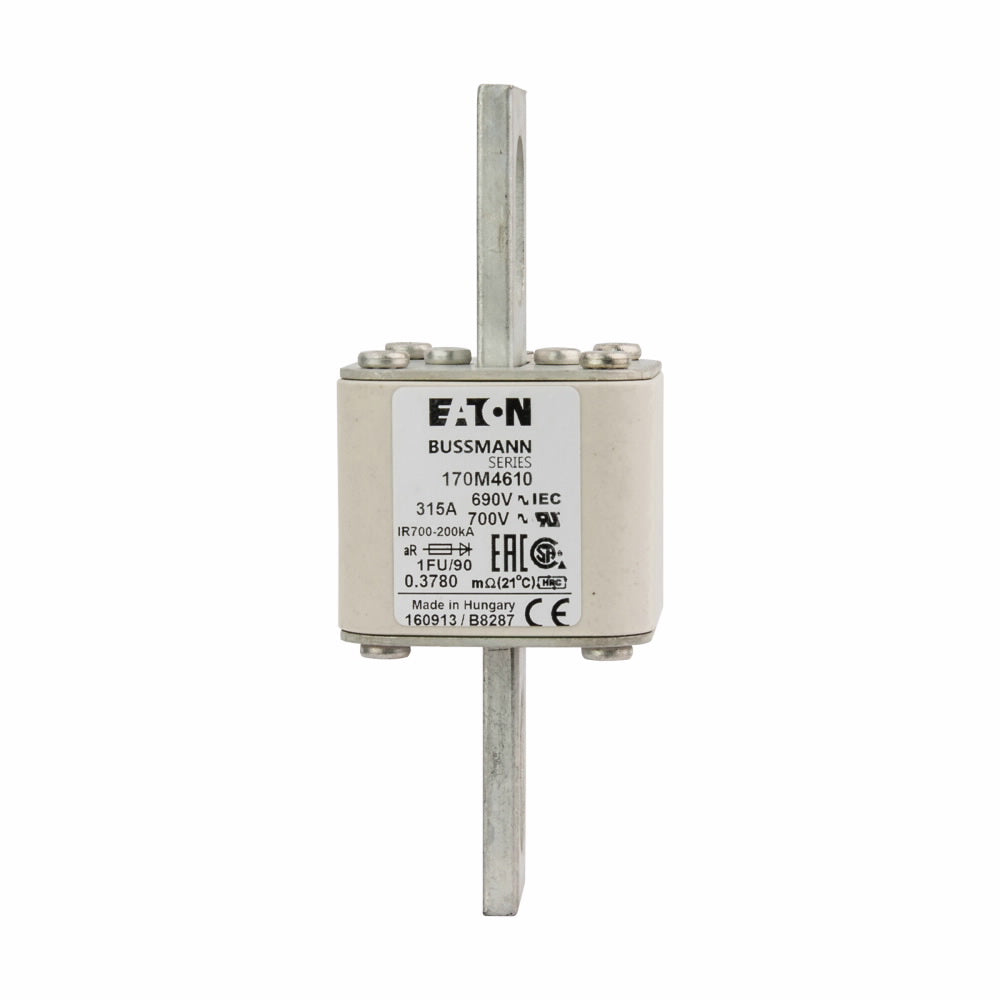

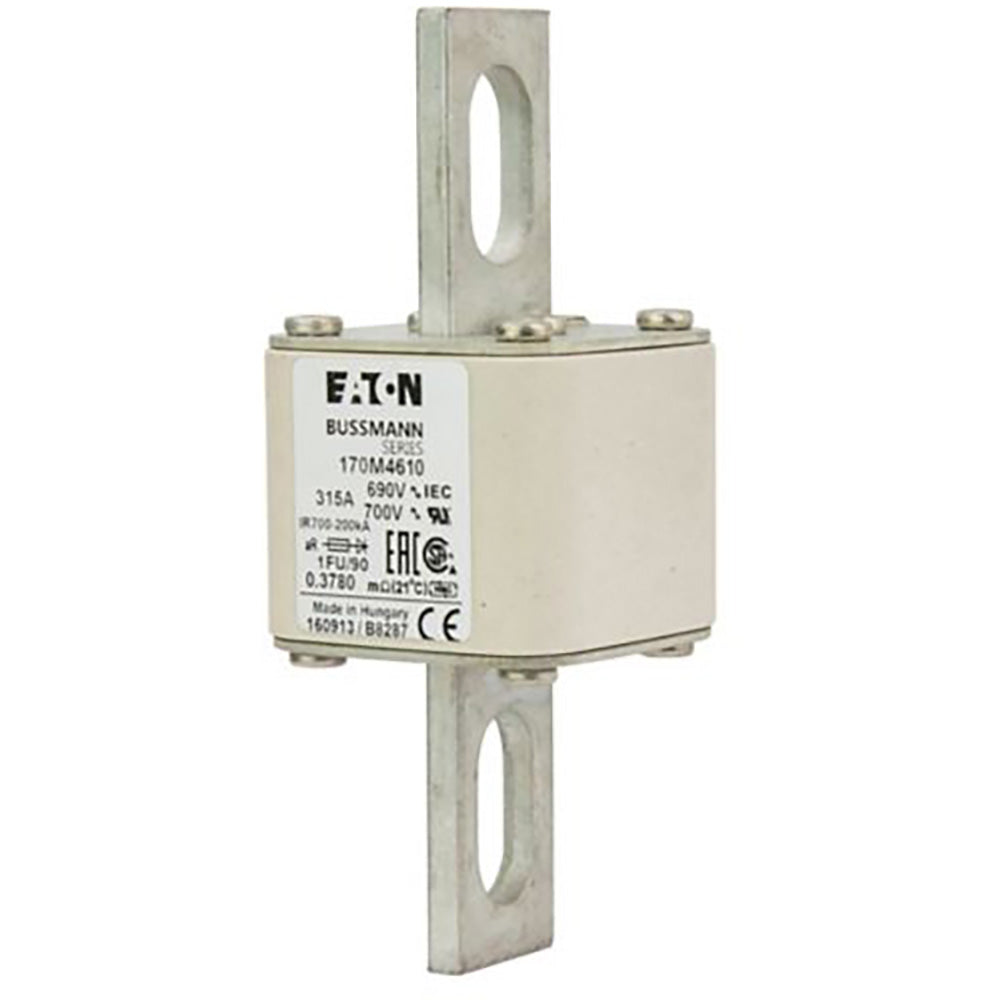

170M4610 is a high speed square body fuse from Eaton's Bussmann series designed for low voltage applications.170M4610 features a 315 ampere rating and is rated for 690 volts AC. It is a size 1 fuse-link with a high interrupting rating suitable for protecting electrical circuits against overcurrents. The fuse has a center-to-center connection distance of 90 mm and complies with IEC and UL standards, ensuring reliable performance and safety.
- Amperage: 315 A
- Voltage Rating: 690 V AC
- Fuse Size: 1
- Type: High Speed Fuse-Link
- Mounting: 90 mm fixing centers
- Interrupt Rating: 200 kA at 690 V
- Dimensions: 53 x 69 x 136 mm
- Standards: IEC, UL
- Characteristic: aR (partial range)
Specifications
- Part Number: 170M4610
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Section : High speed square body fuse
- Type : USSTYLE
- Voltage : 690
- Amperage : 315
- AIC rating : 200kA@690V
- Connection : Bolt On
- Class Rating : aR
Product Data
- UPC : 051712799126
- GTIN : 00051712799126
- Dimensions : 62 mm x 142 mm x 230 mm (Length/Depth x Height x Width)
- Weight : 0.3933
