Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description
170M4561

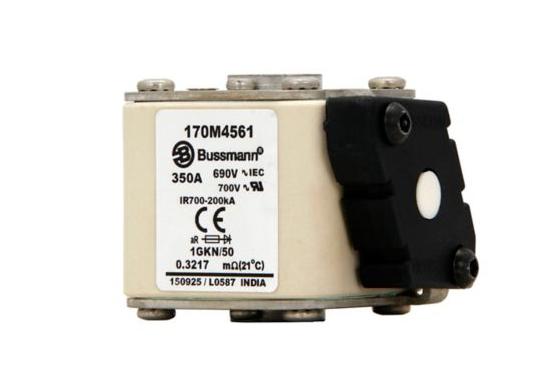

170M4561 is a high-speed square body fuse from Eaton Bussmann, designed for reliable circuit protection in demanding industrial and commercial applications. This fuse features a 350A current rating, 700V AC voltage rating, and a 200kA interrupting capacity, making it suitable for heavy-duty electrical systems. It is constructed with a square body and flush end contacts, and includes a center fuse status indicator for easy monitoring. The fuse is classified as Class aR and is designed for use with appropriate fuse holders.
- Part Number: 170M4561
- Manufacturer: Eaton Bussmann
- Amperage Rating: 350A
- Voltage Rating: 700V AC (UL), 690V AC (IEC)
- Interrupting Rating: 200kA
- Fuse Type: Square Body, High Speed
- Class: aR
- Mounting Type: Requires Holder
- Fuse Indicator: Center Status Indicator
- Series: 170M
- Application: Industrial, Commercial
- Standards: UL, IEC
Specifications
- Part Number: 170M4561
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Section : High speed square body fuse
- Type : GKN
- Voltage : 700
- Amperage : 350
- AIC rating : 200kA@700V
- Connection : Tapped Metric
- Class Rating : aR
Product Data
- UPC : 051712812108
- GTIN : 00051712812108
- Dimensions : 73 mm x 52 mm x 170 mm (Length/Depth x Height x Width)
- Weight : 0.91386667
