Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description
170M4414

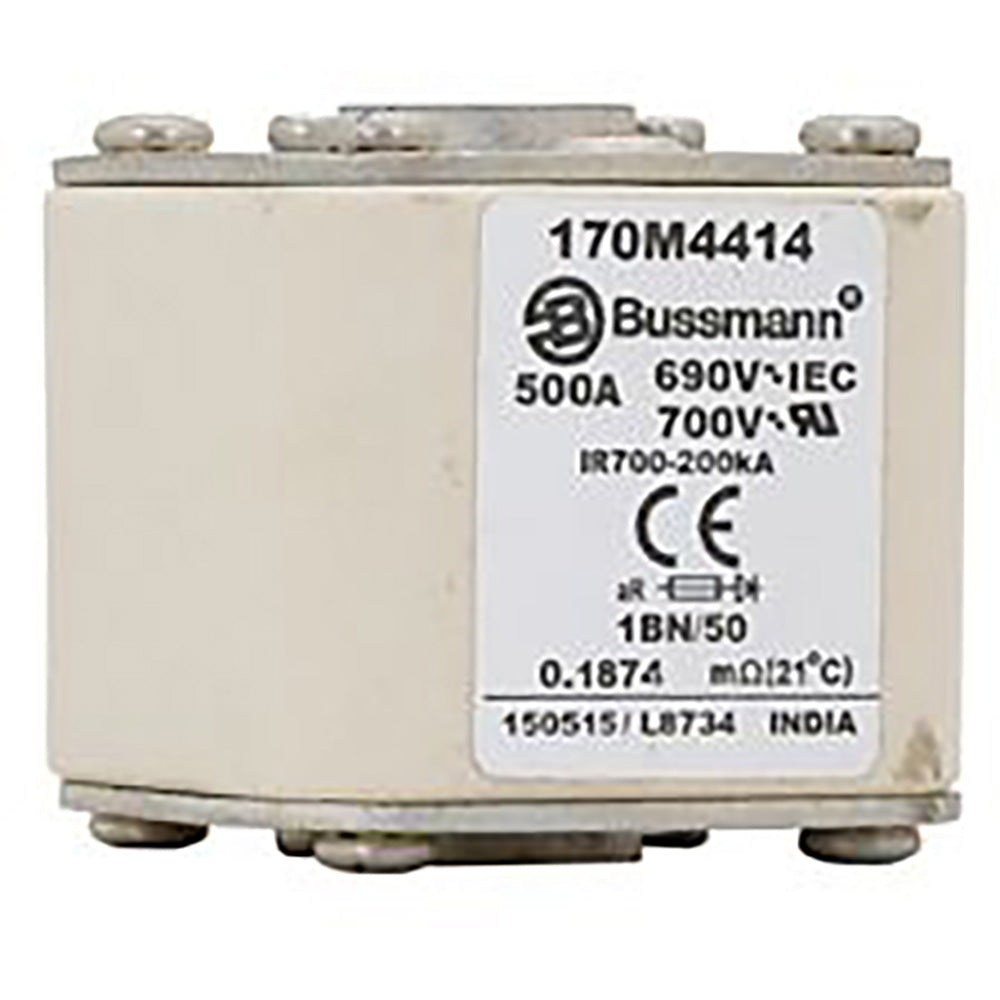

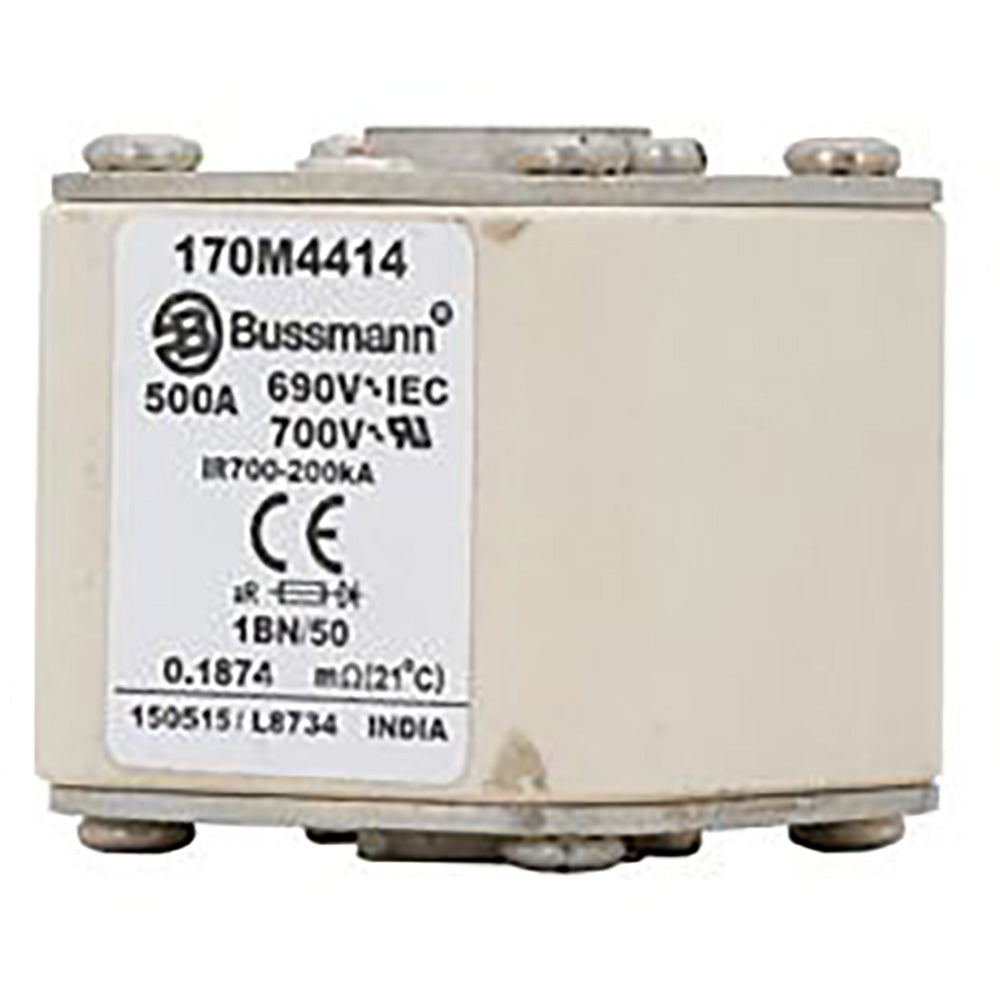

170M4414 is an Eaton Bussmann series high speed square body fuse designed for low voltage applications.This fuse features a 500 ampere rating and is rated for 690 volts (IEC) and 700 volts (UL). It has a 200 kA interrupting rating and includes a top fuse status indicator for easy visual confirmation of fuse condition. The fuse size is 1 with a flush end design and is classified as Class aR.
- Key Specifications
- Amperage Rating: 500 A
- Voltage Rating: 690 V (IEC), 700 V (UL)
- Interrupt Rating: 200 kA
- Fuse Size: 1
- Fuse Type: High Speed Square Body
- Fuse Status Indicator: Top fuse status indicator
- End Type: Flush end
- Class: aR
- Poles: 1
- Part Number: 170M4414
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Type : B
- Voltage : 690
- Amperage : 500
- AIC rating : 200kA@690V
- Connection : Tapped Metric
- Class Rating : aR
- UPC : 05171225873
- GTIN : 00051712258739
- Dimensions : 107 mm x 63 mm x 53 mm (Length/Depth x Height x Width)
- Weight : 0.8786
