Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description

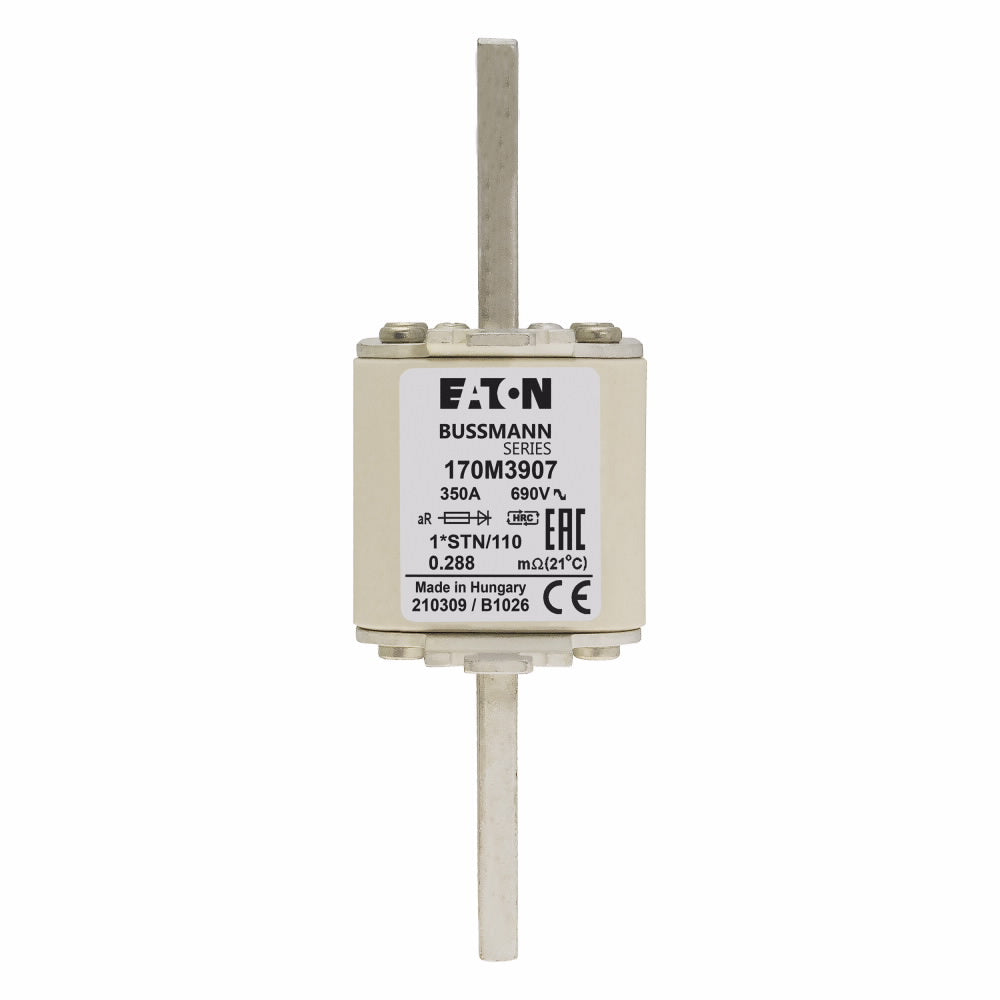

170M3907
170M3907 is a high speed square body fuse from Eaton's Bussmann series designed for semiconductor protection.This 350 amp fuse features a 690 VAC voltage rating and aR utilization category for accompanied semiconductor protection. It has a square body with knife blade contacts, is non-indicating, and complies with RoHS and CE standards. The fuse is UL recognized and IEC rated, suitable for high-speed circuit protection applications.
- Amperage Rating: 350 A
- Voltage Rating: 690 VAC (IEC), 700 V (UL)
- Fuse Type: High Speed, aR (semiconductor protection)
- Body Style: Square body with knife blade contacts
- Fuse Indicator: Non-indicating
- Certifications: RoHS Compliant, CE Marked, UL Recognized, IEC Rated
- Series: Bussmann 170M
- Mounting Type: Blade style (square body)
- Interrupt Rating: High interrupting capacity
Specifications
- Part Number: 170M3907
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Voltage : 690
- Amperage : 350
- AIC rating : 200kA@690V
- Connection : European Blade
- Class Rating : SB-0
Product Data
- UPC : 051712562577
- GTIN : 00051712562577
- Dimensions : 305 mm x 65 mm x 145 mm (Length/Depth x Height x Width)
- Weight : 0.7337
