Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description
170M3765

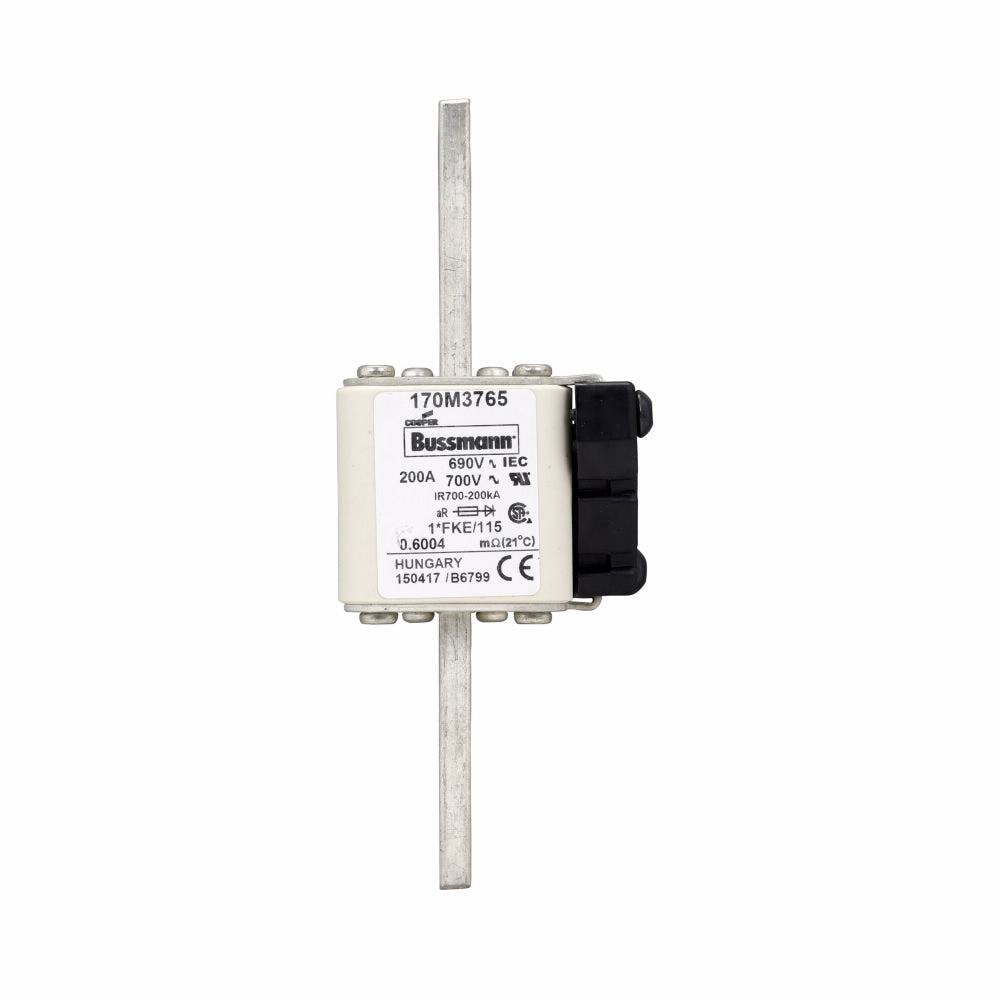

170M3765 is an Eaton Bussmann series high speed square body fuse designed for low voltage applications.This fuse-link features a 200 ampere current rating and a voltage rating of 690 volts AC. It is a compact size 1 fuse with dimensions of 45 x 59 x 148 mm. The fuse has a high speed characteristic with aR (partial range) protection and includes a single indicator. It is UL and IEC certified, suitable for semiconductor and other high-speed protection needs.
- Key Specifications
- Manufacturer: Eaton
- Series: Bussmann
- Type: High Speed Square Body Fuse
- Current Rating: 200 A
- Voltage Rating: 690 V AC
- Interrupt Rating: 200 kA
- Size: Compact Size 1
- Characteristic: aR (partial range)
- Certifications: UL, IEC
- Indicator: Single
- Mounting Type: Blade End
- Part Number: 170M3765
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Type : USSTYLE
- Voltage : 690
- Amperage : 200
- AIC rating : 200kA@690Vac
- Connection : Bolt On
- Class Rating : aR
- UPC : 051712257220
- GTIN : 00051712257220
- Dimensions : 92 mm x 60 mm x 163 mm (Length/Depth x Height x Width)
- Weight : 0.4048
