Product Info
- Manufacturer:Eaton
- Sub-Category:Medium Voltage Fuse
Description

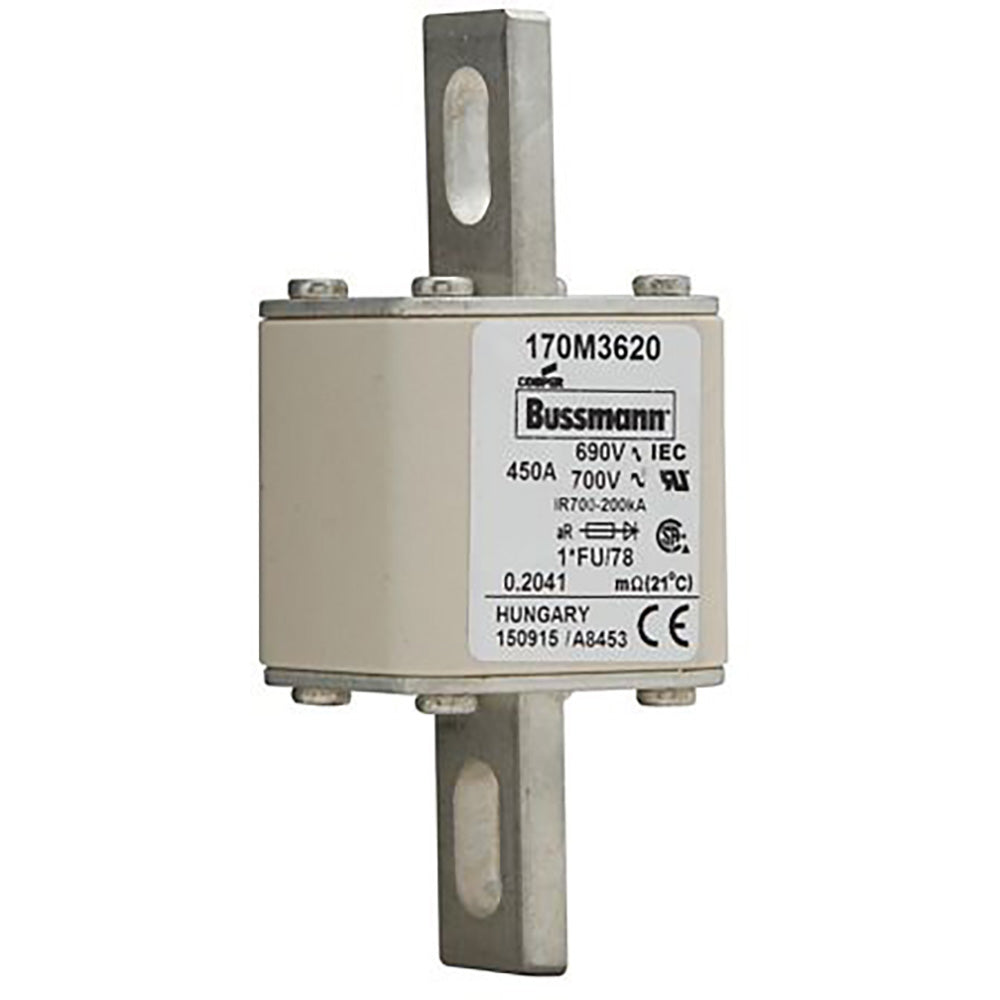

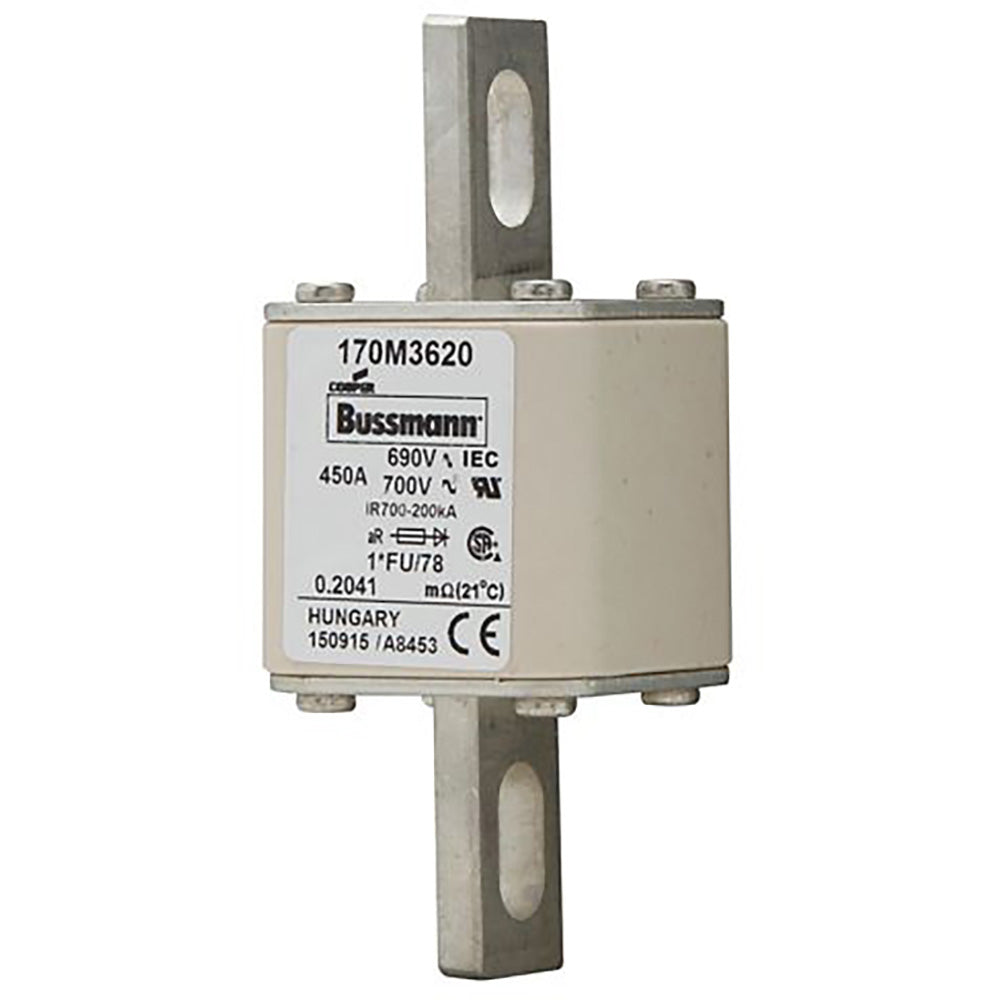

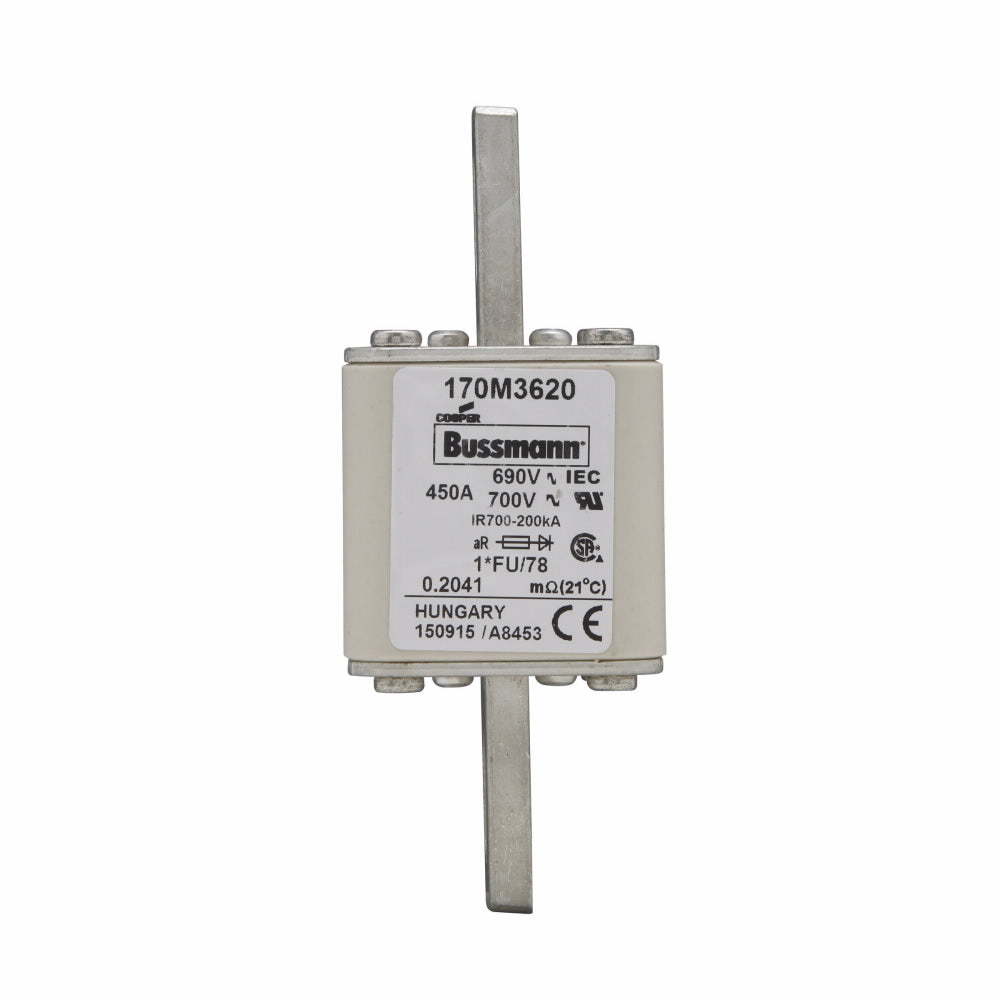

170M3620
170M3620 is a high speed square body fuse from Eaton designed for semiconductor protection and industrial electrical applications.This Eaton Bussmann series fuse features a 450 ampere rating, 690 volts AC voltage rating, and a compact square body design measuring 45 x 45 x 110 mm. It is a class aR fuse with a high interrupt rating suitable for protecting sensitive electronic components. The fuse has bolt-down termination with blade ends and meets IEC and UL certifications.
- Current Rating: 450 A
- Voltage Rating: 690 V AC
- Fuse Type: High Speed Square Body
- Series: 170M Type FU Series
- Body Dimensions: 45 x 45 x 110 mm
- Interrupt Rating: 200 kAIC
- Termination Type: Bolt Down with Blade Ends
- Class: aR
- Certifications: IEC, UL
- Application: Semiconductor Protection
Specifications
- Part Number: 170M3620
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Medium Voltage Fuse
- Type : USSTYLE
- Voltage : 700
- Amperage : 450
- AIC rating : 200kA@690V
- Connection : Bolt On
- Class Rating : aR
Product Data
- UPC : 051712799102
- GTIN : 00051712799102
- Dimensions : 305 mm x 65 mm x 145 mm (Length/Depth x Height x Width)
- Weight : 0.7337
