Product Info
- Manufacturer:Eaton
- Sub-Category:Medium Voltage Fuse
Description

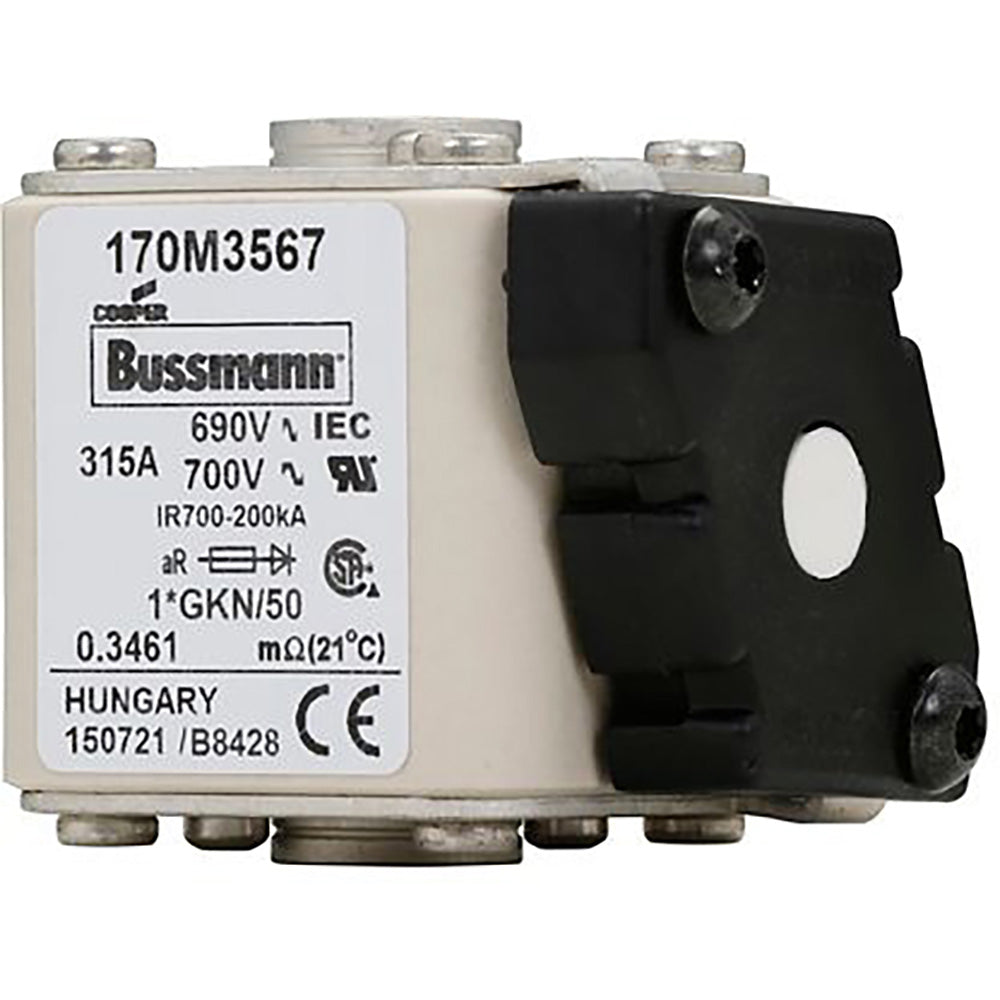

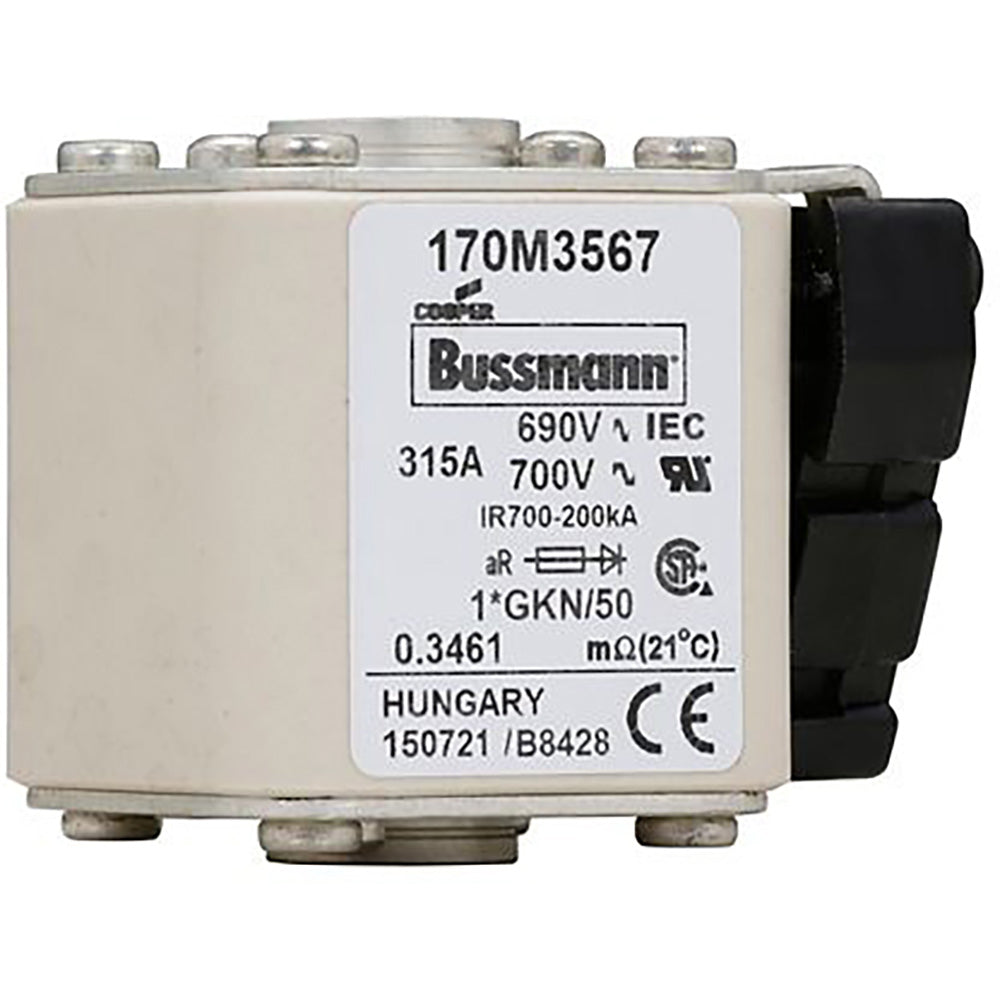

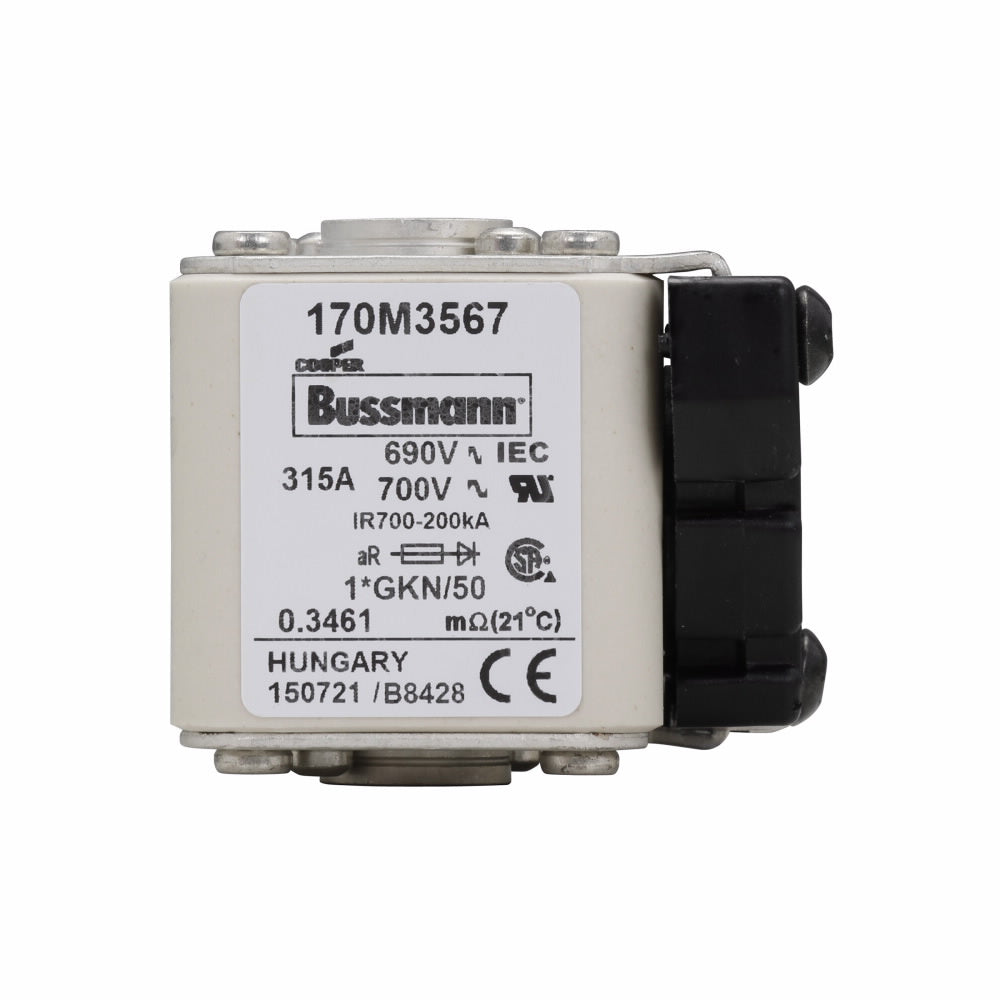

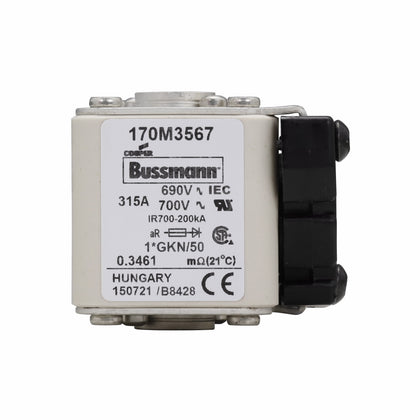

170M3567
170M3567 is a high speed square body fuse from Eaton's Bussmann series designed for reliable circuit protection.This fuse features a 315 ampere rating and a voltage rating of 700 volts AC, with a breaking capacity of 200 kiloamperes. It includes a center fuse status indicator and insulated metal gripping lugs (IMGL) for safe handling. The fuse requires a holder for mounting and is classified as Class aR, suitable for semiconductor protection applications.
- Key Specifications
- Amperage Rating: 315 A
- Voltage Rating: 700 V AC
- Interrupt Rating: 200 kA
- Fuse Type: High Speed Square Body
- Class: aR
- Mounting Type: Requires Holder
- Fuse Indicator: Center Fuse Status Indicator
- Insulated Metal Gripping Lugs (IMGL)
- Termination Style: Threaded Socket
- Mounting Style: Screw
- Part Number: 170M3567
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Medium Voltage Fuse
- Section : High speed square body fuse
- Type : NH
- Voltage : 700
- Amperage : 315
- AIC rating : 200kA@690Vac
- Connection : Flush
- Class Rating : aR
- UPC : 051712256582
- GTIN : 00051712256582
- Dimensions : 193 mm x 47 mm x 106 mm (Length/Depth x Height x Width)
- Weight : 0.6141
