Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description
170M3469

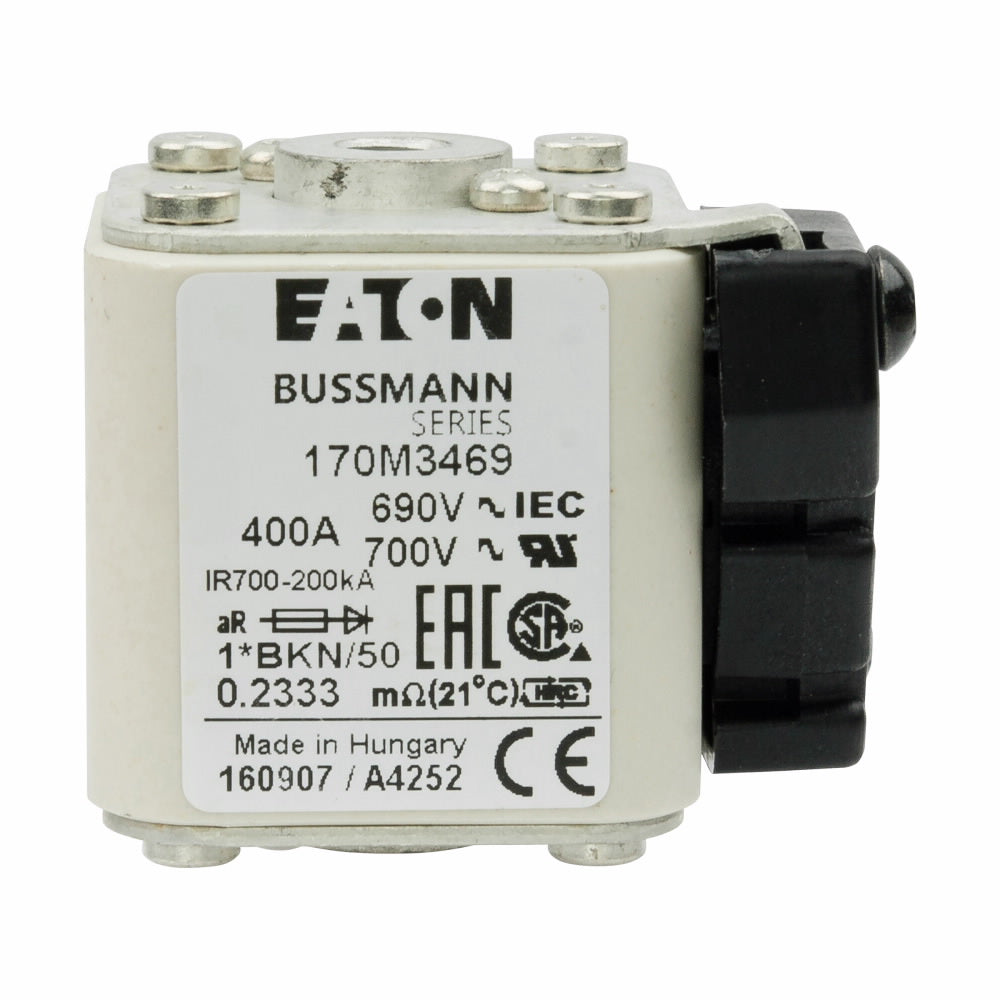

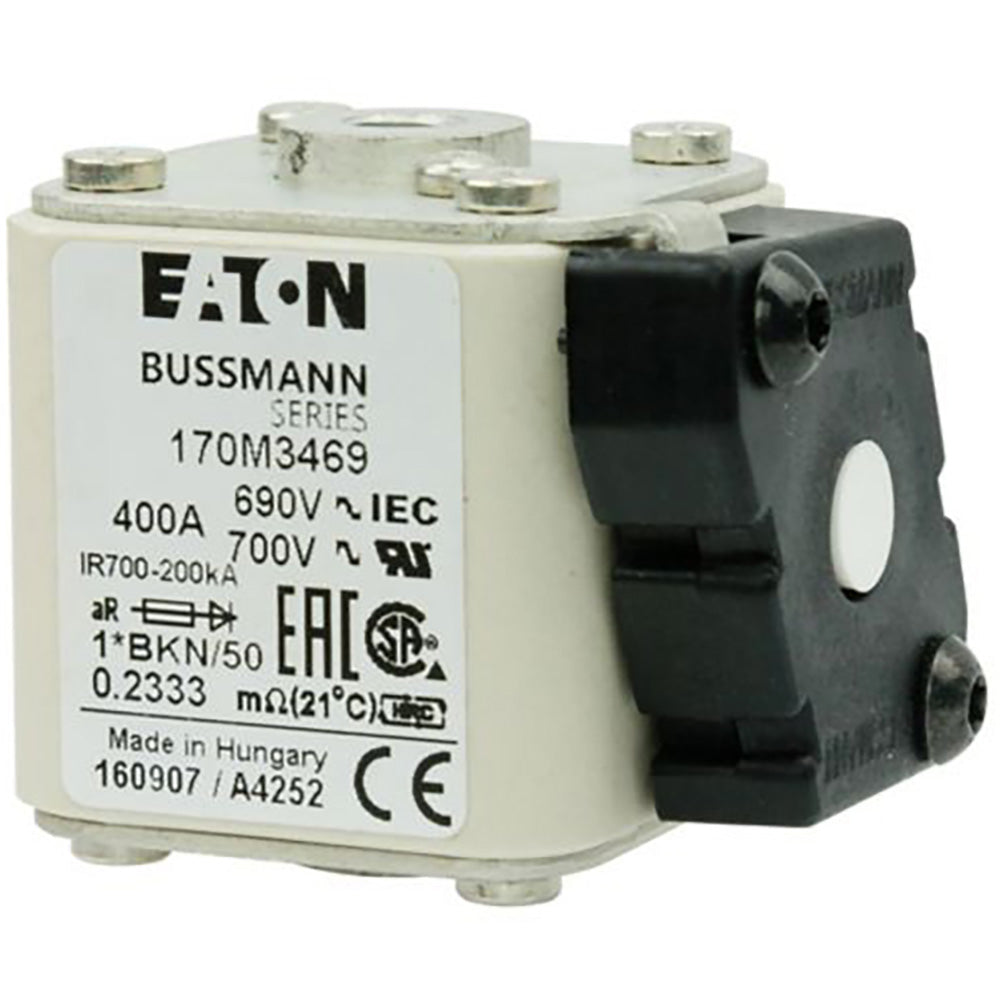

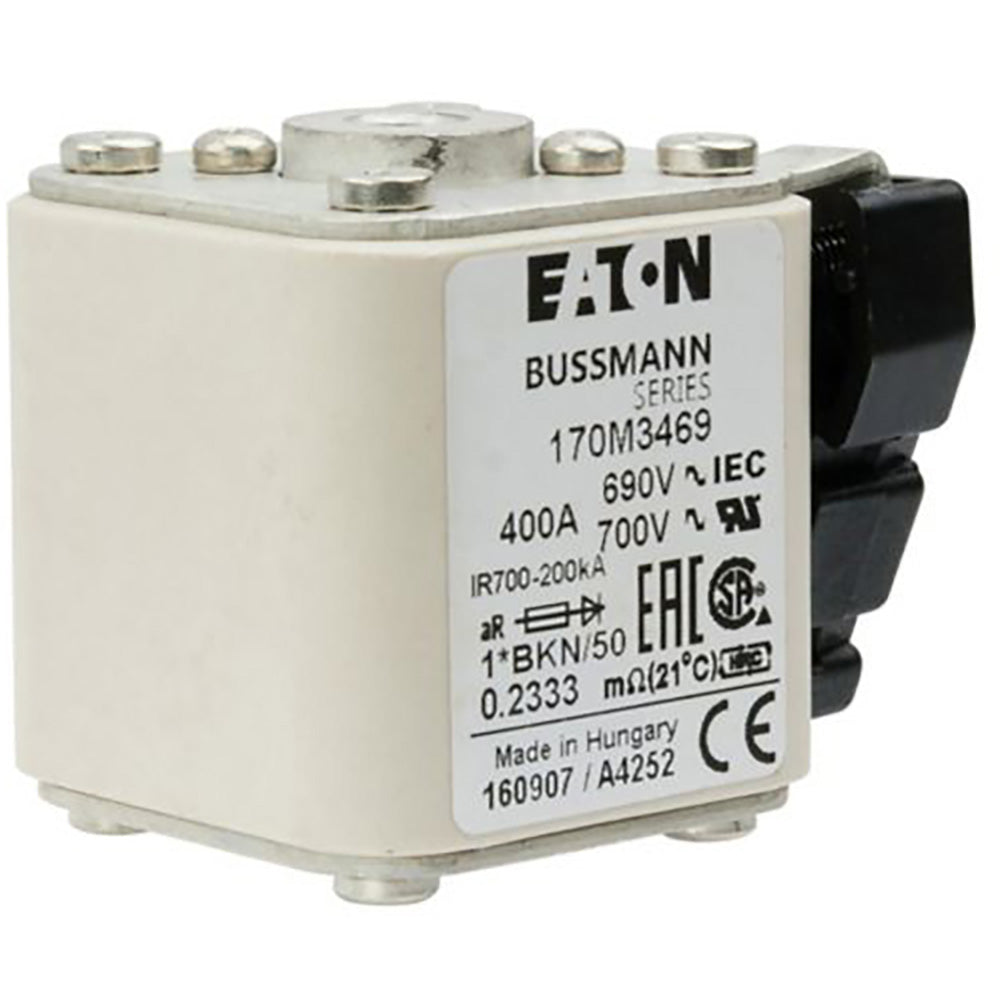

170M3469 is an Eaton Bussmann series high speed square body fuse designed for semiconductor protection applications in industrial and electrical systems.
This compact fuse features a square body with flush end contacts and is rated for 400A at 690V AC (700V UL). It delivers a 200 kAIC interrupt rating and is classified as Class aR for accompanied semiconductor protection. The fuse meets both IEC and UL standards with CE marking compliance. It has a pre-arc I2t of 77 and a clearing I2t of 105000 at 660V, with watt losses of 69W.
- Amperage Rating: 400A
- Voltage Rating: 690V AC (IEC) / 700V AC (UL)
- Interrupt Rating: 200 kAIC
- Fuse Class: aR (accompanied semiconductor protection)
- Fuse Type: Square body, flush mounting
- Certifications: IEC Rated, UL, CE Marked
- Pre-Arc I2t: 77
- Clearing I2t: 105000 at 660V
- Watt Losses: 69W
- Dimensions: 60mm L x 43mm W x 50mm H
- Weight: 266.5g
- Application: Semiconductor protection
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: 170M3469
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Type : NH
- Voltage : 690
- Amperage : 400
- AIC rating : 200kA@690Vac
- Connection : Flush
- Class Rating : aR
Product Data
- UPC : 051712217194
- GTIN : 00051712217194
- Dimensions : 60 mm x 50 mm x 43 mm (Length/Depth x Height x Width)
- Weight : 0.61295
