Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description
170M3465

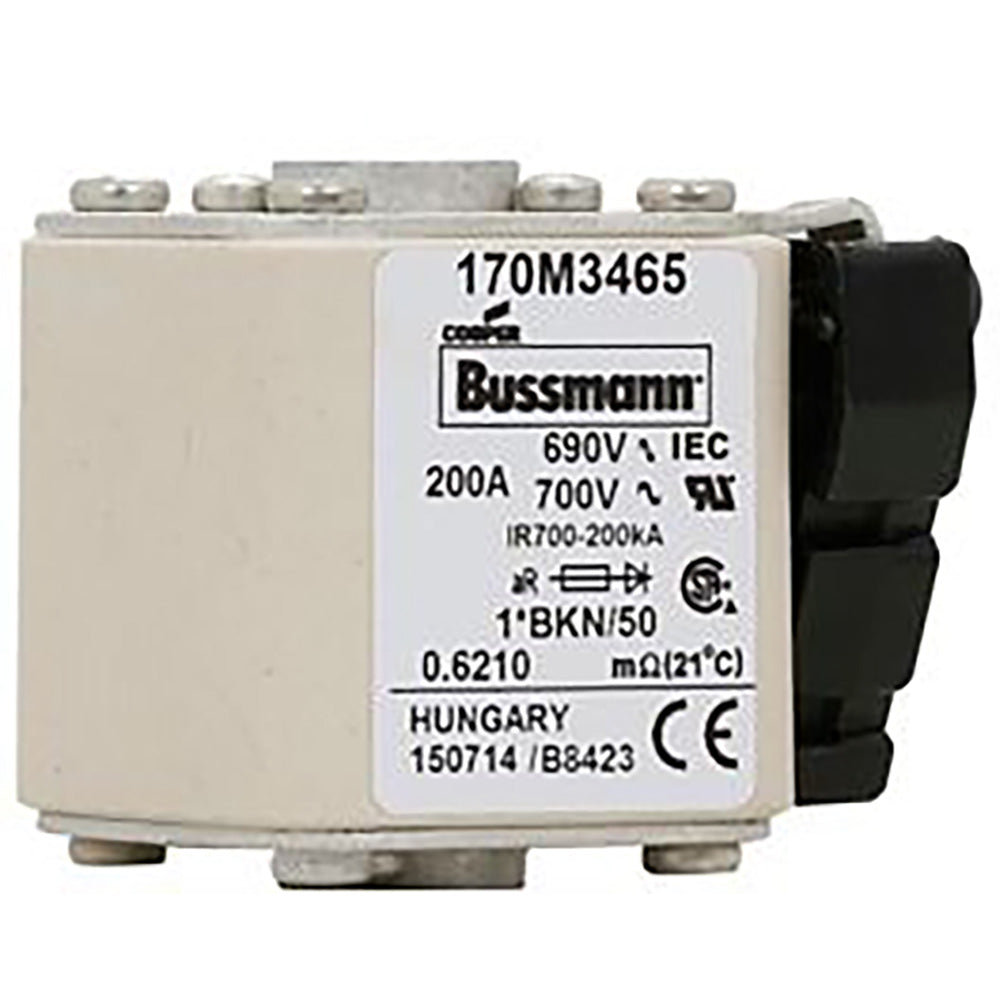

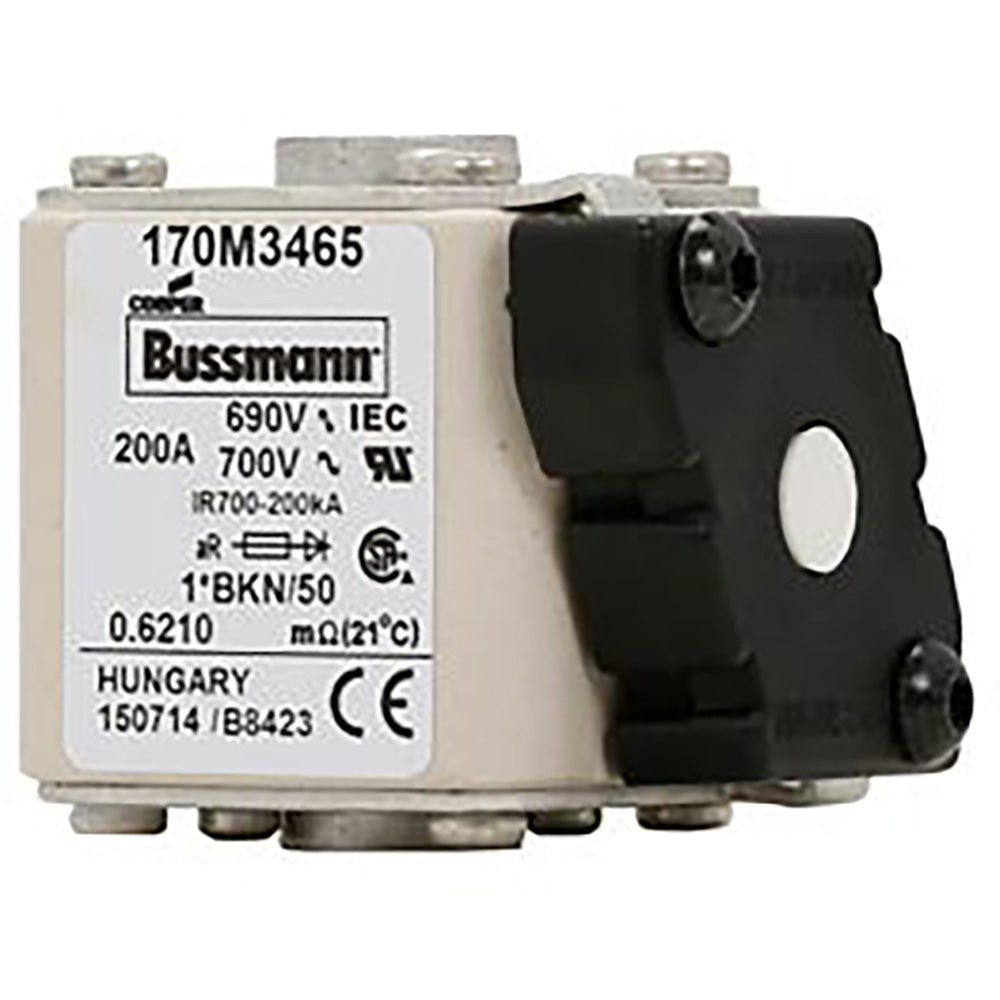

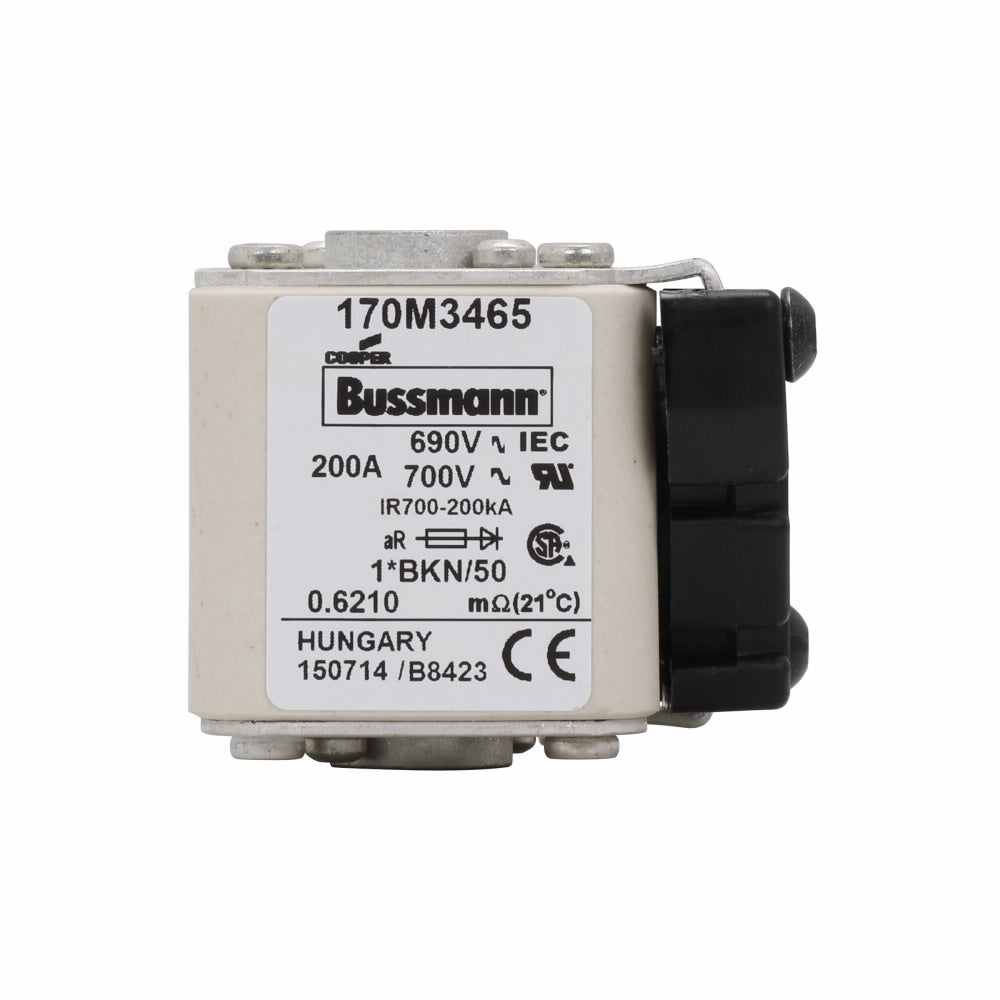

170M3465 is a high speed square body fuse from Eaton's Bussmann series designed for reliable circuit protection.This fuse features a 200 ampere rating and a voltage rating of 690 volts (IEC) / 700 volts (UL). It has a high interrupt rating of 200 kAIC, ensuring robust breaking capacity for demanding applications. The fuse includes a center fuse status indicator for easy visual inspection. It is a size 1, Type BKN/K fuse with a flush mounting style and blade terminals.
- Amperage Rating: 200 A
- Voltage Rating: 690 V (IEC), 700 V (UL)
- Interrupt Rating: 200 kAIC
- Fuse Type: High Speed Square Body
- Size: 1
- Class: aR
- Mounting Style: Flush
- Terminal Type: Blade
- Fuse Indicator: Center fuse status indicator
- Breaking Capacity: 200 kA
- Certifications: UL Recognized, IEC Rated
Specifications
- Part Number: 170M3465
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Type : BKN
- Voltage : 690
- Amperage : 200
- Connection : Flush End Contact
- Class Rating : aR
- Velocity : High Speed
Product Data
- UPC : 051712799232
- GTIN : 00051712799232
- Dimensions : 60 mm x 50 mm x 43 mm (Length/Depth x Height x Width)
- Weight : 0.6118
