Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description

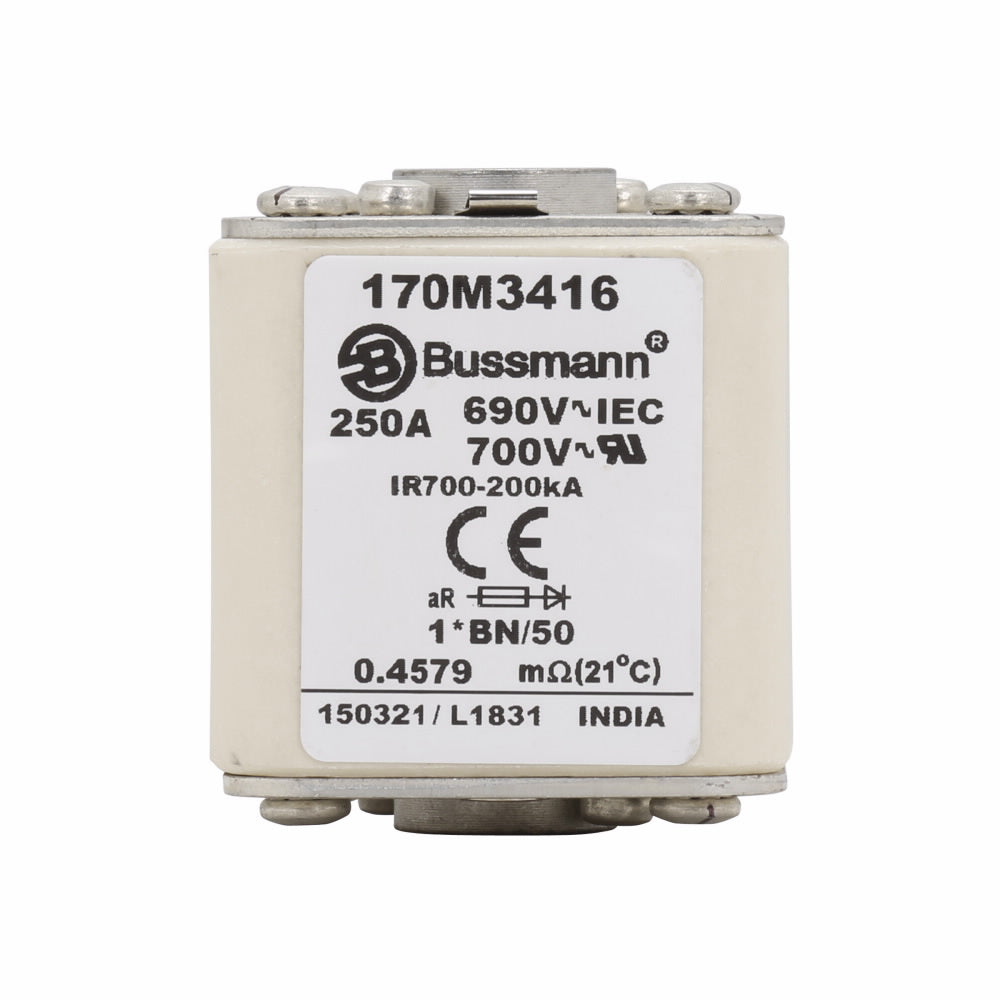

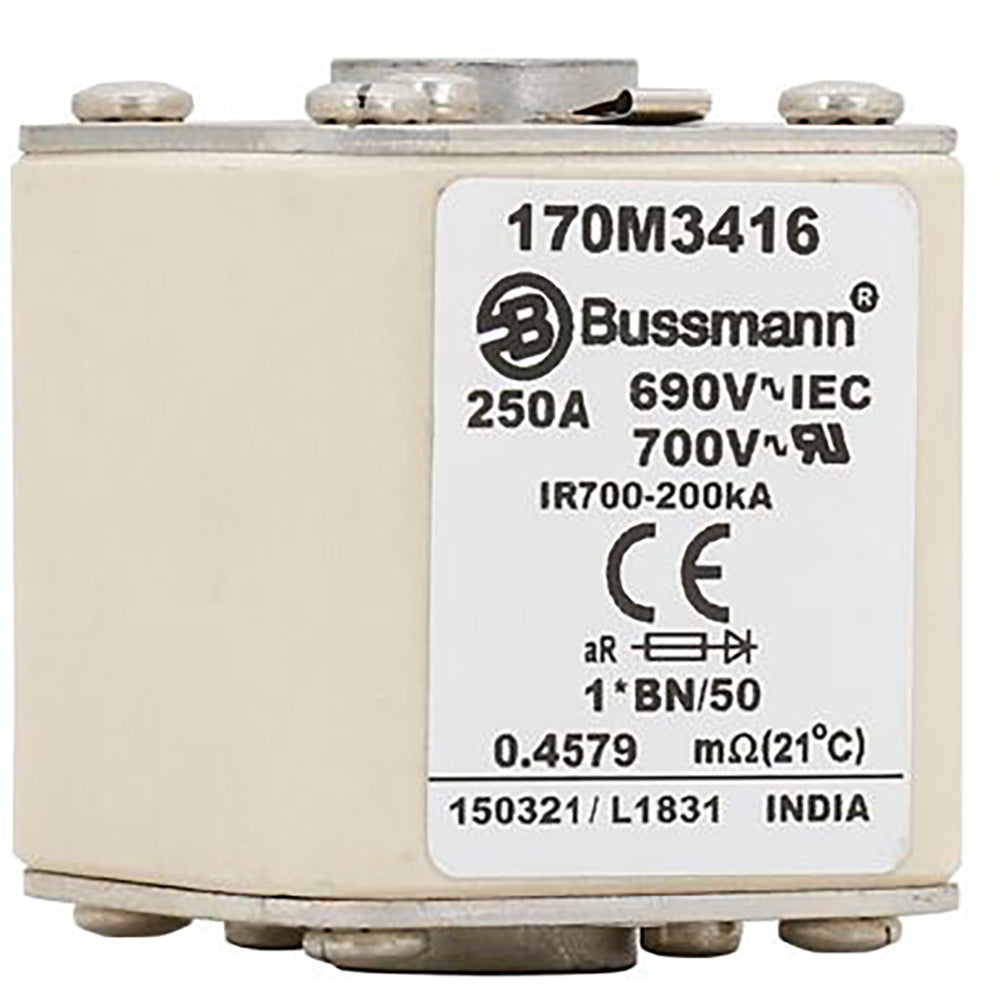

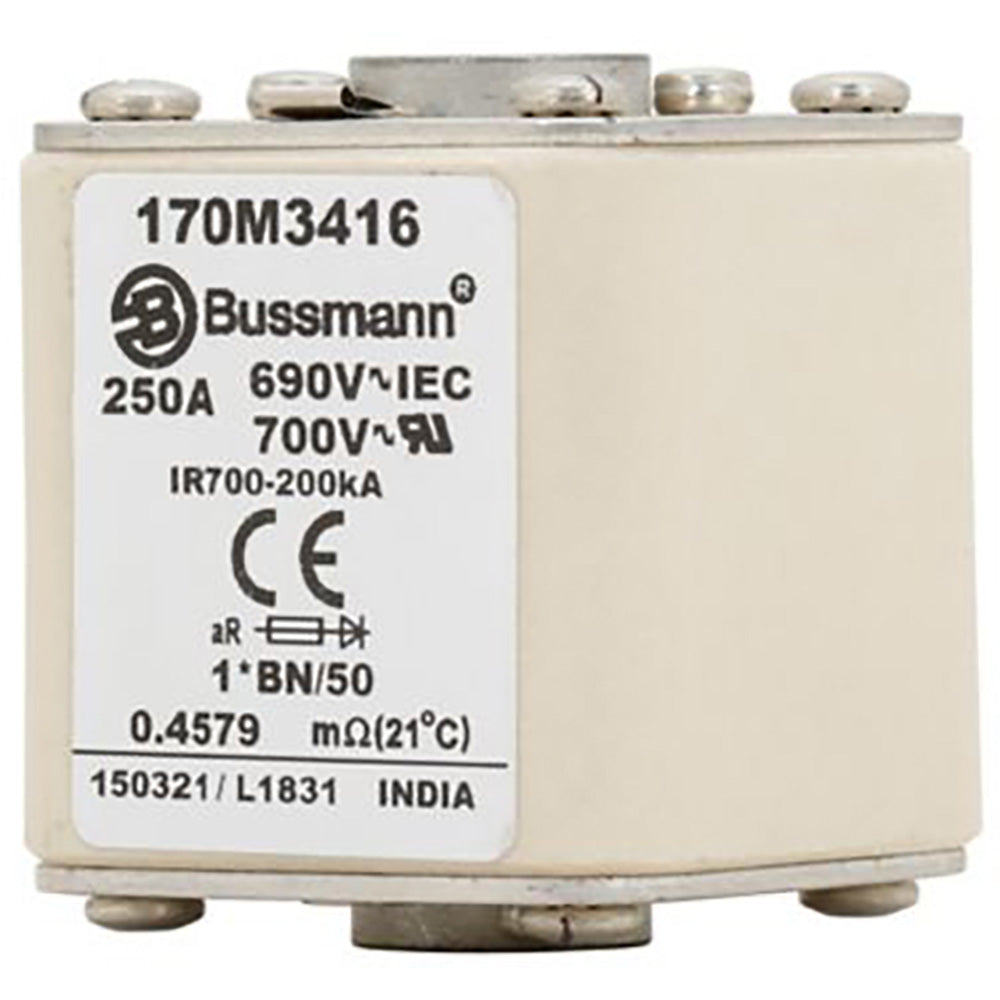

170M3416
170M3416 is an Eaton Bussmann series high speed square body fuse designed for industrial and electrical applications.This fuse features a 250 ampere rating and a voltage rating of 690 volts AC (700V UL). It has a high interrupting rating of 200,000 amperes (200 kAIC) at 690 VAC, ensuring reliable protection in demanding environments. The fuse includes a top fuse status indicator for easy visual inspection and uses a screw mounting style with threaded socket termination.
- Key Specifications
- Manufacturer: Eaton Bussmann
- Part Number: 170M3416
- Current Rating: 250A
- Voltage Rating: 690 VAC (700V UL)
- Interrupting Rating: 200 kAIC at 690 VAC
- Body Style: Square Body
- Mounting Type: Screw Mount
- Fuse Status Indicator: Top Mounted
- Fuse Class: aR (High Speed)
- Part Number: 170M3416
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Type : NH
- Voltage : 690
- Amperage : 250
- AIC rating : 200kA@690Vac
- Connection : Flush
- Class Rating : aR
- UPC : 051712256025
- GTIN : 00051712256025
- Dimensions : 155 mm x 45 mm x 90 mm (Length/Depth x Height x Width)
- Weight : 0.56656667
