Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description
170M3119

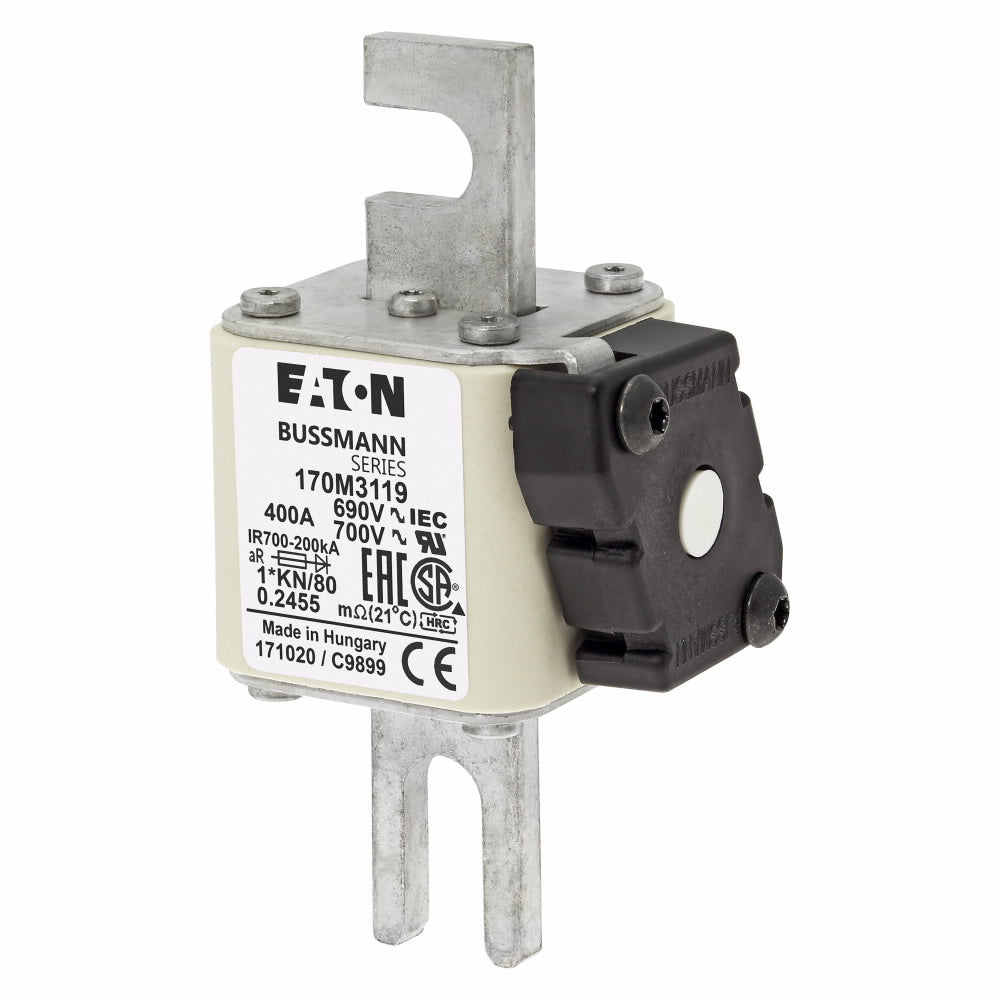

170M3119 is a high speed square body fuse from Eaton Bussmann, designed for reliable circuit protection in demanding electrical applications. This fuse features a robust construction and fast-acting performance for critical power distribution systems. The 170M3119 fuse is rated for 400A current and 690V AC, with a breaking capacity of 200kA. It is a single-pole, bolt-mount fuse with a center fuse status indicator and a compact DIN 1 size. The fuse is classified as aR and is suitable for use in IEC and DIN compliant systems.
- Amperage Rating: 400A
- Voltage Rating: 690V AC
- Breaking Capacity: 200kA
- Mounting Type: Bolt Mount
- Fuse Type: Square Body
- Fuse Class: aR
- Indicator: Center Fuse Status Indicator
- Standards: IEC, DIN
- Dimensions: 45 x 59 x 104 mm
- Series: Bussmann High Speed
Specifications
- Part Number: 170M3119
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Type : NH
- Voltage : 690
- Amperage : 400
- AIC rating : 200kA@690Vac
- Connection : Knife Blade
- Class Rating : aR
Product Data
- UPC : 051712254892
- GTIN : 00051712254892
- Dimensions : 305 mm x 65 mm x 145 mm (Length/Depth x Height x Width)
- Weight : 0.7291
