Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description

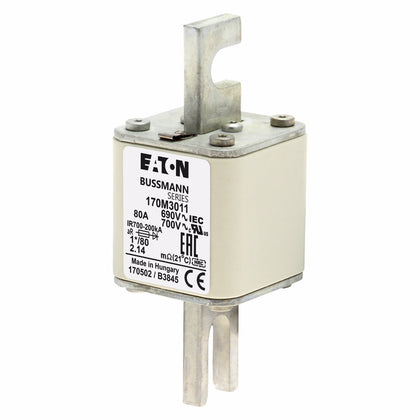

170M3011
170M3011 is an Eaton Bussmann series high speed square body fuse designed for reliable circuit protection.This fuse features an 80 ampere rating and is rated for 690 volts (IEC) and 700 volts (UL) AC operation. It has a single pole configuration with blade end terminals and a square body style. The fuse includes a top fuse status indicator for easy visual inspection and is classified as Class aR. It meets DIN 43653 mounting standards and offers a high interrupt rating of 200 kAIC. The fuse is CE marked, RoHS compliant, IEC rated, and UL recognized.
- Key Specifications
- Amperage: 80 A
- Voltage Rating: 690 V (IEC), 700 V (UL)
- Poles: 1
- Mounting Type: DIN 43653 Stud
- Terminal Type: Blade End
- Interrupt Rating: 200 kAIC
- Fuse Size: 1*
- Fuse Status Indicator: Top Visual Indicator
- Series: Bussmann 170M
- Fuse Class: aR
- Certifications: CE Marked, RoHS Compliant, IEC Rated, UL Recognized
Specifications
- Part Number: 170M3011
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Type : NH
- Voltage : 690
- Amperage : 80
- AIC rating : 200kA@690Vac
- Connection : Knife Blade
- Class Rating : aR
Product Data
- UPC : 05171225456
- GTIN : 00051712254564
- Dimensions : 305 mm x 65 mm x 145 mm (Length/Depth x Height x Width)
- Weight : 0.81036667
