Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description
170M1568D

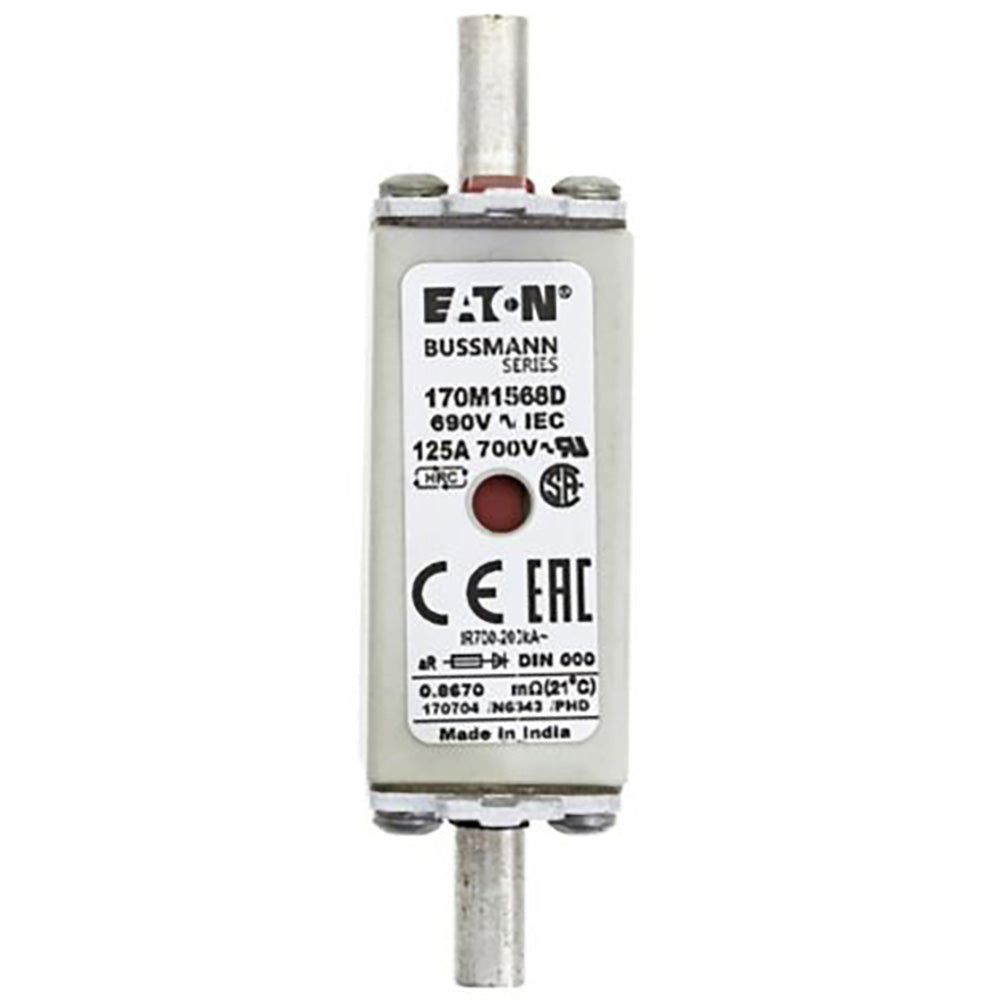

170M1568D is an Eaton Bussmann series high speed square body fuse designed for reliable circuit protection in demanding electrical applications. This fuse features a robust ceramic construction and a square body design for secure mounting and efficient heat dissipation. The 170M1568D fuse is rated for 125A continuous current and 690V AC, with a high interrupt rating of 200kA, making it suitable for industrial and commercial power distribution systems. It utilizes a DIN 43-620 blade end for secure connection and includes a combination fuse status indicator for easy monitoring. The fuse is recognized for both UL and IEC standards, ensuring compliance with international safety requirements.
- Amperage Rating: 125 A
- Voltage Rating: 690 V AC (IEC), 700 V AC (UL)
- Interrupt Rating: 200 kA
- Mounting Type: Stud
- Termination Style: Bolt Down
- Body Style: Square Body
- Series: Bussmann
- Material: Ceramic
- Indicator: Combination fuse status indicator
- Certifications: UL Recognized, IEC Rated
- Compliance: CE Marked, RoHS Compliant
- Dimensions: 79 mm x 21 mm x 51 mm
Specifications
- Part Number: 170M1568D
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Type : NH
- Voltage : 690
- Amperage : 125
- AIC rating : 200kA@690Vac
- Connection : Knife Blade
- Class Rating : gR
Product Data
- UPC : 05171233453
- GTIN : 00051712334532
- Dimensions : 79 mm x 51 mm x 21 mm (Length/Depth x Height x Width)
- Weight : 0.31418
