Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description
170M1564D

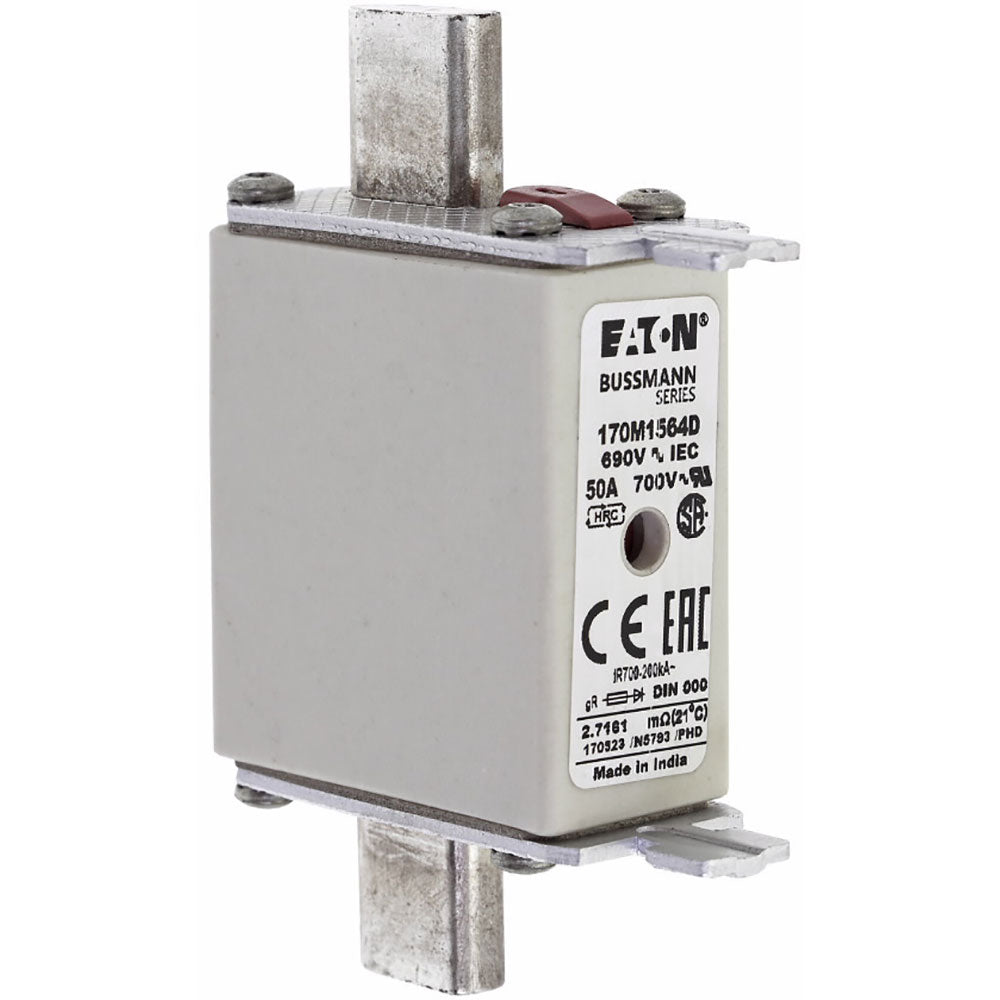

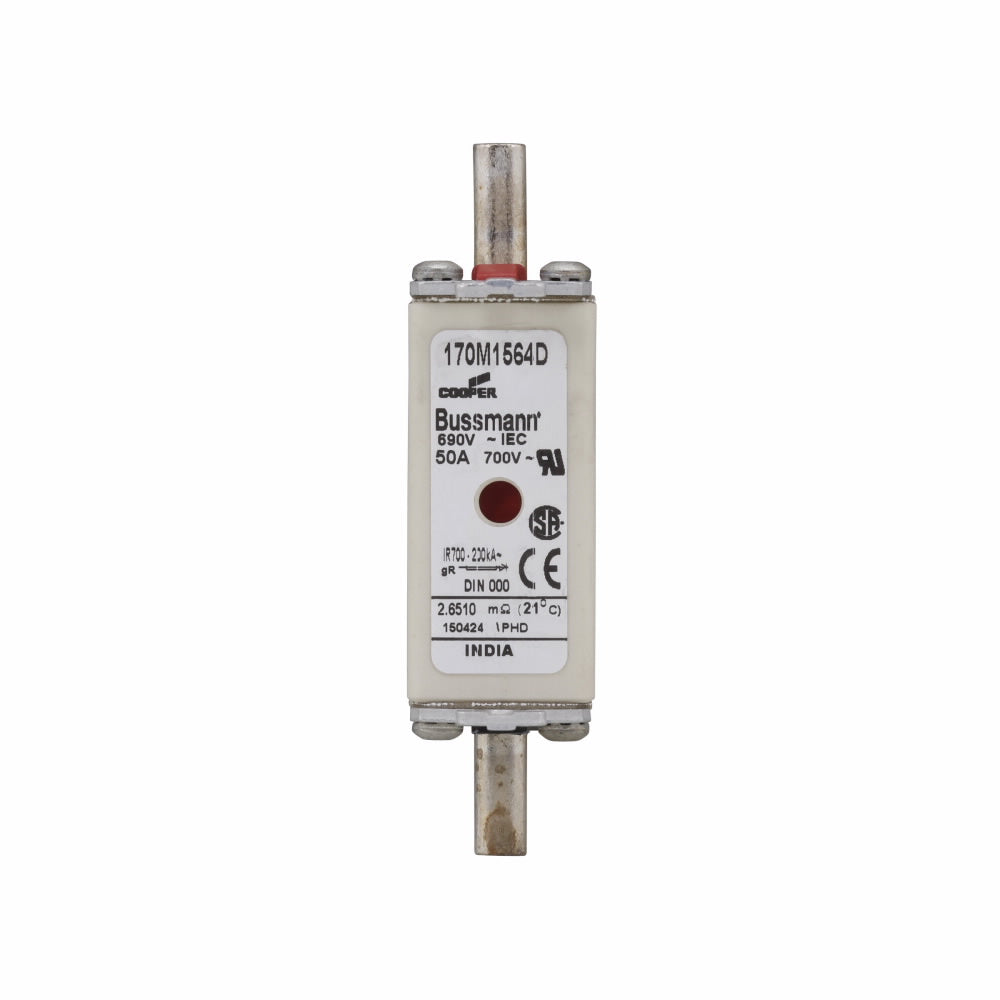

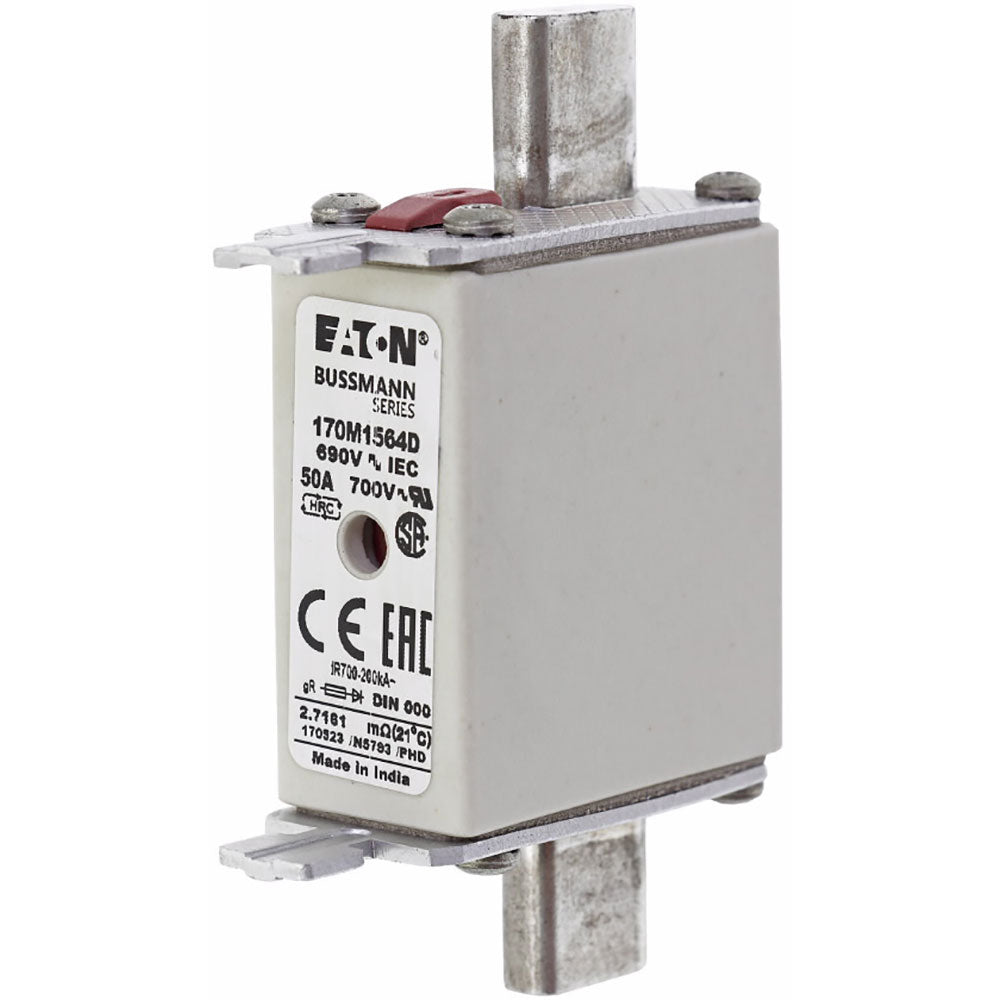

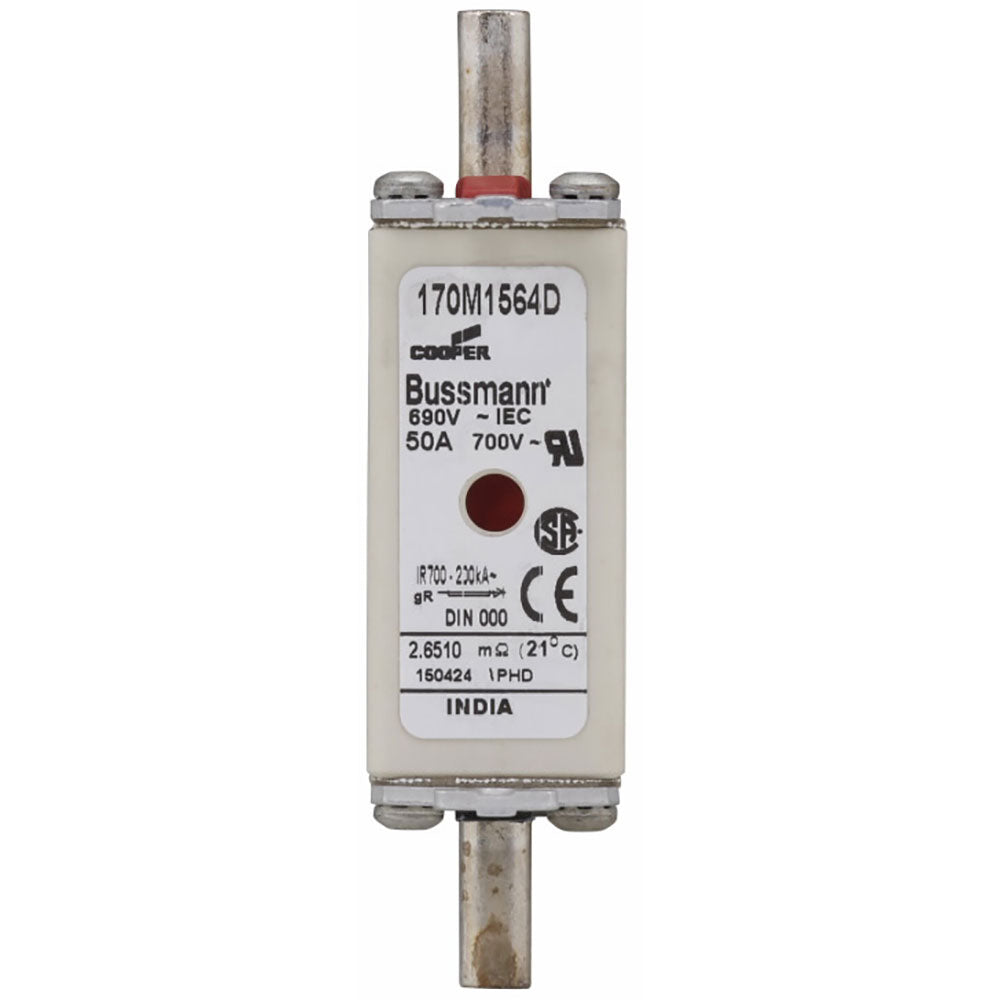

170M1564D is a high-speed, low-voltage fuse from the Eaton Bussmann series, designed for reliable circuit protection in demanding electrical environments. This fuse features a square body construction and is rated for 50A at 690V AC, making it suitable for a wide range of industrial and commercial applications. The 170M1564D fuse is engineered with a gR class rating and offers a breaking capacity of 200kA at 690V AC. It includes dual indicators and live gripping lugs for enhanced safety and ease of use. The fuse complies with DIN 000, DIN, and IEC standards, ensuring compatibility with international electrical systems.
- Amperage Rating: 50A
- Voltage Rating: 690V AC
- Interrupt Rating: 200kA @ 690V AC
- Body Type: Square
- Class: gR
- Standards: DIN 000, DIN, IEC
- Indicators: Dual
- Mounting: Live gripping lugs
- Series: Bussmann
- Application: Low Voltage
- Frequency Range: 45 to 1000 Hz
- Weight: 135.8g
Specifications
- Part Number: 170M1564D
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Type : NH
- Voltage : 690
- Amperage : 50
- AIC rating : 200kA@690Vac
- Connection : Knife Blade
- Class Rating : gR
Product Data
- UPC : 051712334754
- GTIN : 00051712334754
- Dimensions : 79 mm x 51 mm x 21 mm (Length/Depth x Height x Width)
- Weight : 0.31234
