Product Info
- Manufacturer:Eaton
- Sub-Category:Medium Voltage Fuse
Description
17.5CAV4

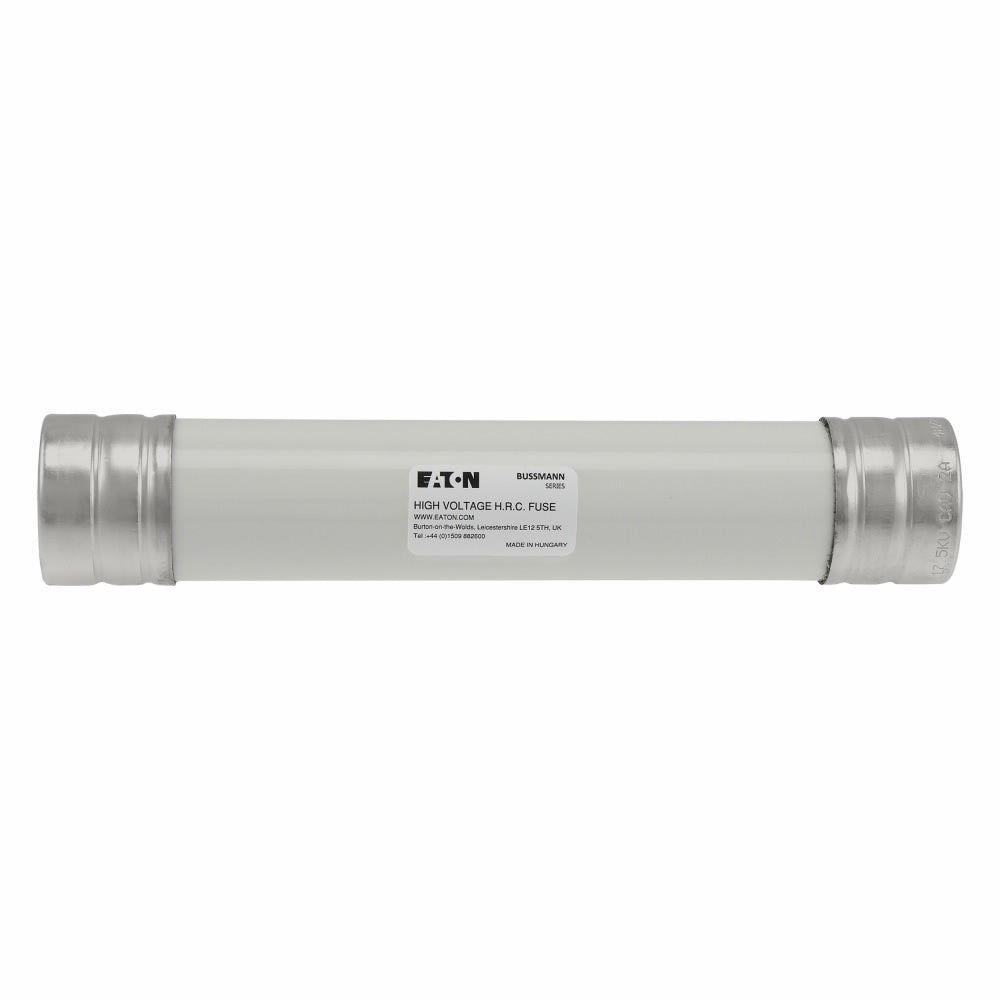

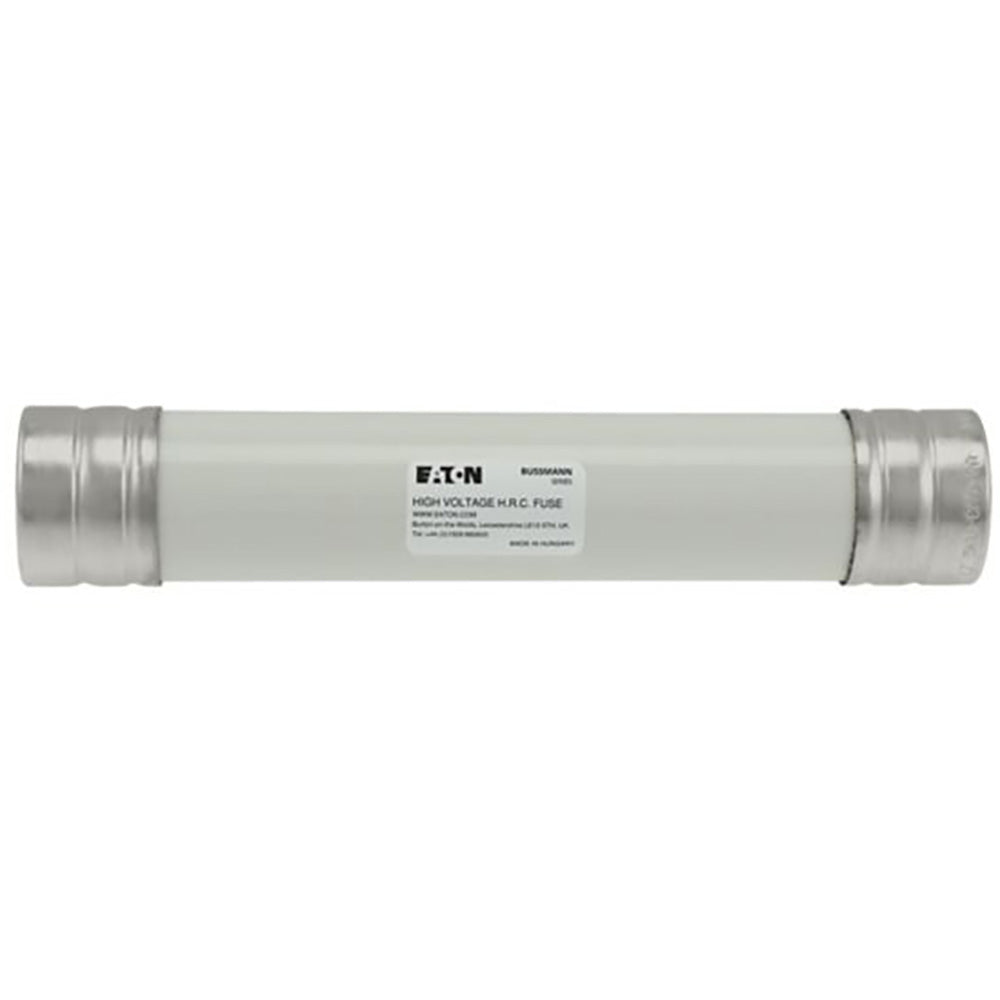

17.5CAV4 is a medium voltage cartridge fuse from Eaton's Bussmann series designed for auxiliary transformer protection.
This VT fuse-link features a 4 ampere current rating and a voltage rating of 17.5 kVAC. It measures 220 x 41.3 mm and is intended for back-up protection applications. The fuse is non-indicating and requires a holder for mounting. It complies with IEC standards and is part of the 8CAV fuse size group.
- Key Specifications
- Current Rating: 4 Amps
- Voltage Rating: 17.5 kVAC
- Fuse Type: Cartridge (VT fuse-link)
- Fuse Size: 220 x 41.3 mm
- Mounting Type: Requires Holder
- Application: Protection of Auxiliary Transformers
- Fuse Indicator: Non-Indicating
- Series: Bussmann VT Medium Voltage
- Standards: IEC Compliant
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: 17.5CAV4
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Medium Voltage Fuse
- Family : CAV
- Type : CAV
- Voltage : 17500
- Amperage : 4
- AIC rating : [email protected]
- Diameter : 1.63
- Class Rating : E
- Barrels : 1
- Clip Center : 7.46
Product Data
- UPC : 05171222625
- GTIN : 00051712226257
- Dimensions : 221 mm x 41 mm x 41 mm (Length/Depth x Height x Width)
- Weight : 1.61
