Product Info
- Manufacturer:Eaton
- Sub-Category:Fuse Block
Description
16530-3

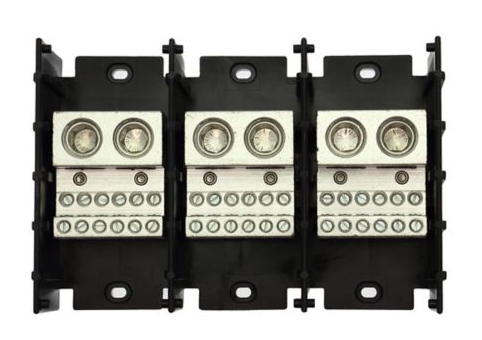

16530-3 is a three-pole power distribution block from the Eaton Bussmann series, designed for reliable electrical connections in industrial and commercial applications. This block supports high current loads and is built for durability and safety in demanding environments. The Eaton Bussmann 16530-3 power distribution block features a molded thermoplastic construction with a black finish, providing excellent insulation and resistance to harsh conditions. It is rated for 760 amps and 600 volts AC/DC, making it suitable for a wide range of power distribution needs. The block is UL Recognized and meets flammability standards UL 94-V0.
- Part Number: 16530-3
- Manufacturer: Eaton Bussmann
- Type: Power Distribution Block
- Series: 165
- Current Rating: 760 A
- Voltage Rating: 600 V AC/DC
- Poles: Three-pole
- Material: Molded Thermoplastic
- Color: Black
- Flammability Rating: UL 94-V0
- UL Recognized
- Wire Gauge Range: 14 AWG to 4 AWG
Specifications
- Part Number: 16530-3
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Fuse Block
- Type : 165
- Voltage : 600
- Amperage : 760
Product Data
- UPC : 05171214902
- GTIN : 00051712149020
- Country of Origin : Mexico
- Dimensions : 5.48 in x 2.89 in x 8 in (Length/Depth x Height x Width)
- Weight : 2.62
- Certification : CSA Class 6228-01, UL 1059
